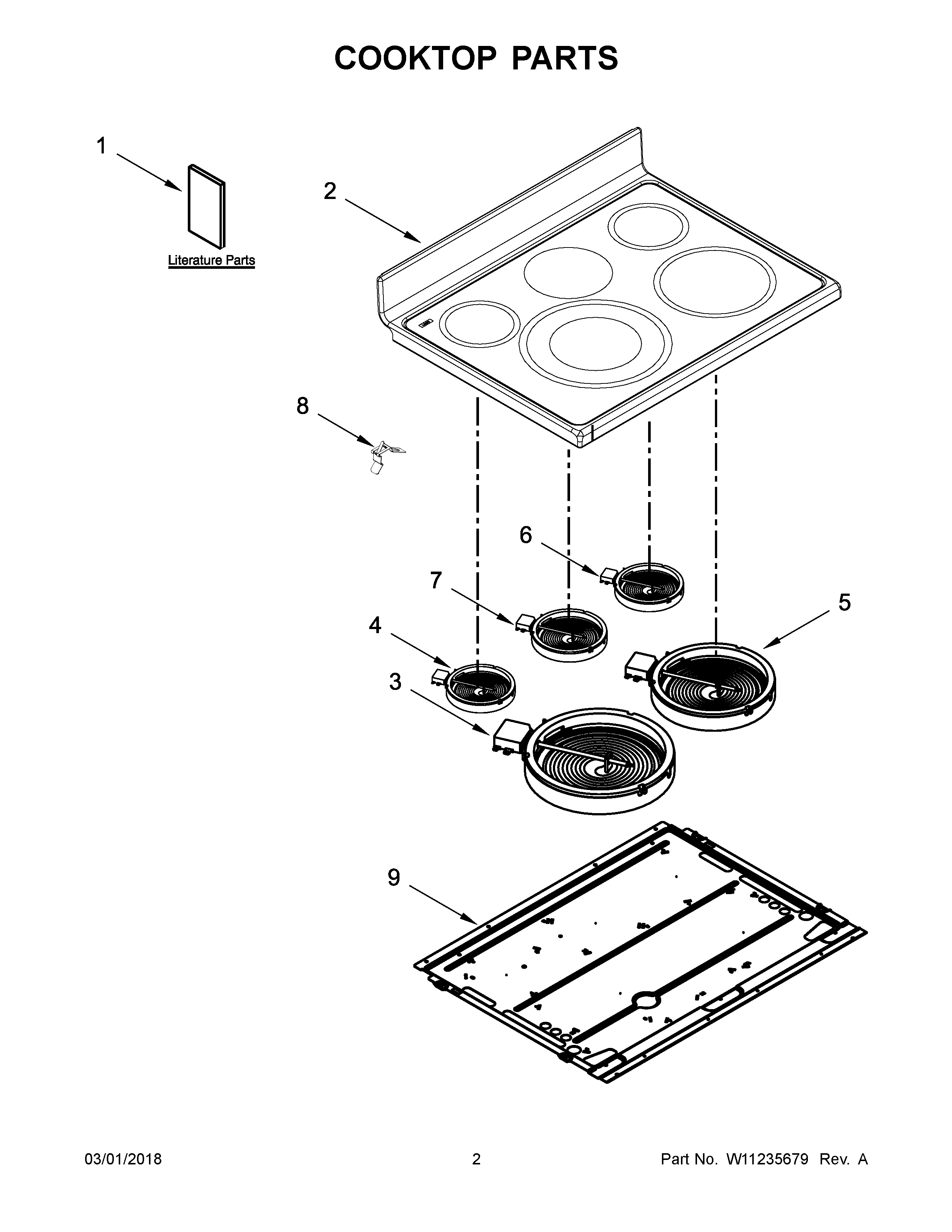

WGE745C0FH01 02 – COOKTOP PARTS

WGE745C0FH01 02 – COOKTOP PARTS

Written by

in

WGE745C0FH01 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIWIRING HARNESS PARTS, SCREW, GROUND
NIWPL 8019P01360
NIWIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTER
NIW11134679 Whirlpool Wire Harness
NIW11172427 Whirlpool Wire Harness
NIW11172428 Whirlpool Wire Harness
NIW11190451 Whirlpool Wire Harness
NIW11217844 Whirlpool Wire Harness
NIW11172531 Whirlpool Wire Harness
1AGUIDE, USE & CARE
1BSHEET, TECH
1INSTRUCTIONS, INSTALLATION
1CSAFER COOKING TIPS (ENGLISH
1DSafer Cooking Tips (French)
1EDIAGRAM, WIRING
2W10877558 Whirlpool Cooktop
2AW10877560 Whirlpool Cooktop Assembly
3W11563195 Whirlpool Surface Element
4WPW10342780 Whirlpool Surface Element
5W11517959 Whirlpool Electric Range Radiant Surface Element
6ELMNT-SURF
7W11041453 Whirlpool Surface Element
8WPW10225448 Whirlpool Spring Assembly
9WPW10260946 Whirlpool Panel
