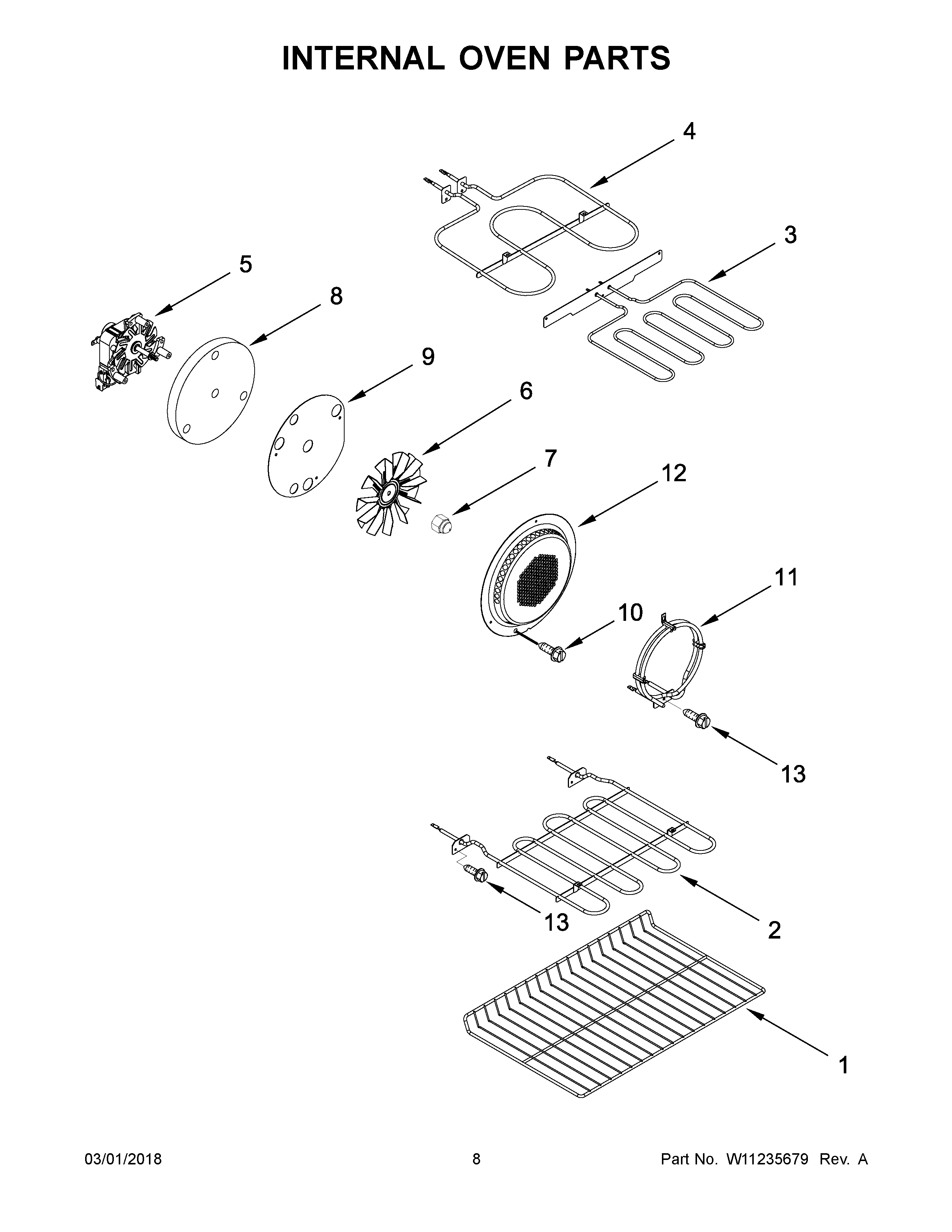

WGE745C0FH01 05 – INTERNAL OVEN PARTS

WGE745C0FH01 05 – INTERNAL OVEN PARTS

Written by

in

WGE745C0FH01 05 – INTERNAL OVEN PARTS

Products

PositionProduct
1WPW10179152 Whirlpool Rack Oven
2WPW10611615 Whirlpool Broil Element
3W11662148 Whirlpool Bake Element
4W11716849 Whirlpool Broil Element
5W11235883 Whirlpool Fan Motor
6W10819914 Whirlpool Convection Fan
7W10794042 Whirlpool Nut
8W10274268 Whirlpool Insulation
9W10339476 Whirlpool Bracket Mounting
10W10850807 Whirlpool Screw
11W10271639 Whirlpool Element
12WPW10160821 Whirlpool Fan Cover
13SCREW
