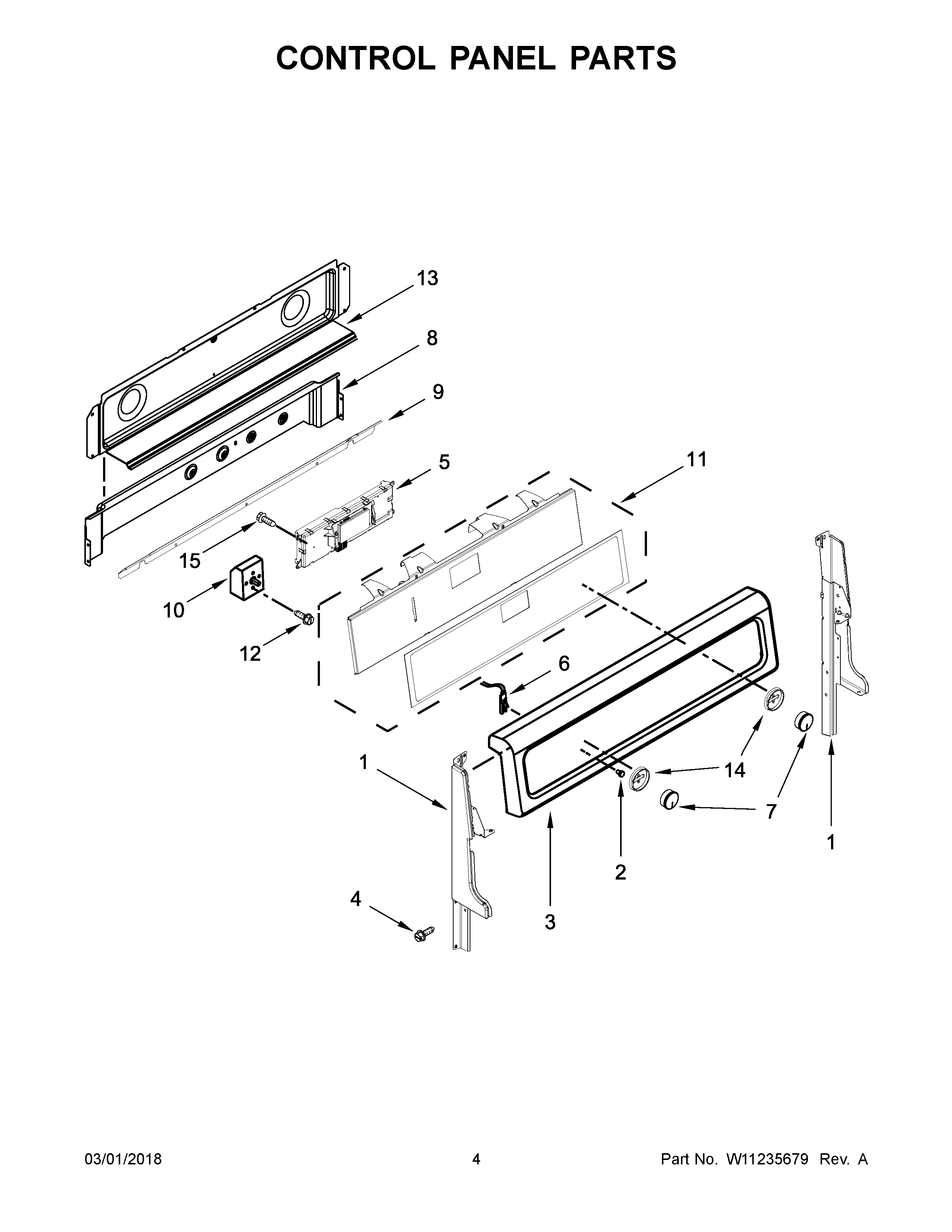

WGE745C0FS01 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W10319109 Whirlpool Endcap Panel
1B	SUPPORT, BACK GUARD (RIGHT HAND)
1C	W10319112 Whirlpool Panel Endcap
1A	W10319110 Whirlpool Endcap Panel
2	WP3196068 Whirlpool Light Lens
3A	WPW10318552 Whirlpool Control Panel
3	WPW10318551 Whirlpool Control Panel
3B	WPW10318550 Whirlpool Control Panel
4	SCREW
5	W10877730 Whirlpool Electronic Control Board
6	Light, Indicator
7	W11517335 Whirlpool Knob Assembly
8	W10278697 Whirlpool Vent Shield Assembly
10	W11129442 Whirlpool Surface Infinite Element Switch
10A	W10917724 Whirlpool Infinite Switch
10C	SWITCH, INFINITE (RIGHT REAR)
10B	WPW10312185 Whirlpool Infinite Switch
11B	W10877769 Whirlpool Membrane Switch
11	W10877766 Whirlpool Membrane Switch
11A	W10877767 Whirlpool Membrane Switch
12	W10674068 Whirlpool Screw
13	W10776098 Whirlpool Rear Cover
14	W10850042 Whirlpool Knob Bezel
15	SCREW
