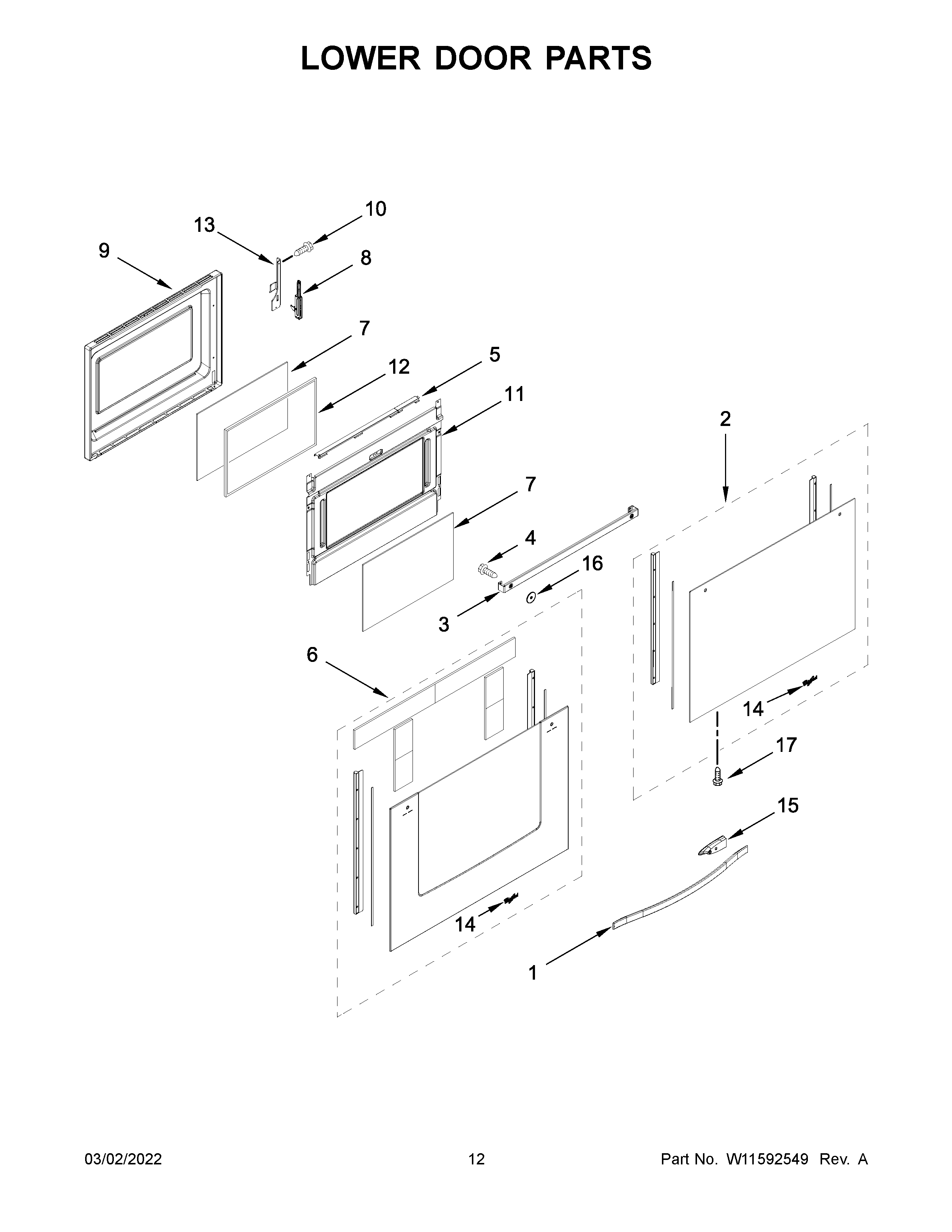

WGE745C0FS05 07 – LOWER DOOR PARTS

Products

Position	Product
1	WPW10618239 Whirlpool Door Handle
2A	W11600201 Whirlpool Door Glass
2	W11600200 Whirlpool Door Glass
3	WPW10294695 Whirlpool Mounting Bracket
3A	W10575689 Whirlpool Mounting Bracket
4	WPW10317886 Whirlpool Screw
5	WPW10272594 Whirlpool Window Frame
6	W11600199 Whirlpool Door Glass
7	WP9757706 Whirlpool Door Inner Glass
8	WPW10335434 Whirlpool Door Hinge
8A	WPW10335433 Whirlpool Door Hinge
9	WPW10272698 Whirlpool Dishwasher Door Liner
10	WP4449743 Whirlpool Screw
11	W10340464 Whirlpool Retainer
12	INSULATION, DOOR
13A	WPW10272328 Whirlpool Hinge Receptacle
13	WPW10272329 Whirlpool Hinge Receptacle
14	W11178521 Whirlpool Dishwasher Nameplate
15	WPW10410341 Whirlpool Spacer
15A	WPW10429492 Whirlpool Spacer
16	WASHER, FIBER
17	W11690596 Whirlpool Screw
