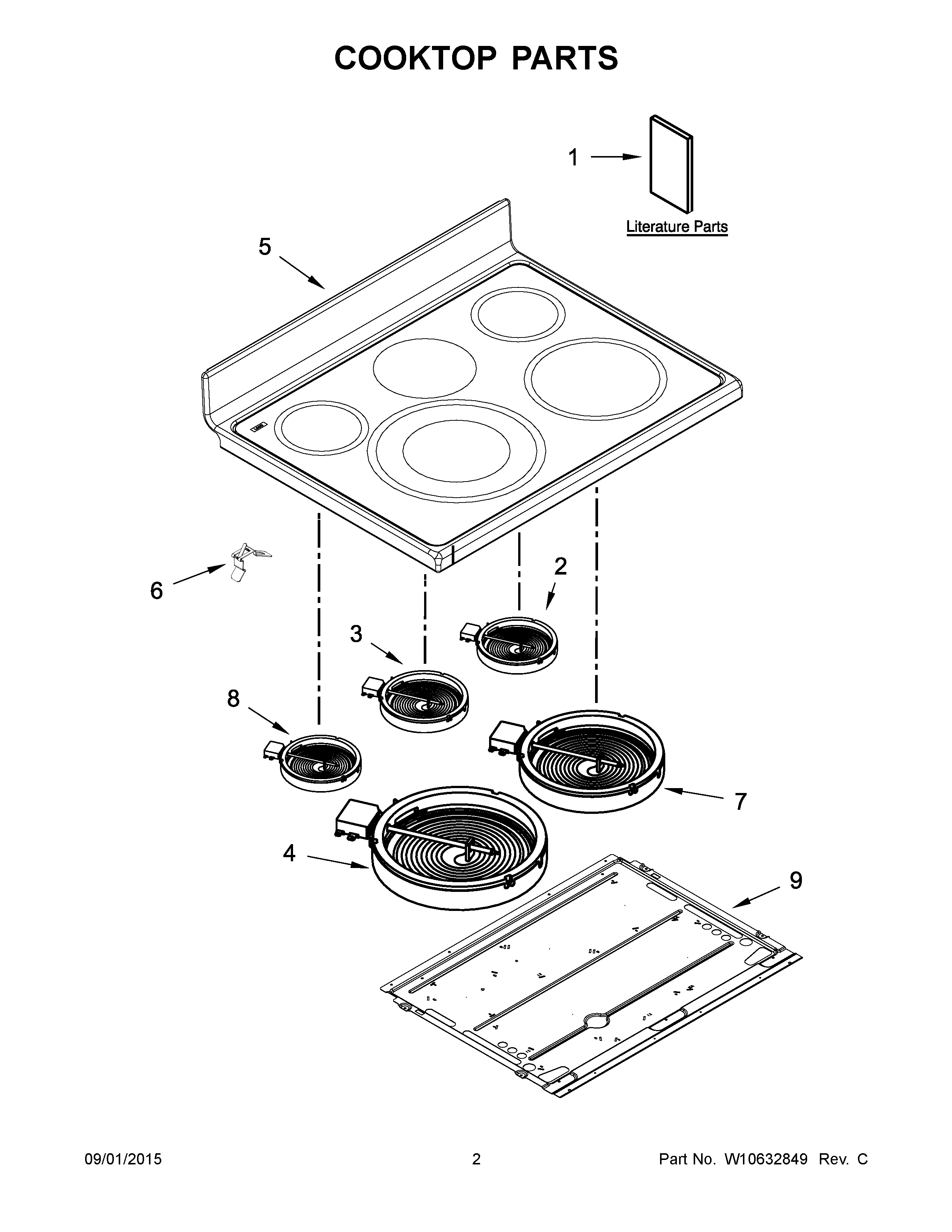

WGE755C0BS00 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10406501 Whirlpool Wire Harness Harness, Infinite Switch (Right)
NI	W10219255 Whirlpool Wire Harness
NI	W10457082 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTER
NI	W10537938 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, SCREW, GROUND
NI	W10225701 Whirlpool Sensor Wire Harness
NI	WPL 8019P01360
1C	SAFER COOKING TIPS (ENGLISH
1D	Safer Cooking Tips (French)
1B	TECH SHEET
1A	GUIDE, USE AND CARE
1	INSTRUCTIONS, INSTALLATION
2	ELMNT-SURF
3	WP9762851 Whirlpool Surface Element
4	WPW10535150 Whirlpool Surface Element
5A	W10622125 Whirlpool Cooktop Assembly
5	W10622126 Whirlpool Cooktop
6	WPW10225448 Whirlpool Spring Assembly
7	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
8	WPW10270604 Whirlpool Surface Element
9	WPW10260946 Whirlpool Panel
