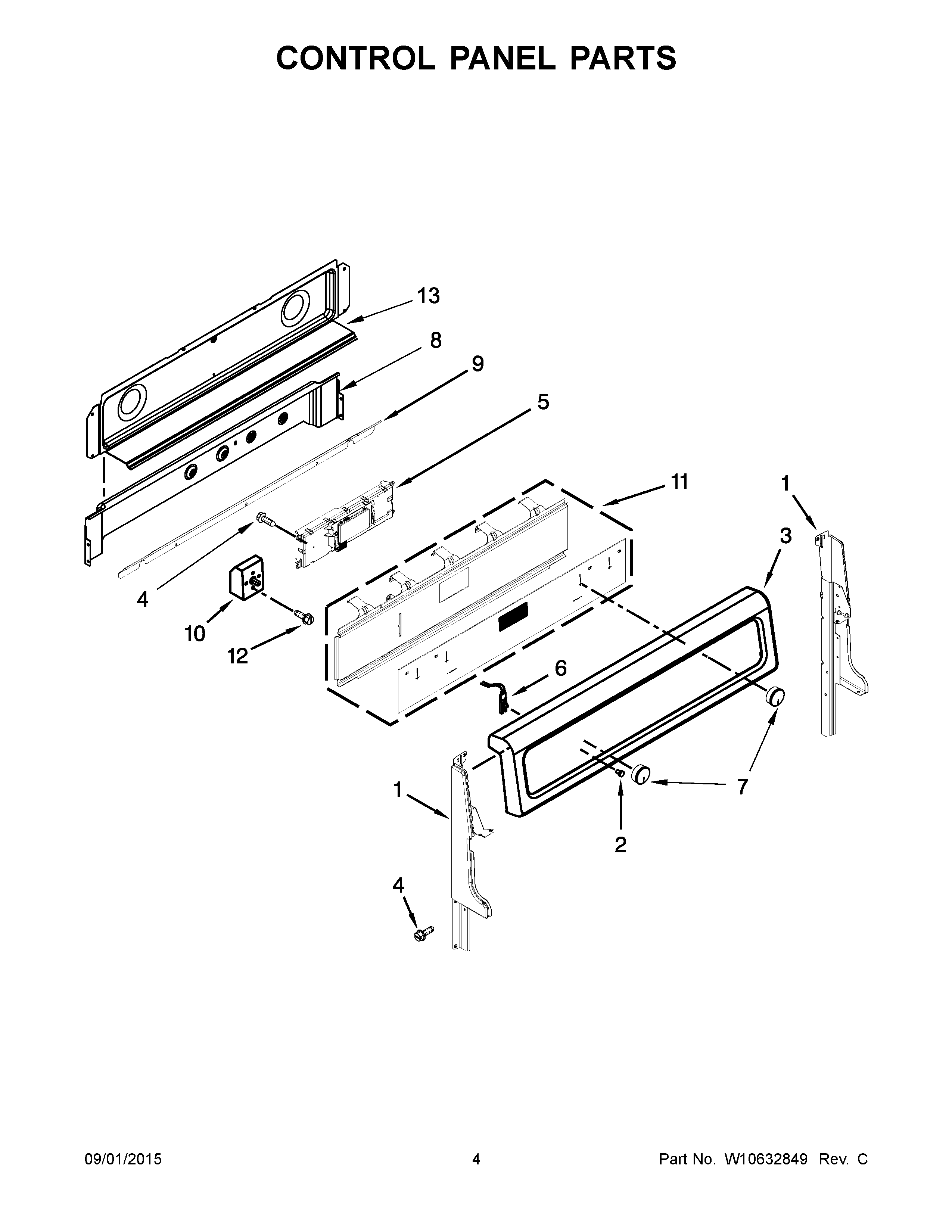

WGE755C0BS00 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W10319109 Whirlpool Endcap Panel
1B	SUPPORT, BACK GUARD (RIGHT HAND)
1C	W10319112 Whirlpool Panel Endcap
1A	W10319110 Whirlpool Endcap Panel
2	WP3196068 Whirlpool Light Lens
3A	WPW10318552 Whirlpool Control Panel
3	WPW10318551 Whirlpool Control Panel
3B	WPW10318550 Whirlpool Control Panel
4	Screw
5	WPW10539961-includeCORE Whirlpool WPW10539961 Gas Range Electronic Control Board
6	Light, Indicator
7	WPW10437088 Whirlpool Burner Knob
8	W10278697 Whirlpool Vent Shield Assembly
10	WPW10441696 Infinite Switch (Right) Front)
10A	WPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
10B	SWITCH, INFINITE (RIGHT REAR)
11	W10528783 Whirlpool Membrane Switch
11A	W10528784 Whirlpool Membrane Switch
12	WPL 7101P30960
13	W10296773 Whirlpool Rear Cover
