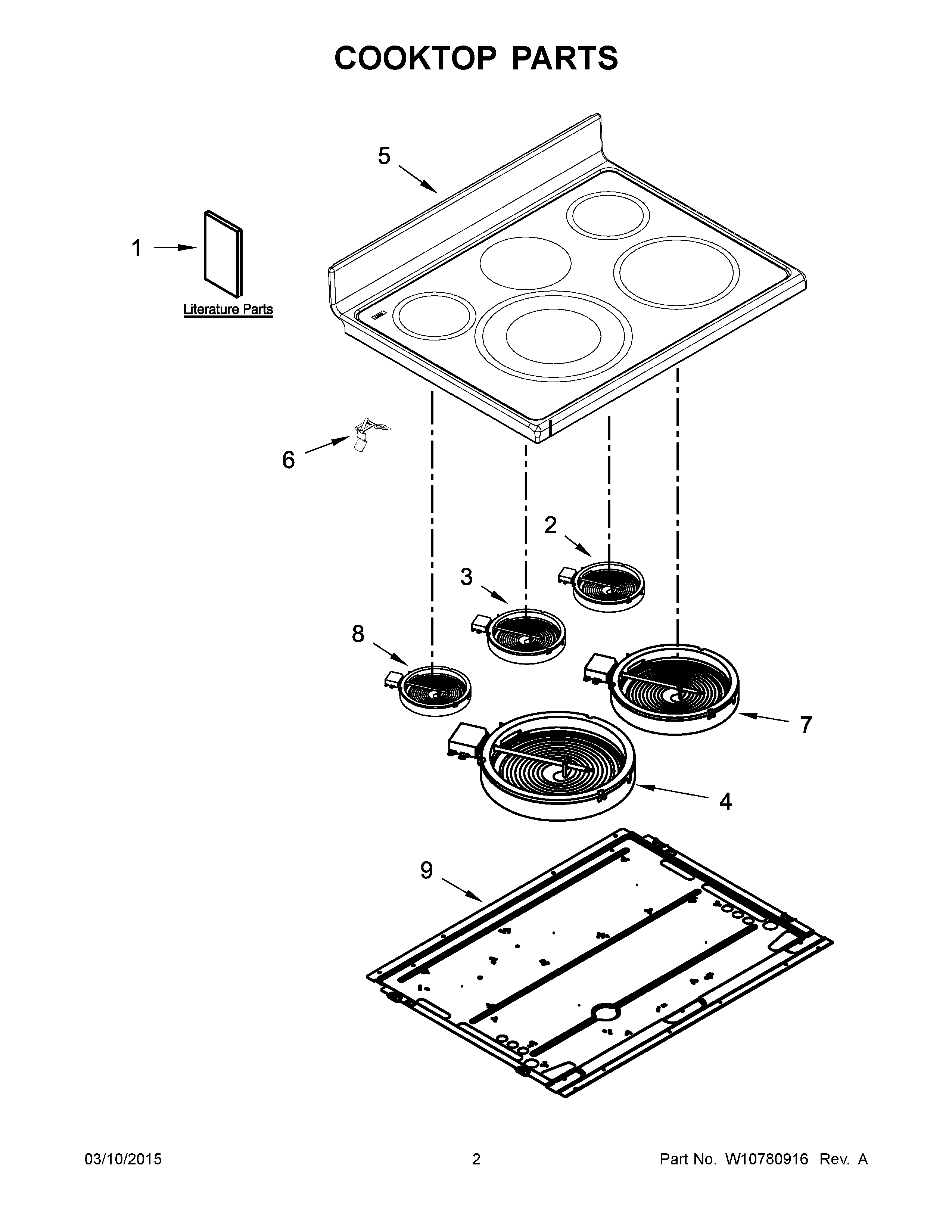

WGE755C0BS01 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10406501 Whirlpool Wire Harness Harness, Infinite Switch (Right)
NI	W10219255 Whirlpool Wire Harness
NI	W11157775 Whirlpool Wire Harness
NI	W10457082 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTER
NI	W10537938 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, SCREW, GROUND
NI	W10225701 Whirlpool Sensor Wire Harness
NI	WPL 8019P01360
1	INSTRUCTIONS, INSTALLATION
1C	SAFER COOKING TIPS (ENGLISH
1A	GUIDE, USE & CARE
1B	SHEET, TECH
1D	Safer Cooking Tips (French)
2	ELMNT-SURF
3	WP9762851 Whirlpool Surface Element
4	WPW10535150 Whirlpool Surface Element
5	W10622126 Whirlpool Cooktop
5A	W10622125 Whirlpool Cooktop Assembly
6	WPW10225448 Whirlpool Spring Assembly
7	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
8	WPW10270604 Whirlpool Surface Element
9	WPW10260946 Whirlpool Panel
