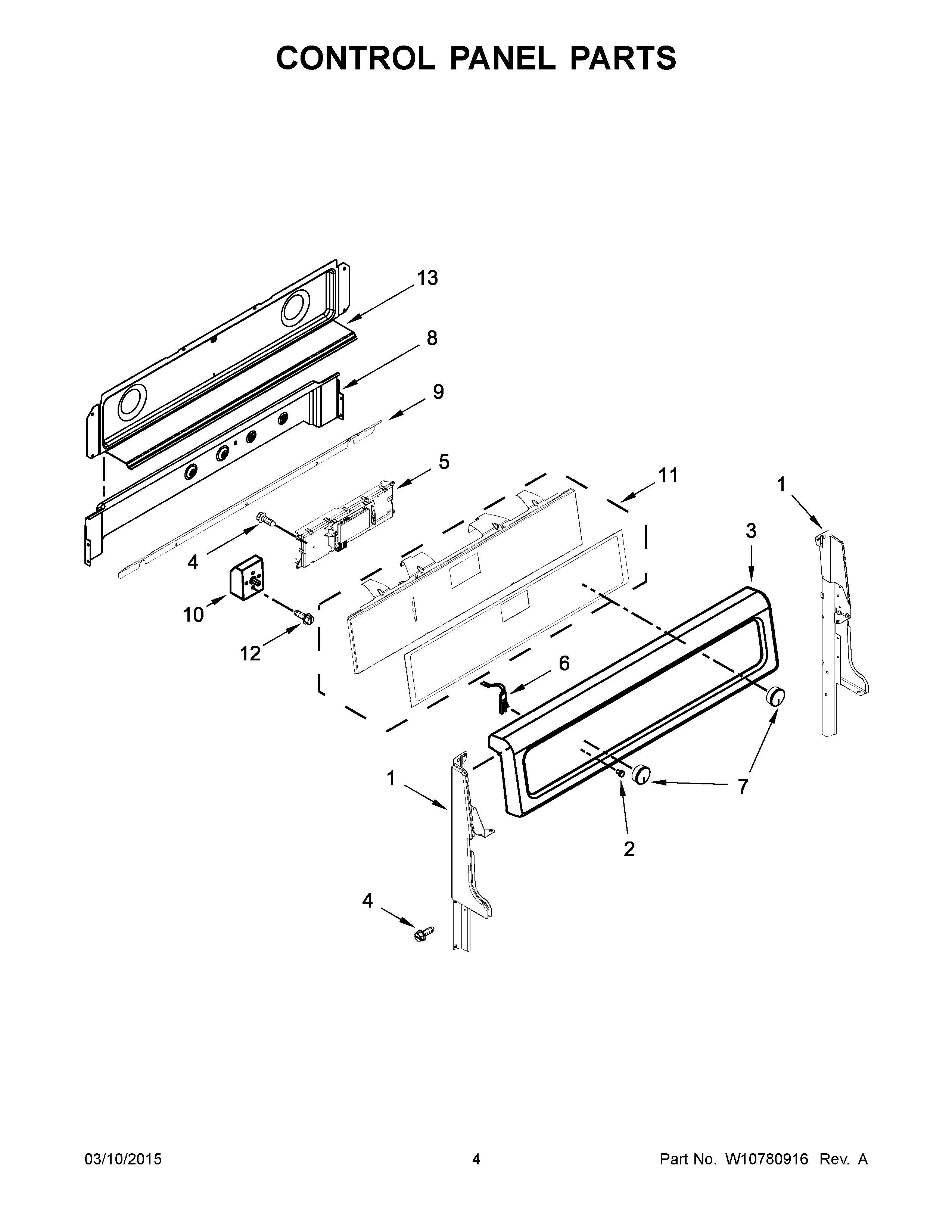

WGE755C0BS01 03 – CONTROL PANEL PARTS

WGE755C0BS01 03 – CONTROL PANEL PARTS

Written by

in

WGE755C0BS01 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W10319109 Whirlpool Endcap Panel
1BSUPPORT, BACK GUARD (RIGHT HAND)
1AW10319110 Whirlpool Endcap Panel
1CW10319112 Whirlpool Panel Endcap
2WP3196068 Whirlpool Light Lens
3AWPW10318552 Whirlpool Control Panel
3WPW10318551 Whirlpool Control Panel
3BWPW10318550 Whirlpool Control Panel
4SCREW
5WPW10778301-includeCORE Whirlpool WPW10778301 Refrigerator Electronic Control Board + Core
6Light, Indicator
7WPW10437088 Whirlpool Burner Knob
8W10278697 Whirlpool Vent Shield Assembly
10WPW10441696 Infinite Switch (Right) Front)
10AWPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
10BSWITCH, INFINITE (RIGHT REAR)
11W10528783 Whirlpool Membrane Switch
11AW10528784 Whirlpool Membrane Switch
12WPL 7101P30960
13W10776098 Whirlpool Rear Cover
