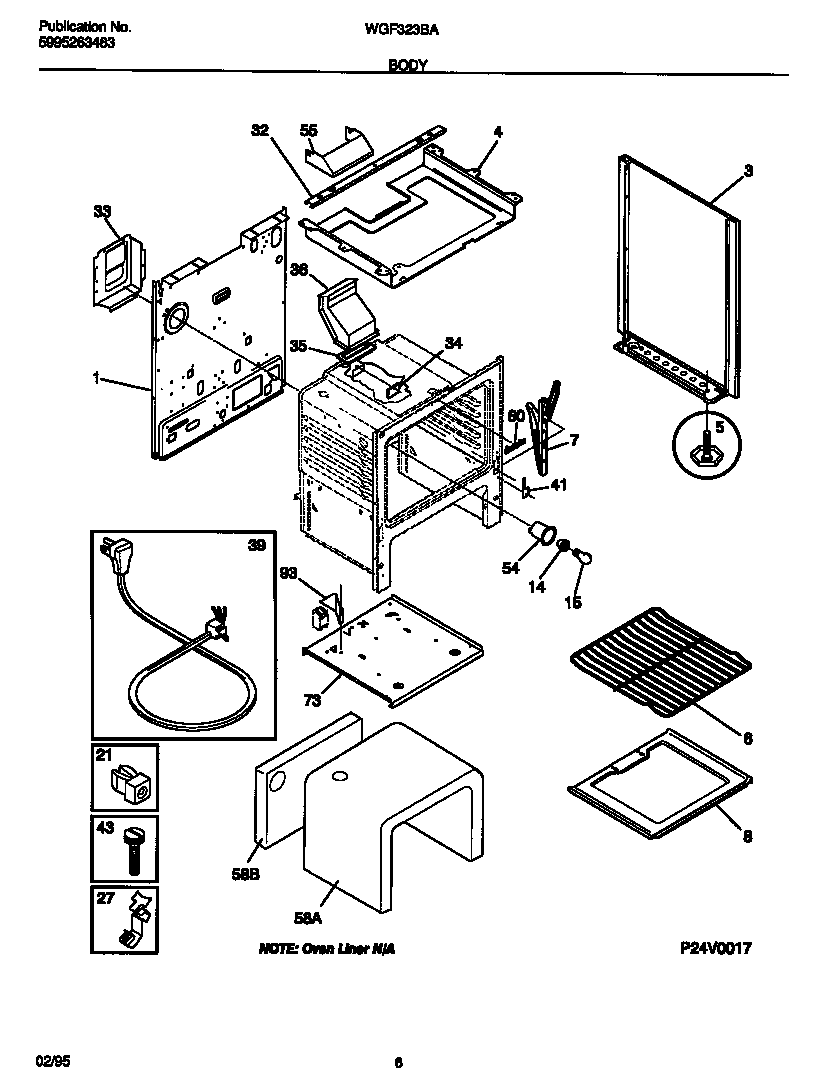

WGF323BAWB 04 – BODY

WGF323BAWB 04 – BODY

Written by

in

WGF323BAWB 04 – BODY

Products

PositionProduct
*13923WCI 5303281584
*13924WCI 5303280614
1WCI 316029410
3WCI 316081004
3AWCI 316081005
4WCI 316067204
5SCREW-LEVELING
5B316116000 Frigidaire Screw
5ANUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5CWCI 3934058
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8BTTM-OVEN
8A316064600 Frigidaire Oven Support
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32CHANNEL-BURNER BOX
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 3131904
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
54WCI 5303271606
58INSULATION, OVEN WRAPPER
59INSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
73BASE-BROIL
93WCI 316055501
