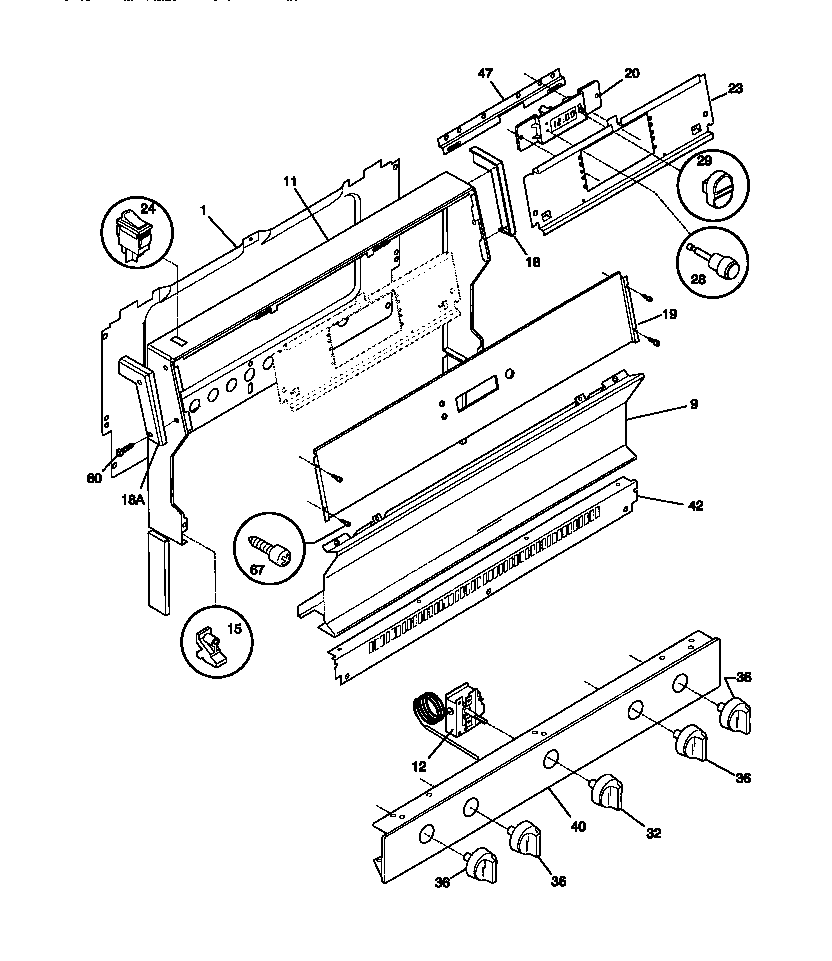

WGF323BAWC 02 – BACKGUARD

Products

Position	Product
*00880	316021105 Frigidaire Oven Screw
*00881	WCI 5303281584
*00882	SCREW-END CAP
1	SHIELD-BACKGUARD, REAR WALL
9	TRIM-SPLASHER, WHITE
11	TRIM-WRAPPER, BLACK
12A	INSULATOR-THERMOSTAT (NOT ILLUSTRATED)
12	316032411 Frigidaire Stove Temperature Control Thermostat
15	SUPPORT-BACKGUARD,(2)
18A	WCI 316013505
18	WCI 316013504
19	WCI 316022838
20	WCI 5303272309
23	WCI 316022607
24	5304527841 Frigidaire Oven Rocker Switch (Black)
28	BUTTON-CLOCK
29	KNOB-TIMER BUTTON
32	316102300 Frigidaire Oven Knob
36	KNOB-TOP VALVE, (4)
40	WCI 316062325
42	WCI 316084300
47	WCI 316022705
60	WCI 5303289970
67	SCREW, CONTROL PNL.
