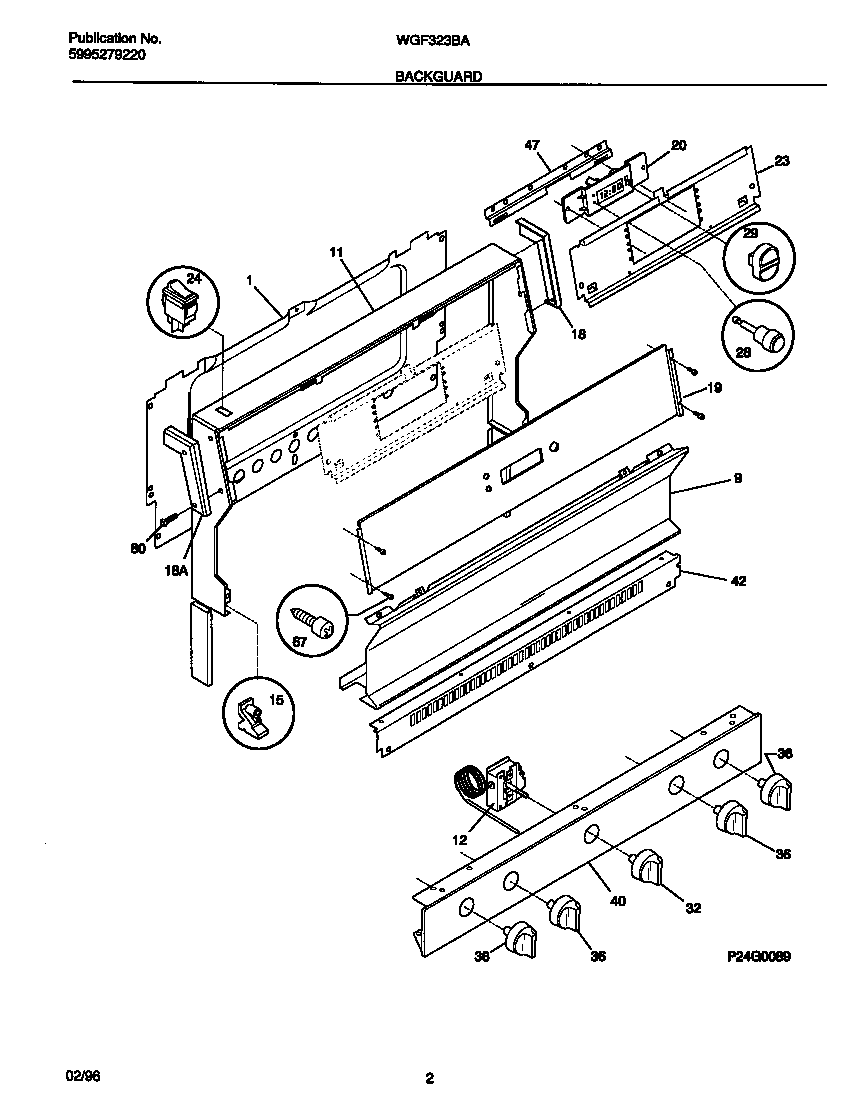

WGF323BAWE 02 – BACKGUARD

WGF323BAWE 02 – BACKGUARD

Written by

in

WGF323BAWE 02 – BACKGUARD

Products

PositionProduct
*77521316021105 Frigidaire Oven Screw
*77522SCREW-END CAP
*77520Screw,cup pt ,8-18 x 0.375 ,chrome
1SHIELD-BACKGUARD, REAR WALL
9TRIM-SPLASHER, WHITE
11WCI 316083706
12BINSULATOR-THERMOSTAT (NOT ILLUSTRATED)
12A316032411 Frigidaire Stove Temperature Control Thermostat
15SUPPORT-BACKGUARD,(2)
18WCI 316013505
18WCI 316013504
19WCI 316022838
20WCI 316096000
23WCI 316022607
245304527841 Frigidaire Oven Rocker Switch (Black)
28BUTTON-CLOCK
29KNOB-TIMER BUTTON
32316102300 Frigidaire Oven Knob
36KNOB-TOP VALVE, (4)
40WCI 316062325
42WCI 316084300
47WCI 316022705
60WCI 5303289970
67SCREW, CONTROL PNL.
