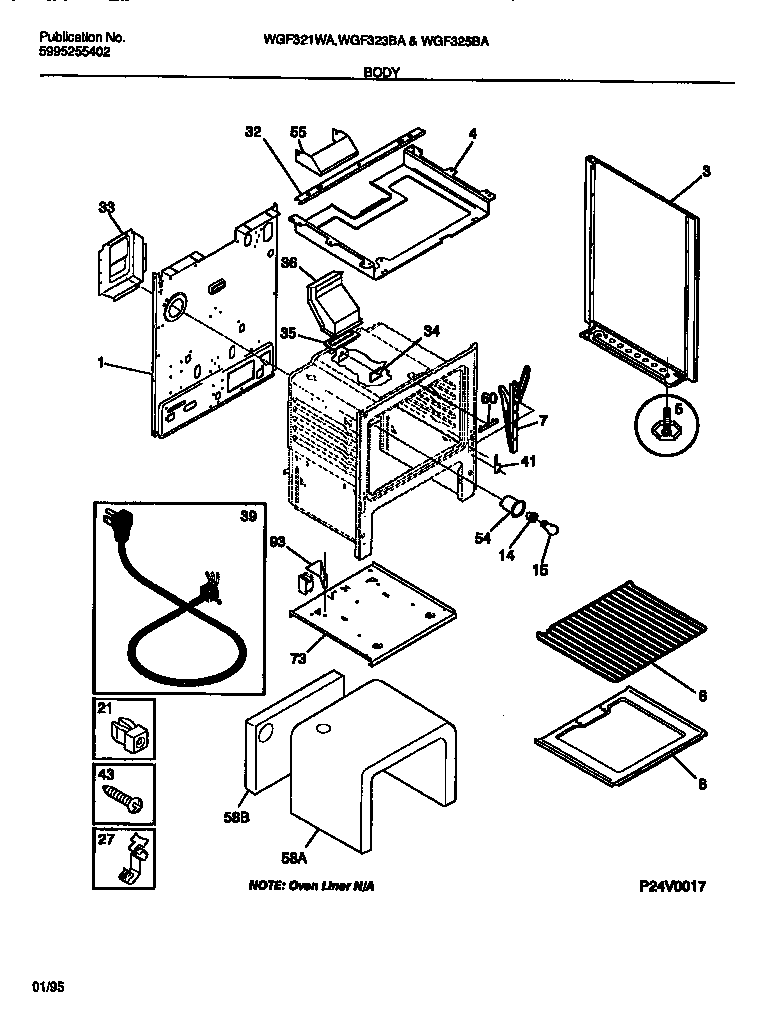

WGF325BAWA 05 – BODY

WGF325BAWA 05 – BODY

Written by

in

WGF325BAWA 05 – BODY

Products

PositionProduct
*87282WCI 5303280614
*872845303321319 Frigidaire Refrigerator White Touch Up Paint
*87285TOUCH, UP PAINT, ALMOND (NI)
*872833205821 Frigidaire Clip
1WCI 316029405
3PNL-B/S-LH-WHITE
3PNL-B/S-RH-WHITE
4WCI 316011905
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5316116000 Frigidaire Screw
5SCREW-LEVELING
5WCI 3934058
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8316064600 Frigidaire Oven Support
8BTTM-OVEN
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 3131904
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
54WCI 5303271606
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
58AINSULATION, OVEN WRAPPER
60COVER-OVEN FRONT
73BASE-BROIL
93WCI 316055501
