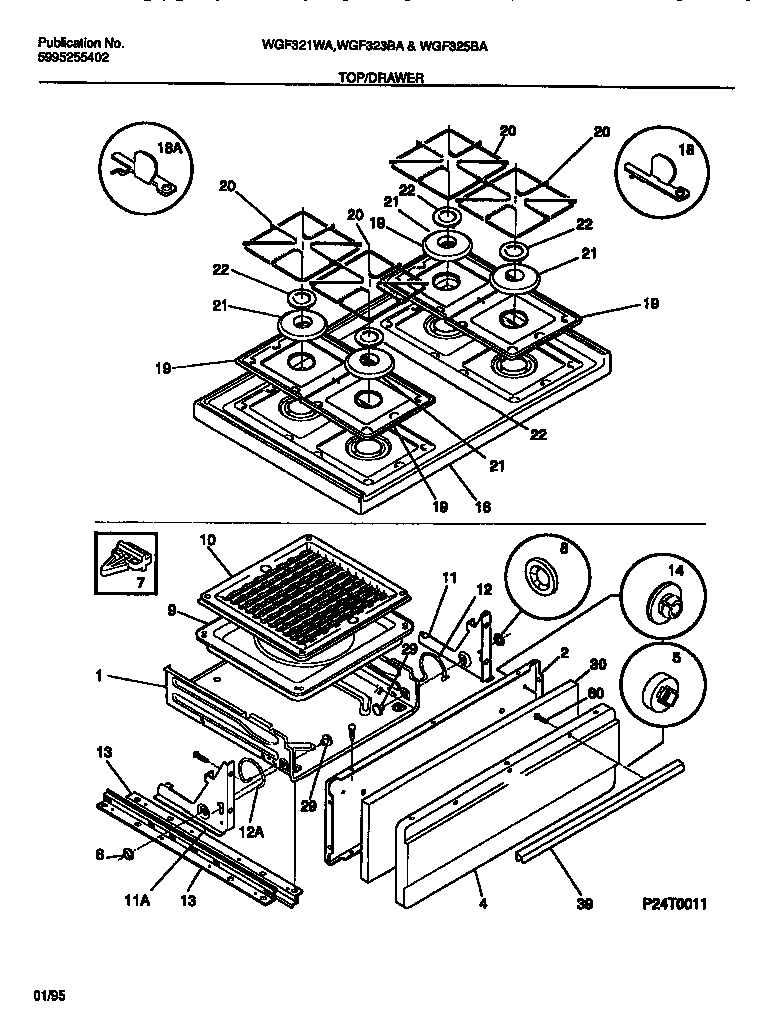

WGF325BAWA 07 – TOP/DRAWER

Products

Position	Product
1	DRAWER-BROILER
2	WCI 3202803
4	PANEL-BROILER, WHITE
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5	FSTNR, SPACER (2)
7	GLIDE-DRAWER, REAR
8	WCI 3131386
9	PAN-BROILER
10	WCI 5303131356
11	BRACKET-BROILER HINGE, RH
11A	BRACKET-BROILER HINGE, LH
12A	WCI 3018618`
12	SPRING-BROILER, RH
13	WCI 3131153
14	WCI 3206216
16	WCI 316010408
16	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16	GUSSET-MTG (RH) (NON-ILLUSTRATED)
18	BRACKET-HINGE,MAIN TOP RH
18A	BRACKET-HINGE,MAIN TOP LH
19	WCI 316011400
20	WCI 5303269632
21	WCI 316035101
22	316010901 Frigidaire Burner Cap P1
29	PIN, HINGE (2)
30	INSULATION, BROILER DRAWER
39	HANDLE-DRAWER, WHITE
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
