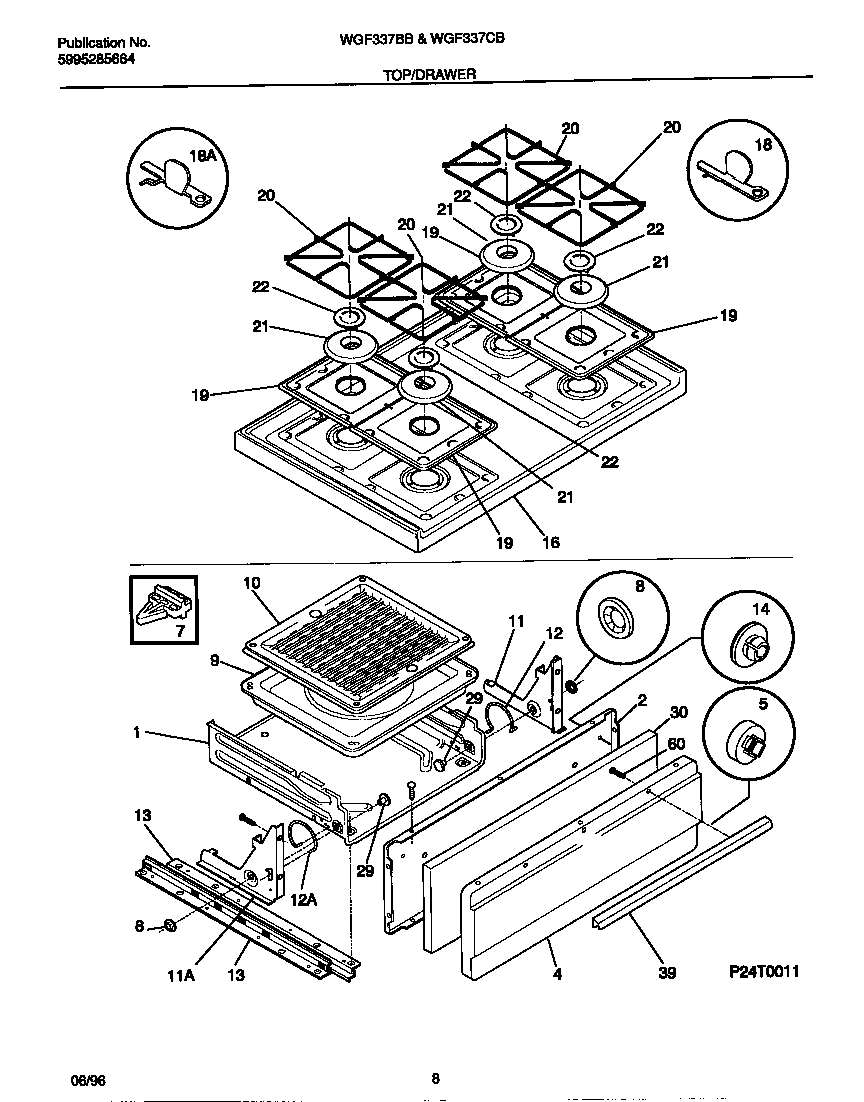

WGF337BBDC 05 – TOP/DRAWER

WGF337BBDC 05 – TOP/DRAWER

Written by

in

WGF337BBDC 05 – TOP/DRAWER

Products

PositionProduct
*67407WCI 5303280311
*67408131243700 Frigidaire Screw
*67409WCI 5303288574
*67406Screw,cup pt ,8-18 x 0.375 ,chrome
1DRAWER-BROILER
2WCI 3202803
4WCI 316056206
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11BRACKET-BROILER HINGE, LH
11BRACKET-BROILER HINGE, RH
12SPRING-BROILER, RH
12WCI 3018618`
13WCI 3131153
14WCI 3206216
16WCI 5303301547
19WCI 316011401
20WCI 316088900
22WCI 316011001
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39WCI 316019507
60316089500 Frigidaire Oven Screw
