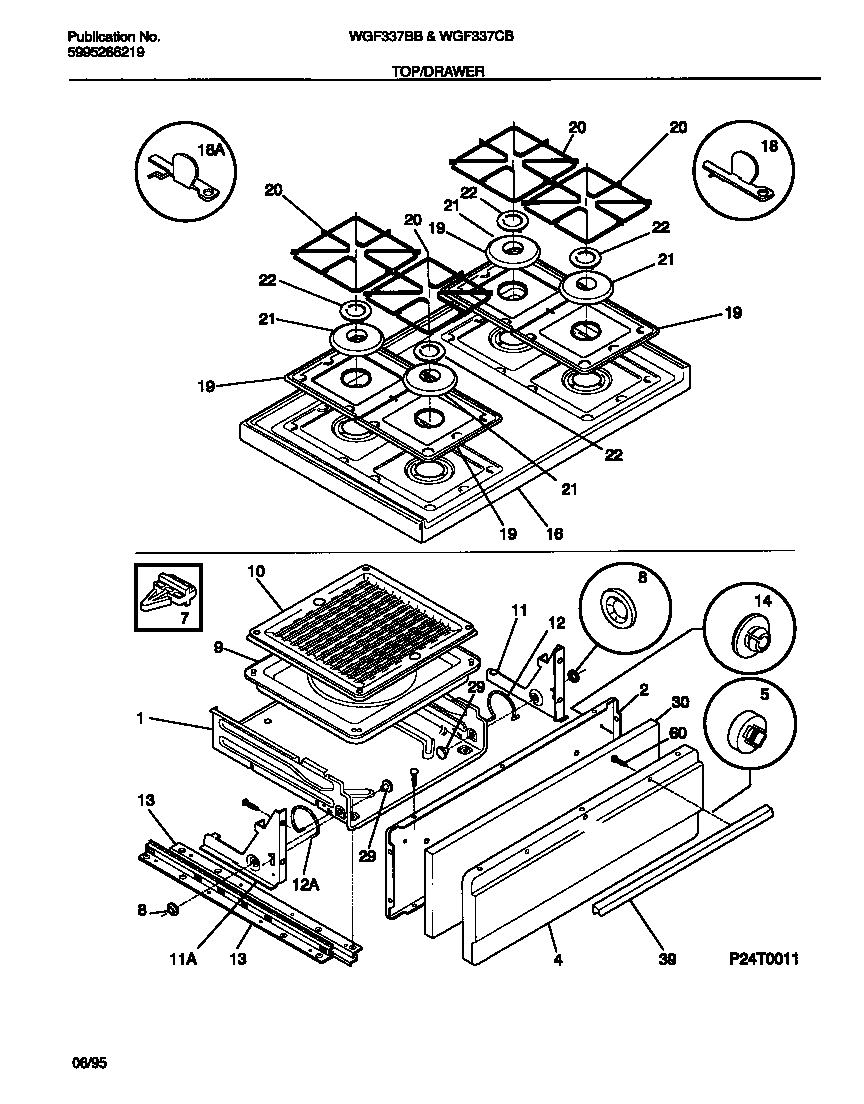

WGF337BBWA 05 – TOP/DRAWER

Products

PositionProduct
NIGUSSET-MTG (LH) (NON-ILLUSTRATED)
NIWCI 5303281584
NI131243700 Frigidaire Screw
NIGUSSET-MTG (RH) (NON-ILLUSTRATED)
NIWCI 5303281379
1DRAWER-BROILER
2WCI 3202803
4PANEL-BROILER, WHITE
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11BRACKET-BROILER HINGE, RH
11ABRACKET-BROILER HINGE, LH
12AWCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16WCI 5303301546
18HINGE-MAIN TOP (RH)
18AHINGE-MAIN TOP (LH)
19WCI 316011401
20WCI 5303269632
22WCI 316011001
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39HANDLE-DRAWER, WHITE
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
