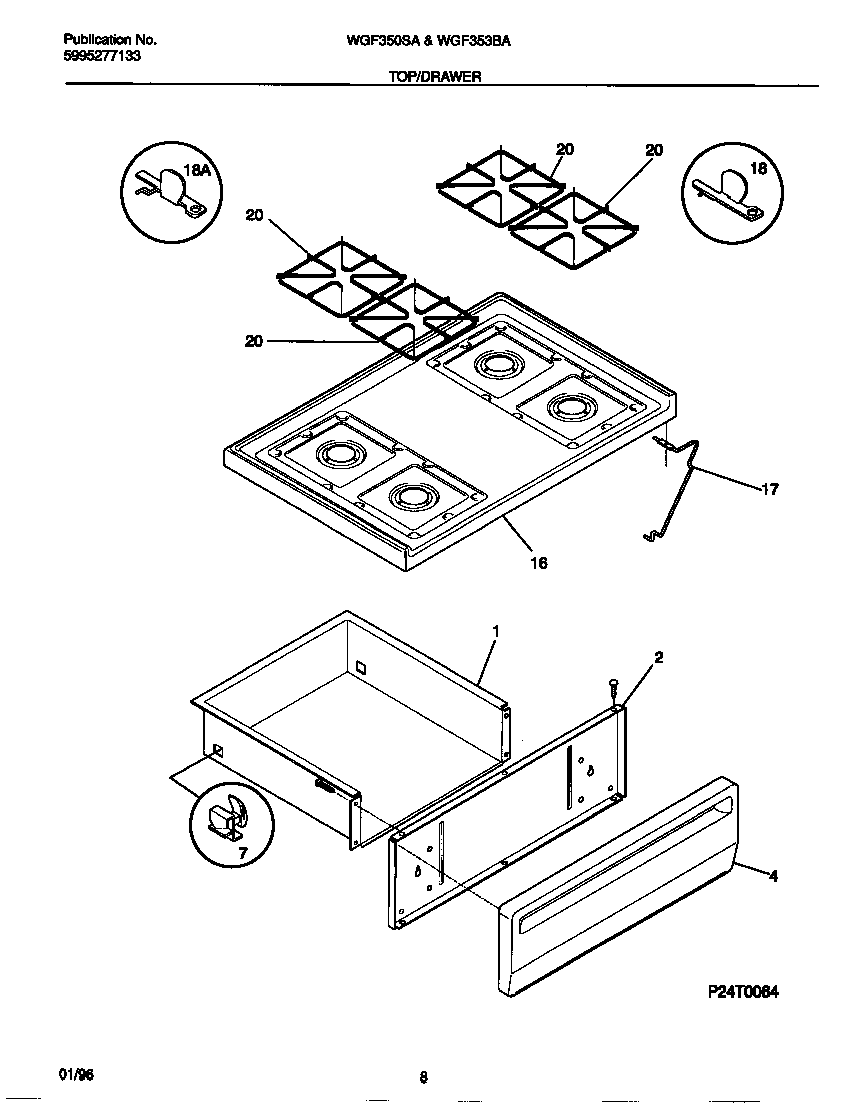

WGF350SADE 05 – TOP/DRAWER

Products

PositionProduct
*18727WCI 316089600
*18726RIVET-POP, WARING-PLATE
*187253131903 Frigidaire Door/Drawer Bumper
*18728WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084406
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16MAIN TOP, ALMOND
17WCI 316066900
18BRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
20WCI 316088900
