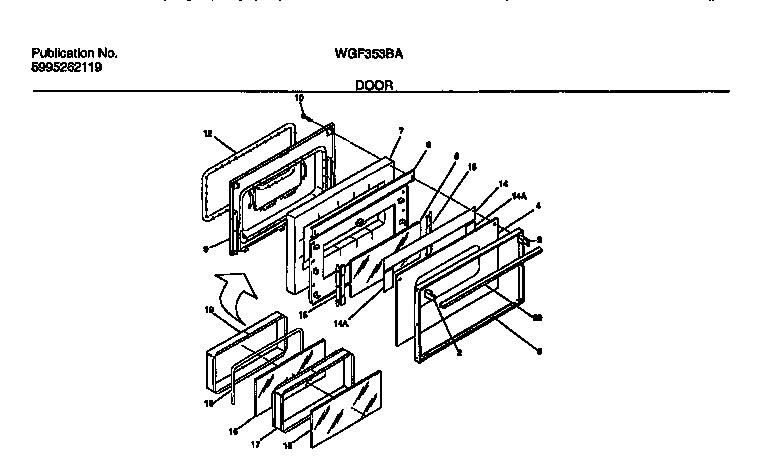

WGF353BADA 07 – DOOR

WGF353BADA 07 – DOOR

Written by

in

WGF353BADA 07 – DOOR

Products

PositionProduct
*95850RIVET-POP, WARING-PLATE
*95852WCI 5303280311
*958535303285179 Frigidaire Oven Door Screw
*95854WCI 5303269859
*95851SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*95849WCI 316065300
2316137003 Frigidaire Range / Cooktop End Cap
3WCI 316067802
4GLASS-OVEN DOOR, BLACK, OUTER
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION
7INSULATION-OVEN DOOR
9WCI 316066603
10SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
125303131601 Frigidaire Oven Seal
14REFLECTOR, ALUMINUM FOIL
14A5303208655 Frigidaire Reflector Assembly
15BRACKET-GLASS MTG
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
19WCI 316067600
39HANDLE-DOOR, OVEN
