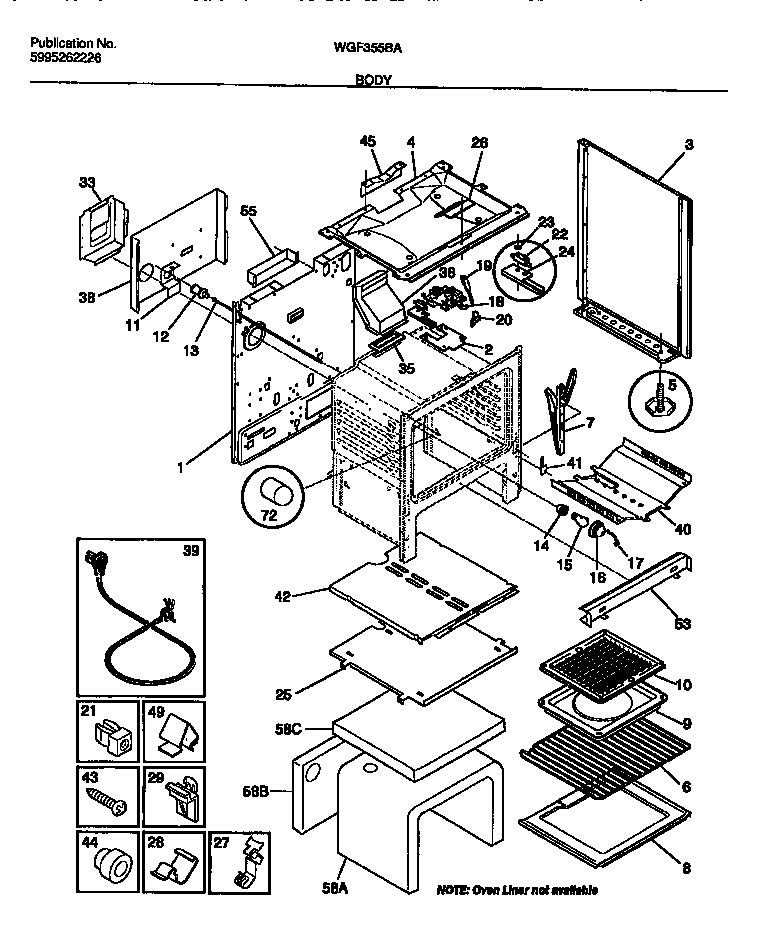

WGF355BADB 04 – BODY

WGF355BADB 04 – BODY

Written by

in

WGF355BADB 04 – BODY

Products

PositionProduct
*61374WCI 08067961
*61375FASTENER-EDGE MTG (NOT ILLUSTRATED)
*61363HARNESS-WIRING, MAIN
*61372TOUCH, UP PAINT, ALMOND (NI)
1WCI 316029405
3CWCI 316081006
3WCI 316081007
3ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3BWCI 08067992
4WCI 316011905
5ANTI-TIP KIT (NOT ILLUSTRATED)
5CSCREW-LEVELING
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5A316116000 Frigidaire Screw
6316067902 Frigidaire Oven Rack
7WCI 316007002
8316064600 Frigidaire Oven Support
8ABTTM-OVEN
9WCI 316073800
10WCI 316073900
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18AWCI 5303015453
18SHIELD-LATCH (NON-ILLUSTRATED)
19WCI 5303131357
20AWCI 3203218
20WCI 08013188
21SPACER-BODYSIDE, (8)
22STUD SPACER (2) (NON-ILLUSTRATED)
22ASWITCH-LATCH
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3131313
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 3131931
38WCI 316014301
395304515659 Frigidaire Oven Power Cord
40AWCI 3200836
40SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
493205821 Frigidaire Clip
53ASHIELD-FRONT
5308067973 Frigidaire 0 Insulation
58AINSULATION, OVEN WRAPPER
58BWCI 316054200
58CINSULATION, OVEN TOP
72COVER-LIGHT/SWITCH ROD
