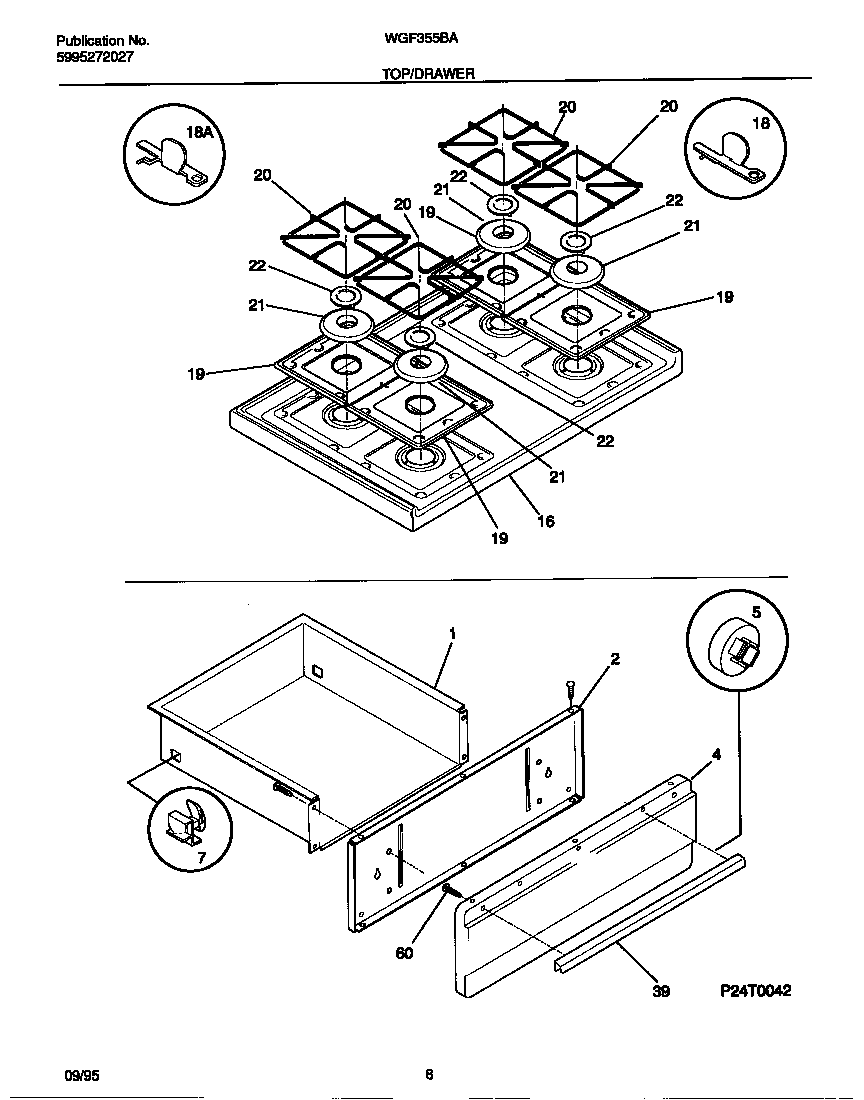

WGF355BADC 05 – TOP/DRAWER

Products

Position	Product
*72565	3131903 Frigidaire Door/Drawer Bumper
*72567	131243700 Frigidaire Screw
*72564	WCI 3018702
*72566	RIVET-POP, WARING-PLATE
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316056206
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5	FSTNR, SPACER (2)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16	WCI 316010409
16B	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16A	GUSSET-MTG (RH) (NON-ILLUSTRATED)
18	BRACKET-HINGE,MAIN TOP RH
18	BRACKET-HINGE,MAIN TOP LH
19	WCI 316011400
20	WCI 5303269632
21	WCI 316035101
22	316010901 Frigidaire Burner Cap P1
39	WCI 316019507
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
