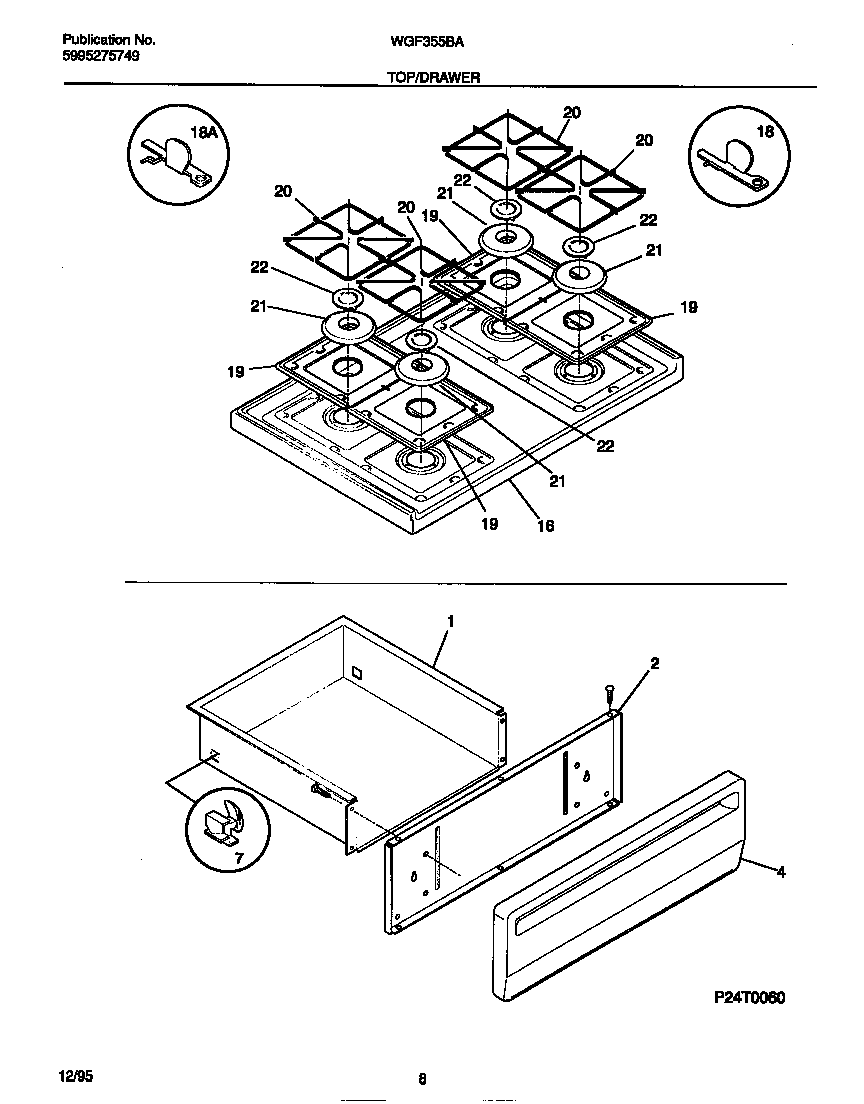

WGF355BADE 05 – TOP/DRAWER

Products

Position	Product
*04725	3131903 Frigidaire Door/Drawer Bumper
*04726	WCI 3018702
*04728	WCI 5303281584
*04727	RIVET-POP, WARING-PLATE
*04729	131243700 Frigidaire Screw
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316084406
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16	WCI 316010409
16B	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16A	GUSSET-MTG (RH) (NON-ILLUSTRATED)
18	BRACKET-HINGE,MAIN TOP LH
18	BRACKET-HINGE,MAIN TOP RH
19	WCI 316011400
20	WCI 5303269632
21	WCI 316035101
22	316010901 Frigidaire Burner Cap P1
