WGF355BAWF 04 – BODY

WGF355BAWF 04 – BODY

Written by

in

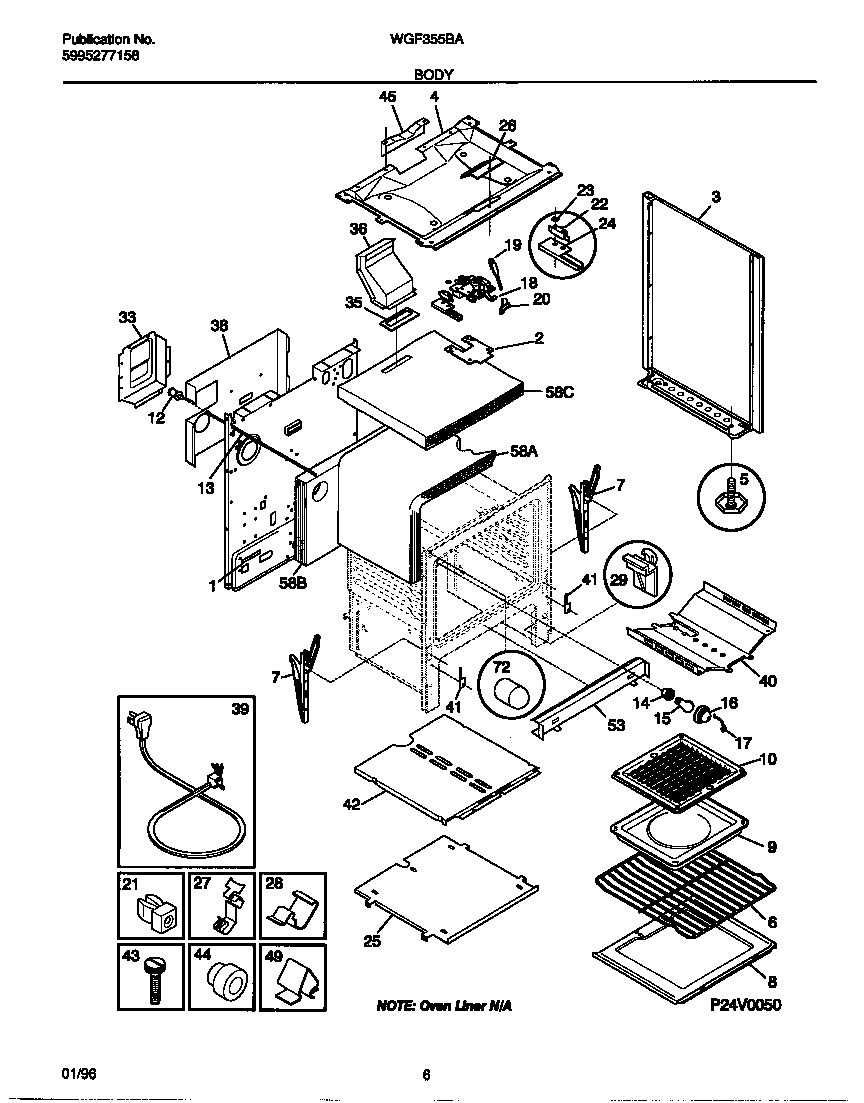

WGF355BAWF 04 – BODY

Products

PositionProduct
*73003HARNESS-WIRING, MAIN
*73002WCI 5303281584
1WCI 316029410
2SHIELD-OVN TOP
3ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3WCI 316081004
3WCI 316081005
3BWCI 08067992
4WCI 316011912
5BWCI 3934058
5ASCREW-LEVELING
5C316116000 Frigidaire Screw
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7B3203010 Frigidaire Clip
7AWCI 316007002
8B316064600 Frigidaire Oven Support
8ABTTM-OVEN
9WCI 316073800
10WCI 3205234
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18BSHIELD-LATCH (NON-ILLUSTRATED)
18AWCI 5303015453
19WCI 5303131357
20AWCI 3203218
20BWCI 08013188
21SPACER-BODYSIDE, (8)
22ASWITCH-LATCH
22BSTUD SPACER (2) (NON-ILLUSTRATED)
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3131313
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 3131931
38WCI 316014301
39A5304515659 Frigidaire Oven Power Cord
39BWCI 08067961
40BSCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
40AWCI 3200836
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
493205821 Frigidaire Clip
53ASHIELD-FRONT
53B08067973 Frigidaire 0 Insulation
58INSULATION, OVEN WRAPPER
58INSULATION, OVEN TOP
58WCI 316054200
72COVER-LIGHT/SWITCH ROD
