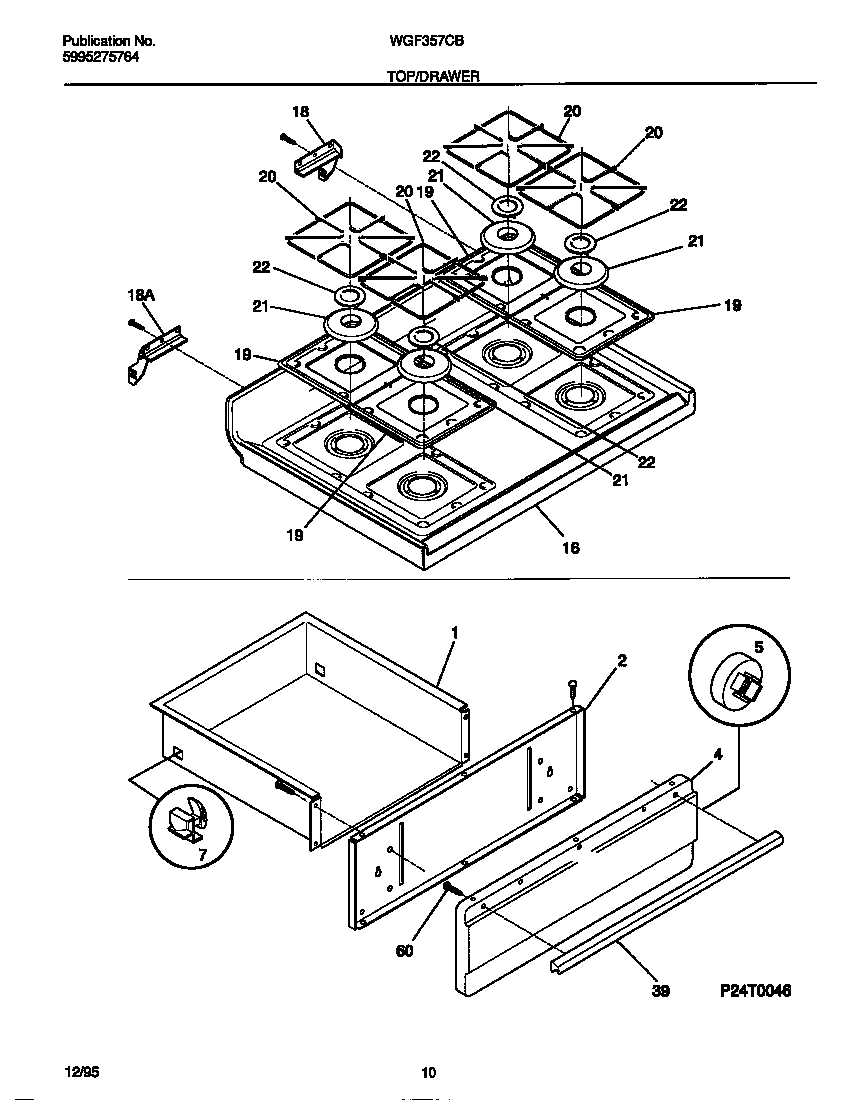

WGF357CBSB 05 – TOP/DRAWER

Written by

Products

Position	Product
*94486	RIVET-POP, WARING-PLATE
*94488	131243700 Frigidaire Screw
*94485	3131903 Frigidaire Door/Drawer Bumper
*94489	WCI 5303288574
*94487	WCI 5303281584
1	DRAWER-UTILITY
2	SHIELD-PNL
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	PANEL-BROILER, WHITE
5	FSTNR, SPACER (2)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16	GUSSET-MTG (RH) (NON-ILLUSTRATED)
16	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16	WCI 5303301546
18	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
19	WCI 316011400
20	WCI 316088901
21	TRIM RING, BURNER, DARK GREY
22	CAP-BURNER, DARK GRAY, (4)
39	WCI 316019506
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
