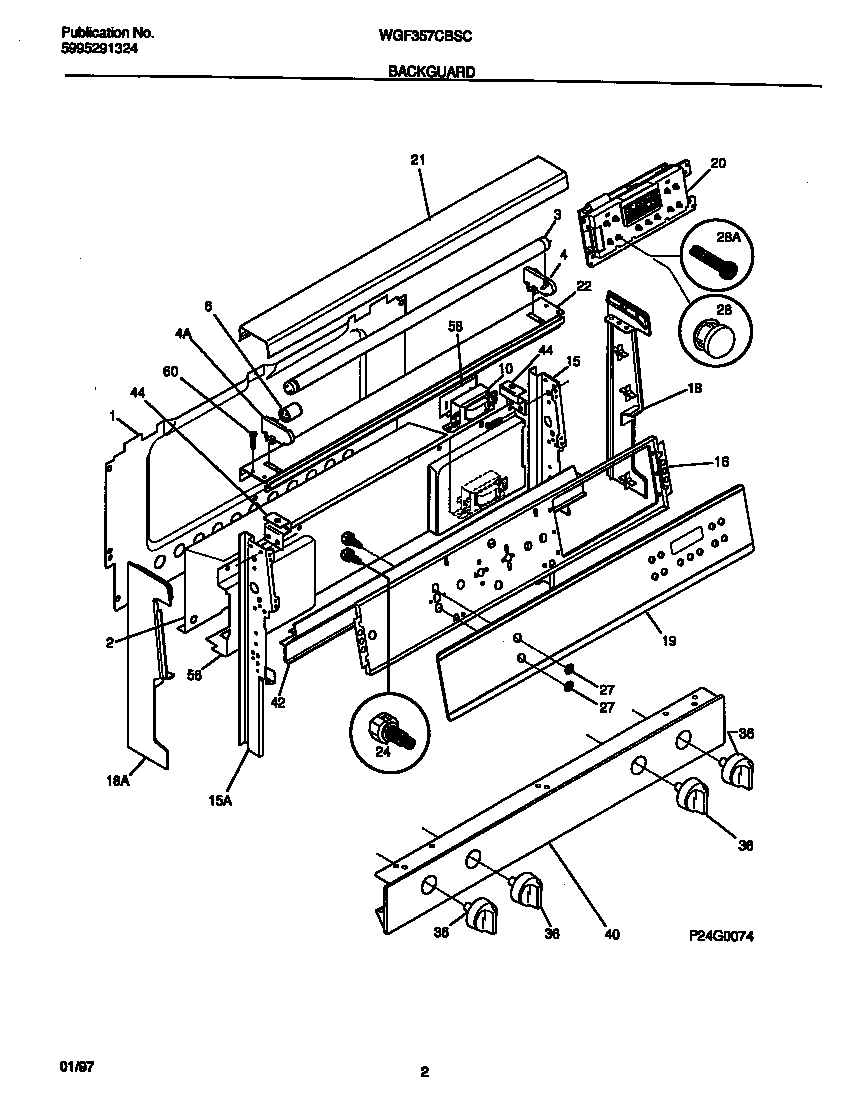

WGF357CBSC 02 – BACKGUARD

WGF357CBSC 02 – BACKGUARD

Written by

in

WGF357CBSC 02 – BACKGUARD

Products

PositionProduct
*34444WCI 316001442
*34443WCI 5303290188
*34442WCI 5303288574
*34440Screw,cup pt ,8-18 x 0.375 ,chrome
*34441WCI 5303281584
1SHIELD-BACKGUARD, REAR WALL
2WCI 316038801
3BULB-FLUOR
4RECEPTACLE-LAMP, RH
4RECEPTACLE-LAMP, LH
6STARTER-LAMP
10WCI 316099800
15WCI 316023110
15WCI 316023111
16WCI 316042601
18END CAP, WHITE, LH
18END CAP, WHITE, RH
19WCI 5303272836
19WCI 316028334
20WCI 316080101
21WCI 316015303
22WCI 316038602
24WCI 316052401
27WCI 316052301
28PUSH BUTTON, CLOCK/TIMER/EOC, GRAY, (11)
28Shaft,push button ,black ,clock/timer/EOC
36WCI 316009036
40WCI 316062363
42WCI 5303272839
44WCI 316038501
56WCI 316074902
58WCI 316043400
60316021105 Frigidaire Oven Screw
