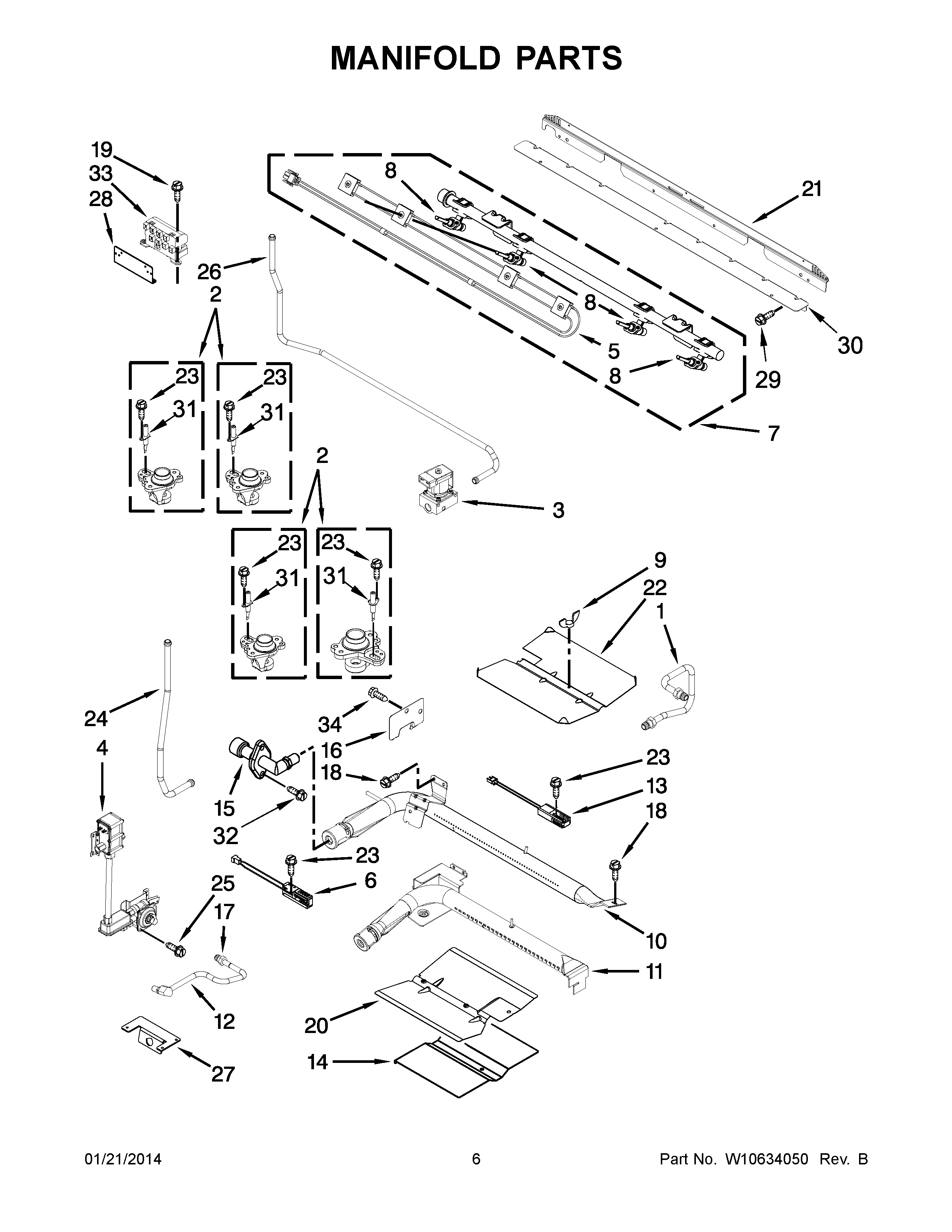

WGG555S0BB00 04 – MANIFOLD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11674161 Whirlpool Range Orifice Spud
NI	W10324646 Whirlpool Insulation
1	W10319002 Whirlpool Gas Tubing
2	W10319348 Whirlpool Orifice Holder
2	WPW10273135 Whirlpool Orifice Holder
2	WPW10296790 Whirlpool Orifice Holder
2	WPW10273140 Whirlpool Orifice Holder
3	VALVE, SHUT OFF
4	WPW10518493 Whirlpool Gas Valve
5	WPW10204717 Whirlpool Wire Harness
6	WPW10324738 Whirlpool Oven Igniter
7	WPW10204706 Whirlpool Manifold
8	WPW10206288 Whirlpool Valve Burner
8	VALVE-BRNR
9	NUT, WING
10	W11245221 Whirlpool Broiler Burner
11	W11174122 Whirlpool Oven Burner
12	W10342662 Whirlpool Gas Tubing
12	W10342661 Whirlpool Gas Tubing
13	IGNITOR, BAKE
14	W10298865 Whirlpool Heat Shield Assembly
15	W10292293 Whirlpool Fitting
16	COVER, IGNITOR WIRE
17	NUT, MOUNTING
18	SCREW
19	SCREW
20	W10272528 Whirlpool Burner Baffle
21	WPW10276470 Whirlpool Dishwasher Support Bracket
22	BAFFLE, BROIL BURNER
23	SCREW
24	W10295050 Whirlpool Gas Tubing Assembly
25	SCREW (BLACK)
26	W10295055 Whirlpool Gas Tubing
27	BRACKET, ORIFICE
28	W10319059 Whirlpool Support Bracket
29	SCREW
30	WPW10276466 Whirlpool Support Bracket
31	WPW10407676 Whirlpool Surface Igniter
32	SCREW
33	MODULE, SPARK
34	SCREW
