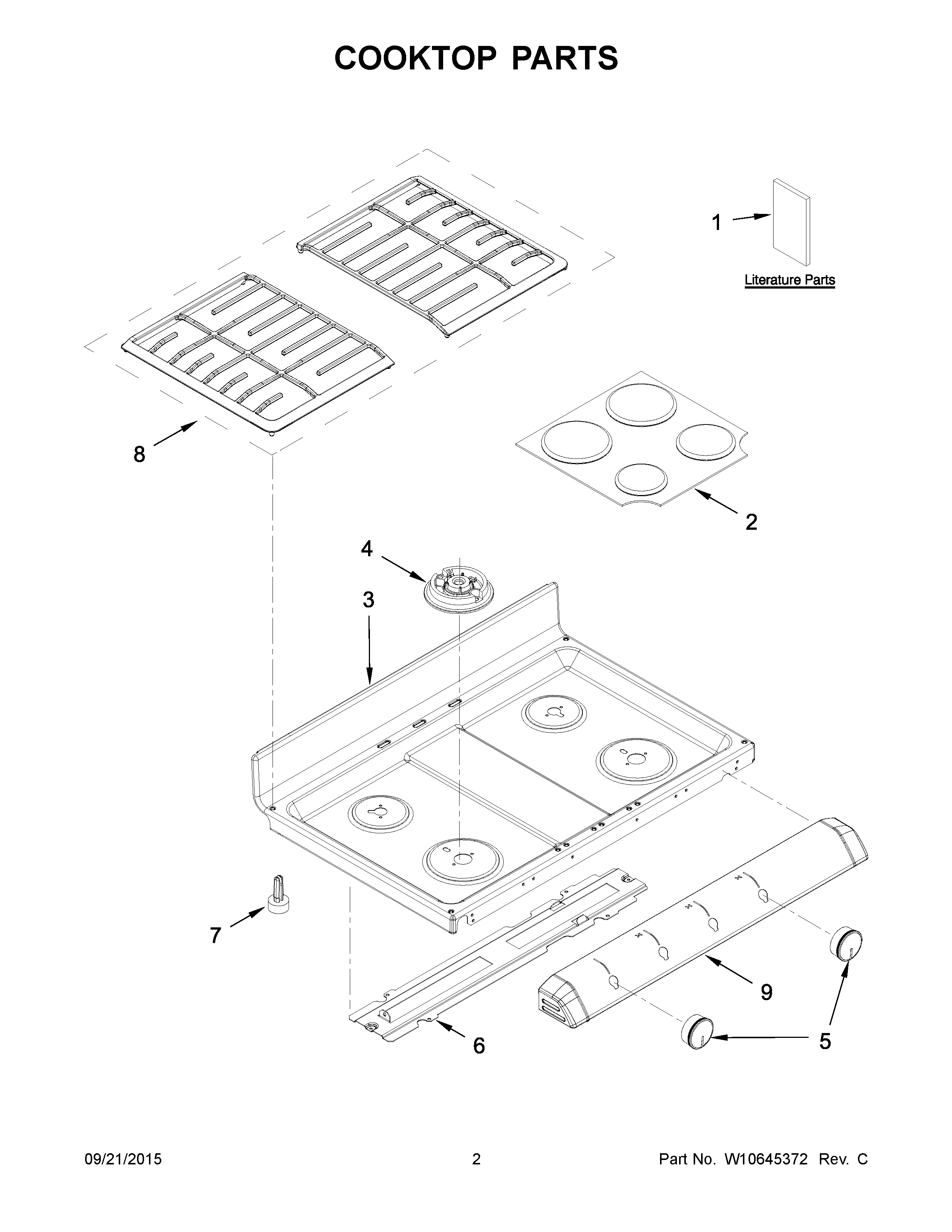

WGG555S0BB01 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10683006 Whirlpool Wire Harness
NI	W10408058 Whirlpool Wire Harness
NI	W10225701 Whirlpool Sensor Wire Harness
NI	CLAMP, WIRE
1	GUIDE, USE AND CARE
1C	SAFER COOKING TIPS (ENGLISH
1B	TECH SHEET
1D	Safer Cooking Tips (French)
1A	INSTRUCTIONS, INSTALLATION
2A	WPW10244448 Whirlpool Burner Cap
2	WPW10244447 Whirlpool Burner Cap
3A	W10336322 Whirlpool Cooktop
3	COOKTOP (BLACK)
4	WPW10406243 Whirlpool Burner Head Auxiliary 6K
4A	WPW10406878 Whirlpool Burner Base (16K)
4B	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
5B	WPW10506367 Whirlpool Knob
5A	W10506366 Whirlpool Knob
5	W10506365 Whirlpool Knob Assembly
6	W10518258 Whirlpool Mounting Bracket
7	GLIDE, MAIN TOP
8A	W10338215 Whirlpool Grate Kit
8	WPW10338214 Whirlpool Grate Kit
9B	W10544730 Whirlpool Manifold Panel
9A	W10554308 Whirlpool Panel – Manufactured
9	W10554309 Whirlpool Manifold Panel
