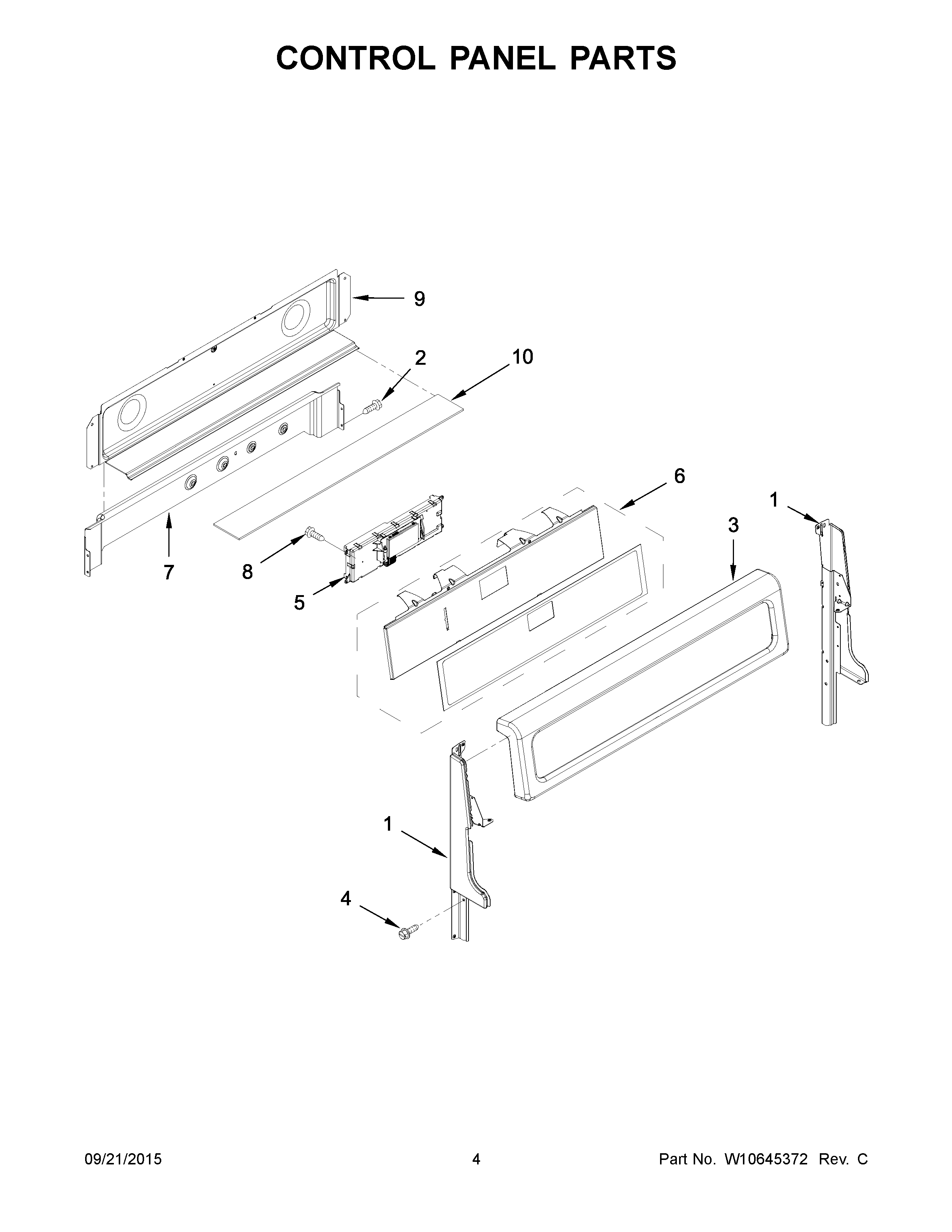

WGG555S0BB01 03 – CONTROL PANEL PARTS

Products

Position	Product
1C	W10319112 Whirlpool Panel Endcap
1	W10319109 Whirlpool Endcap Panel
1B	SUPPORT, BACK GUARD (RIGHT HAND)
1A	W10319110 Whirlpool Endcap Panel
2	SCREW
3	WPW10318551 Whirlpool Control Panel
3B	WPW10318550 Whirlpool Control Panel
3A	WPW10318552 Whirlpool Control Panel
4	SCREW (BLACK)
5	WPW10539994-includeCORE Whirlpool WPW10539994 Electronic Control Board + Core
6A	W10528790 Whirlpool Membrane Switch
6	W10528789 Whirlpool Membrane Switch
6B	WPW10531230 Whirlpool Membrane Switch
7	W10278697 Whirlpool Vent Shield Assembly
8	SCREW
9	W10296773 Whirlpool Rear Cover
10	W11684874 Whirlpool Insulation
