WGG555S0BB04 03 – CONTROL PANEL PARTS

WGG555S0BB04 03 – CONTROL PANEL PARTS

Written by

in

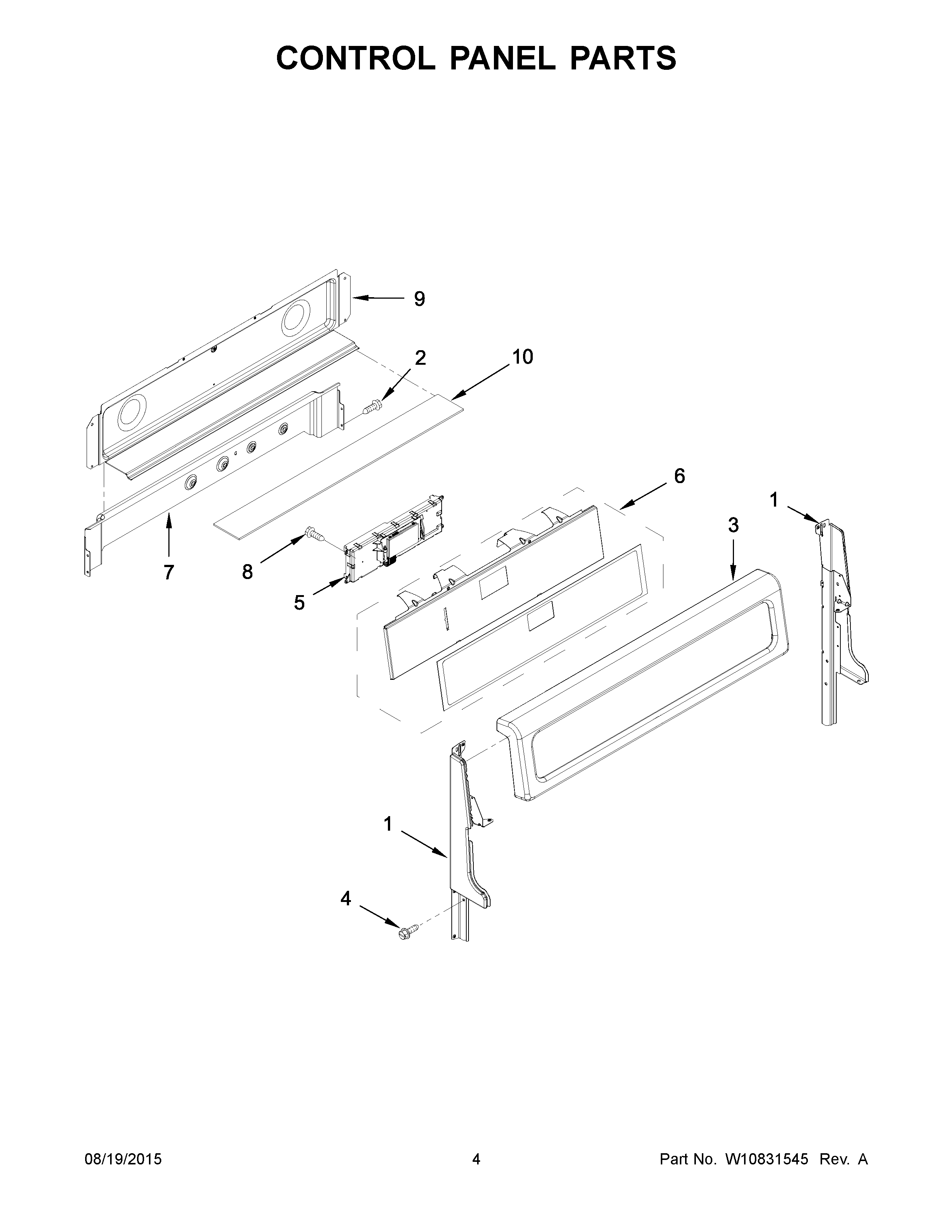

WGG555S0BB04 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W10319109 Whirlpool Endcap Panel
1BSUPPORT, BACK GUARD (RIGHT HAND)
1AW10319110 Whirlpool Endcap Panel
1CW10319112 Whirlpool Panel Endcap
2SCREW
3BWPW10318550 Whirlpool Control Panel
3AWPW10318552 Whirlpool Control Panel
3WPW10318551 Whirlpool Control Panel
4SCREW (BLACK)
5W10877019 Whirlpool Electronic Control Board
6W10528789 Whirlpool Membrane Switch
6AW10528790 Whirlpool Membrane Switch
6BWPW10531230 Whirlpool Membrane Switch
7W10278697 Whirlpool Vent Shield Assembly
8SCREW
9W10776098 Whirlpool Rear Cover
10W11684874 Whirlpool Insulation
