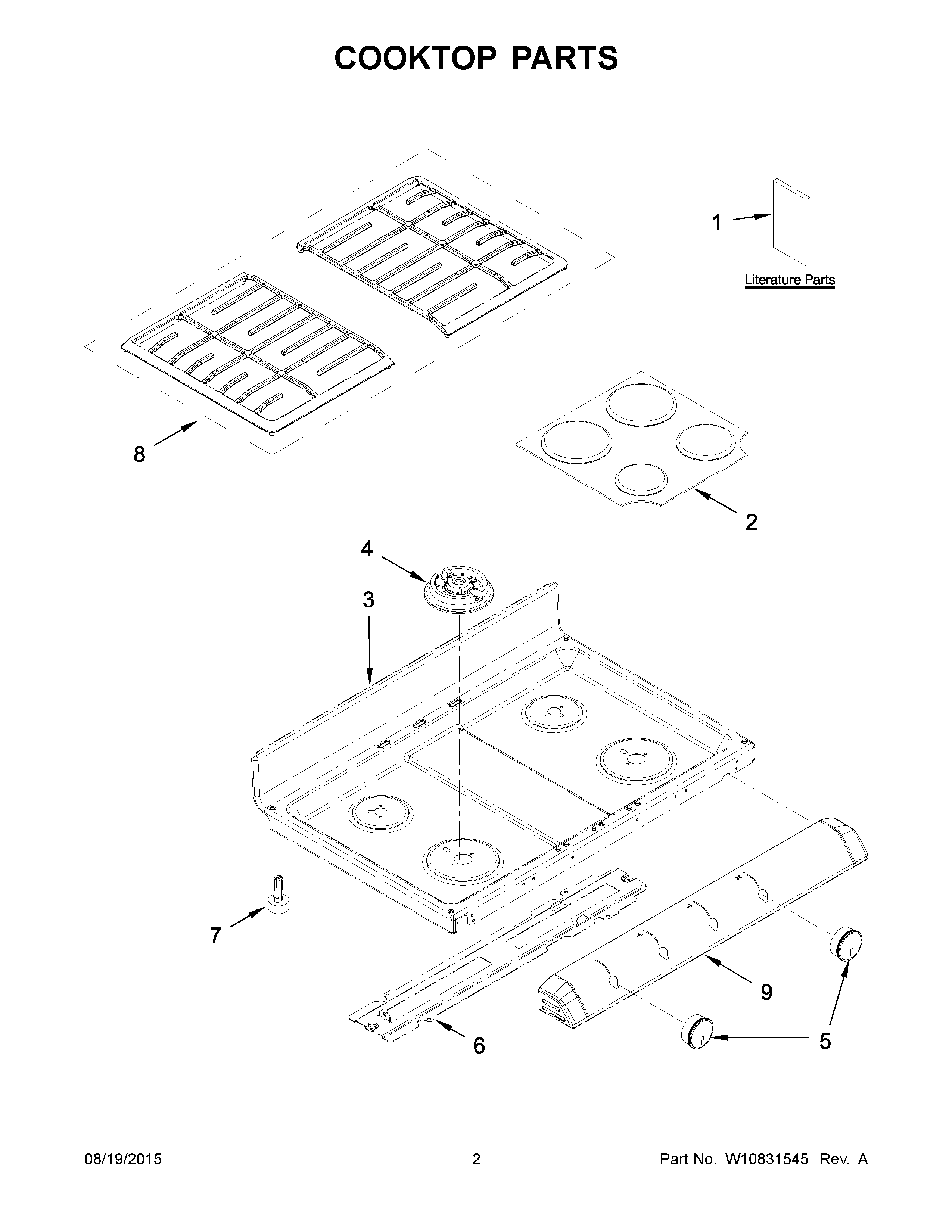

WGG555S0BS04 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, MAIN
NI	W11172531 Whirlpool Wire Harness
NI	W11157775 Whirlpool Wire Harness
NI	W10408058 Whirlpool Wire Harness
NI	CLAMP, WIRE
1C	SAFER COOKING TIPS (ENGLISH
1A	INSTRUCTIONS, INSTALLATION
1D	Safer Cooking Tips (French)
1B	SHEET, TECH
1	GUIDE, USE & CARE
2A	WPW10244448 Whirlpool Burner Cap
2	WPW10244447 Whirlpool Burner Cap
3A	W10336322 Whirlpool Cooktop
3	COOKTOP (BLACK)
4A	WPW10406243 Whirlpool Burner Head Auxiliary 6K
4B	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4	WPW10406878 Whirlpool Burner Base (16K)
5	W10506365 Whirlpool Knob Assembly
5B	WPW10506367 Whirlpool Knob
5A	W10506366 Whirlpool Knob
6	W10518258 Whirlpool Mounting Bracket
7	GLIDE, MAIN TOP
8A	W10338215 Whirlpool Grate Kit
8	WPW10338214 Whirlpool Grate Kit
9B	W10544730 Whirlpool Manifold Panel
9A	W10554308 Whirlpool Panel – Manufactured
9	W10554309 Whirlpool Manifold Panel
