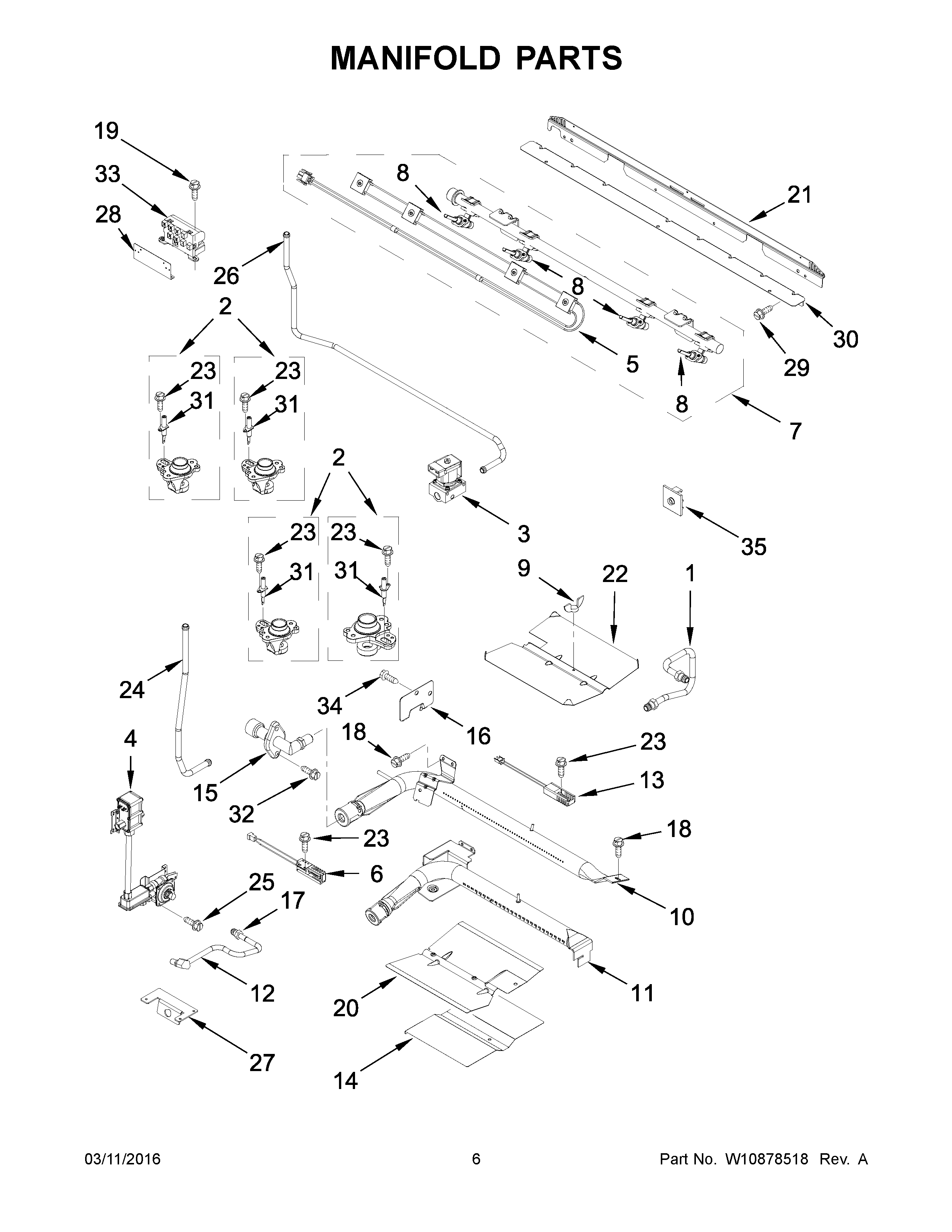

WGG555S0BS06 04 – MANIFOLD PARTS

Products

Position	Product
NI	W10324646 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11674161 Whirlpool Range Orifice Spud
1	W10319002 Whirlpool Gas Tubing
2	HOLDER, ORIFICE (15K) (LEFT FRONT)
2A	W10638851 Whirlpool Orifice Holder
2B	HOLDER, ORIFICE (9.2K) (RIGHT FRONT)
2C	W10638865 Whirlpool Orifice Holder
3	W10911971 Whirlpool Solenoid Valve
4	WPW10546238 Whirlpool Gas Valve
5	WPW10204717 Whirlpool Wire Harness
6	WPW10324738 Whirlpool Oven Igniter
7	WPW10204706 Whirlpool Manifold
8	WPW10206288 Whirlpool Valve Burner
8A	VALVE-BRNR
9	NUT, WING
10	W11245221 Whirlpool Broiler Burner
11	W11174122 Whirlpool Oven Burner
12	W10342662 Whirlpool Gas Tubing
12A	W10342661 Whirlpool Gas Tubing
13	IGNITOR, BAKE
14	W10298865 Whirlpool Heat Shield Assembly
15	W10292293 Whirlpool Fitting
16	COVER, IGNITOR WIRE
17	NUT, MOUNTING
18	SCREW
19	SCREW
20	W10272528 Whirlpool Burner Baffle
21	WPW10276470 Whirlpool Dishwasher Support Bracket
22	BAFFLE, BROIL BURNER
23	SCREW
24	W10524331 Whirlpool Gas Tubing
25	SCREW (BLACK)
26	W10295055 Whirlpool Gas Tubing
27	BRACKET, ORIFICE
28	W10319059 Whirlpool Support Bracket
29	SCREW
30	WPW10276466 Whirlpool Support Bracket
31	W11208293 Whirlpool Surface Igniter
32	SCREW
33	MODULE, SPARK
34	SCREW
35	W10631502 Whirlpool Grommet
