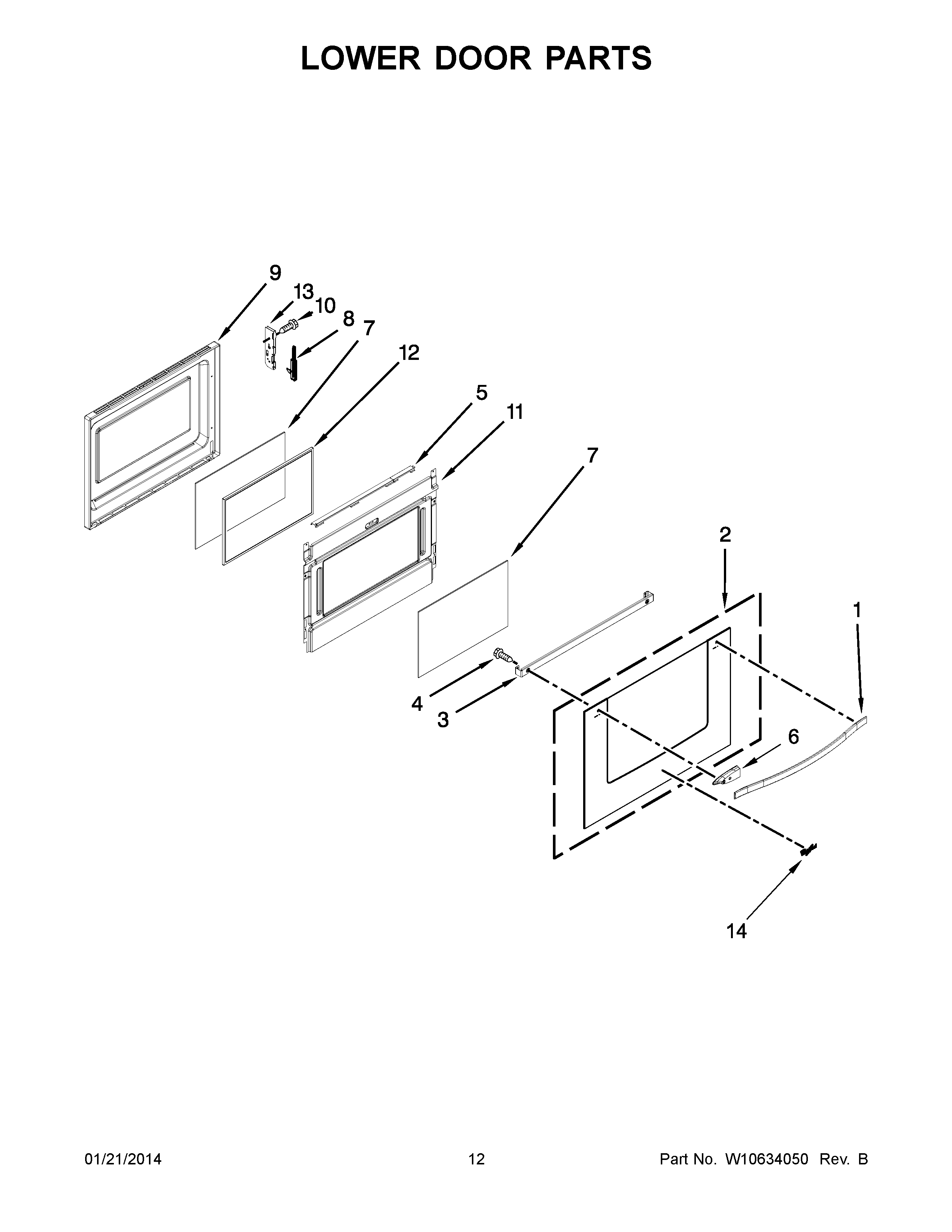

WGG555S0BW00 07 – LOWER DOOR PARTS

WGG555S0BW00 07 – LOWER DOOR PARTS

Written by

in

WGG555S0BW00 07 – LOWER DOOR PARTS

Products

PositionProduct
1W10300489 Whirlpool Door Handle
1W10300490 Whirlpool Door Handle
1WPW10618239 Whirlpool Door Handle
2W10677242 Whirlpool Door Glass
2W10677243 Whirlpool Door Glass Assembly
2ASSEMBLY, DOOR GLASS (STAINLESS (STAINLESS INCLUDES DOOR PANEL AND BADGE))
3W10575689 Whirlpool Mounting Bracket
3WPW10294695 Whirlpool Mounting Bracket
4WPW10317886 Whirlpool Screw
5WPW10272594 Whirlpool Window Frame
6WPW10410341 Whirlpool Spacer
7WP9757706 Whirlpool Door Inner Glass
8WPW10335433 Whirlpool Door Hinge
8WPW10335434 Whirlpool Door Hinge
9WPW10272698 Whirlpool Dishwasher Door Liner
10WPW10292297 Whirlpool Screw
11W10340464 Whirlpool Retainer
12INSULATION, DOOR
13WPW10272328 Whirlpool Hinge Receptacle
13WPW10272329 Whirlpool Hinge Receptacle
14W11178521 Whirlpool Dishwasher Nameplate
