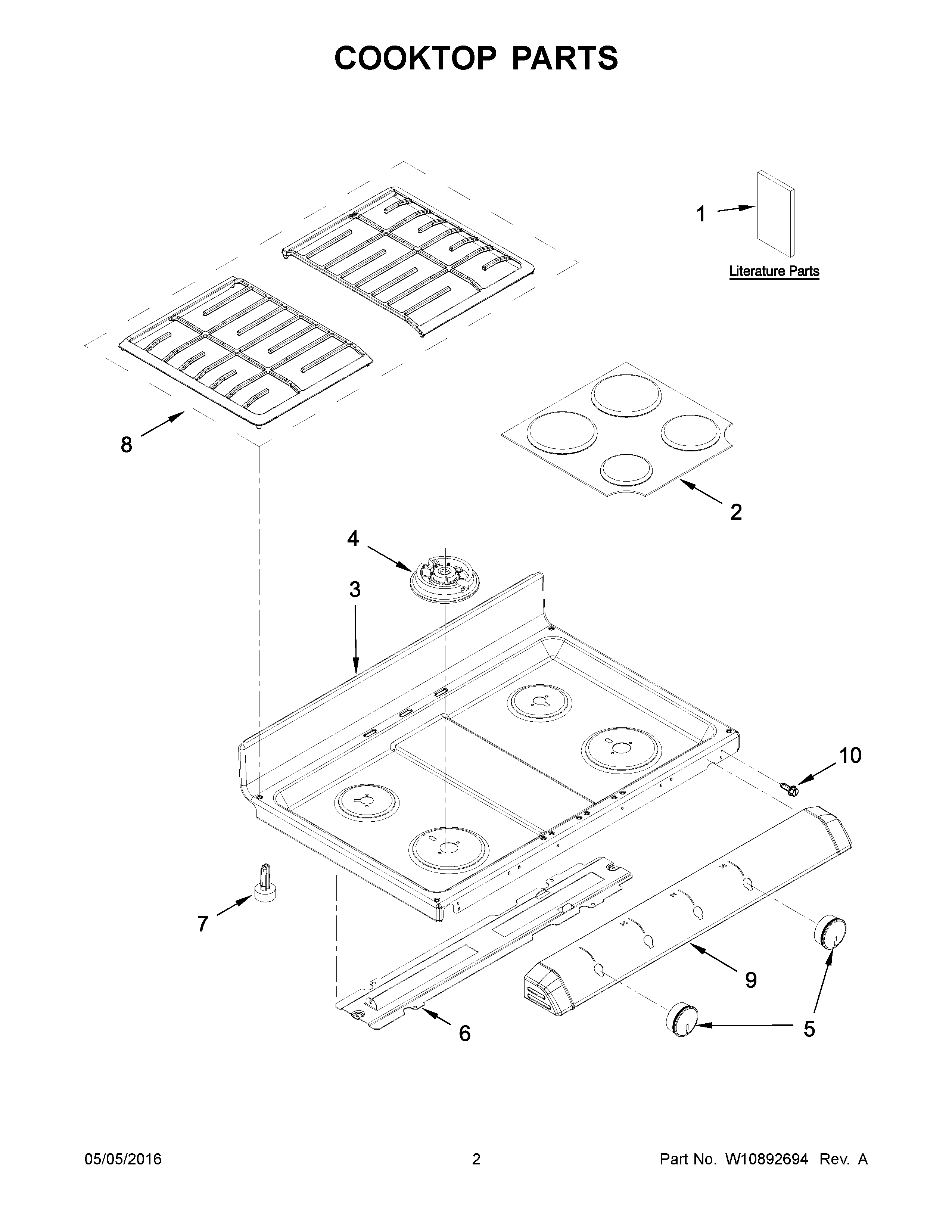

WGG555S0BW07 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11172531 Whirlpool Wire Harness
NI	W11157775 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, CLIP, WIRE
NI	W10408058 Whirlpool Wire Harness
NI	HARNESS, MAIN
NI	CLAMP, WIRE
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
1C	SAFER COOKING TIPS (ENGLISH
1D	Safer Cooking Tips (French)
1B	SHEET, TECH
2A	WPW10244448 Whirlpool Burner Cap
2	WPW10244447 Whirlpool Burner Cap
3A	W10336322 Whirlpool Cooktop
3	COOKTOP (BLACK)
4B	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4A	WPW10406243 Whirlpool Burner Head Auxiliary 6K
4	WPW10406878 Whirlpool Burner Base (16K)
5B	WPW10506367 Whirlpool Knob
5A	W10506366 Whirlpool Knob
5	W10506365 Whirlpool Knob Assembly
6	W10518258 Whirlpool Mounting Bracket
7	GLIDE, MAIN TOP
8A	W10338215 Whirlpool Grate Kit
8	WPW10338214 Whirlpool Grate Kit
9B	W10544730 Whirlpool Manifold Panel
9A	W10554308 Whirlpool Panel - Manufactured
9	W10554309 Whirlpool Manifold Panel
10	SCREW (BLACK)
10A	SCREW (WHITE)
