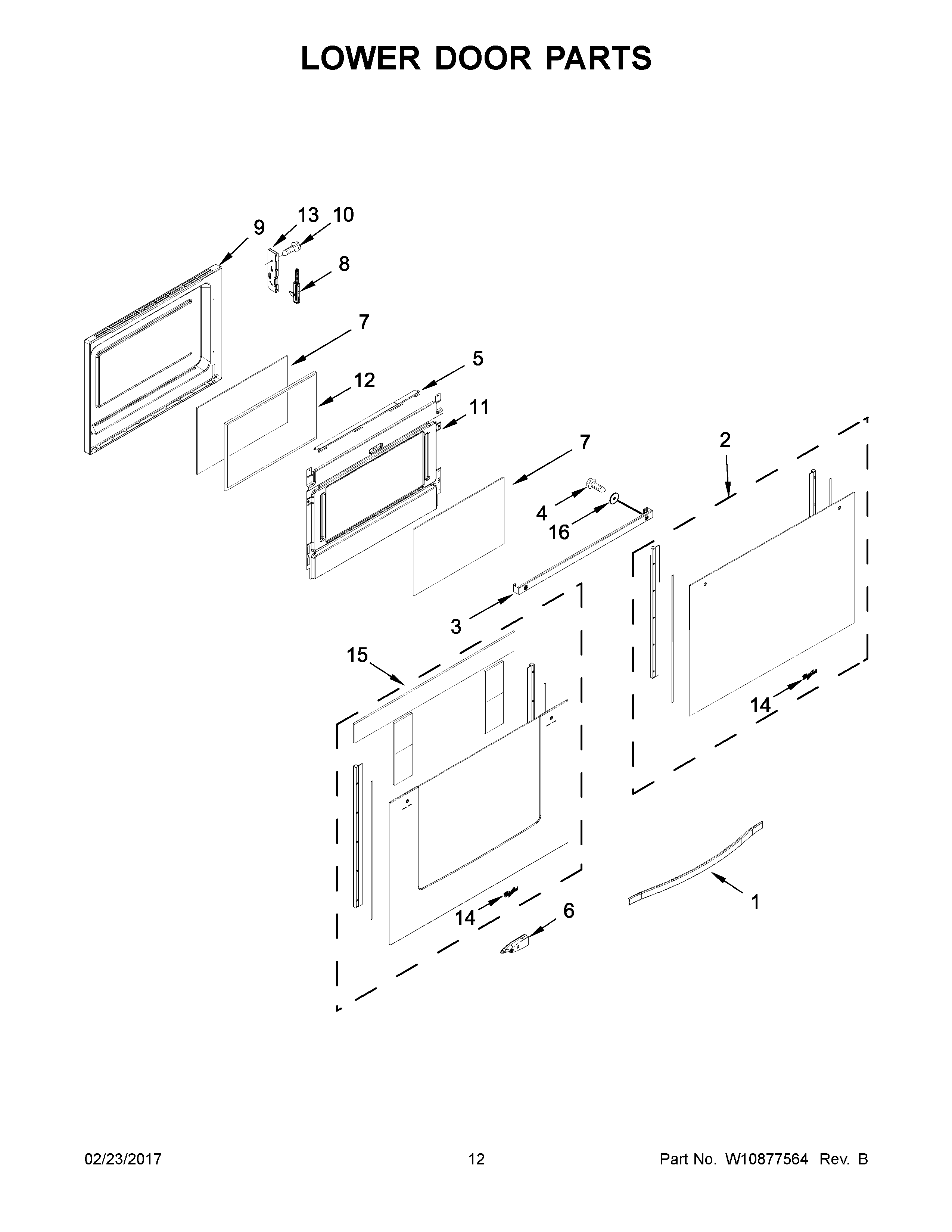

WGG745S0FE00 07 – LOWER DOOR PARTS

Products

Position	Product
1	WPW10618239 Whirlpool Door Handle
2A	W10677245 Whirlpool Door Glass
2	W10677248 Whirlpool Door Glass
3	WPW10294695 Whirlpool Mounting Bracket
3A	W10575689 Whirlpool Mounting Bracket
4	WPW10317886 Whirlpool Screw
5	WPW10272594 Whirlpool Window Frame
6	WPW10410341 Whirlpool Spacer
6A	WPW10429492 Whirlpool Spacer
7	WP9757706 Whirlpool Door Inner Glass
8	WPW10335434 Whirlpool Door Hinge
8A	WPW10335433 Whirlpool Door Hinge
9	WPW10272698 Whirlpool Dishwasher Door Liner
10	WPW10292297 Whirlpool Screw
11	W10340464 Whirlpool Retainer
12	INSULATION, DOOR
13	WPW10272329 Whirlpool Hinge Receptacle
13A	WPW10272328 Whirlpool Hinge Receptacle
14	W11178521 Whirlpool Dishwasher Nameplate
15	W10877566 Whirlpool Outer Door Glass
16	WASHER, FIBER
