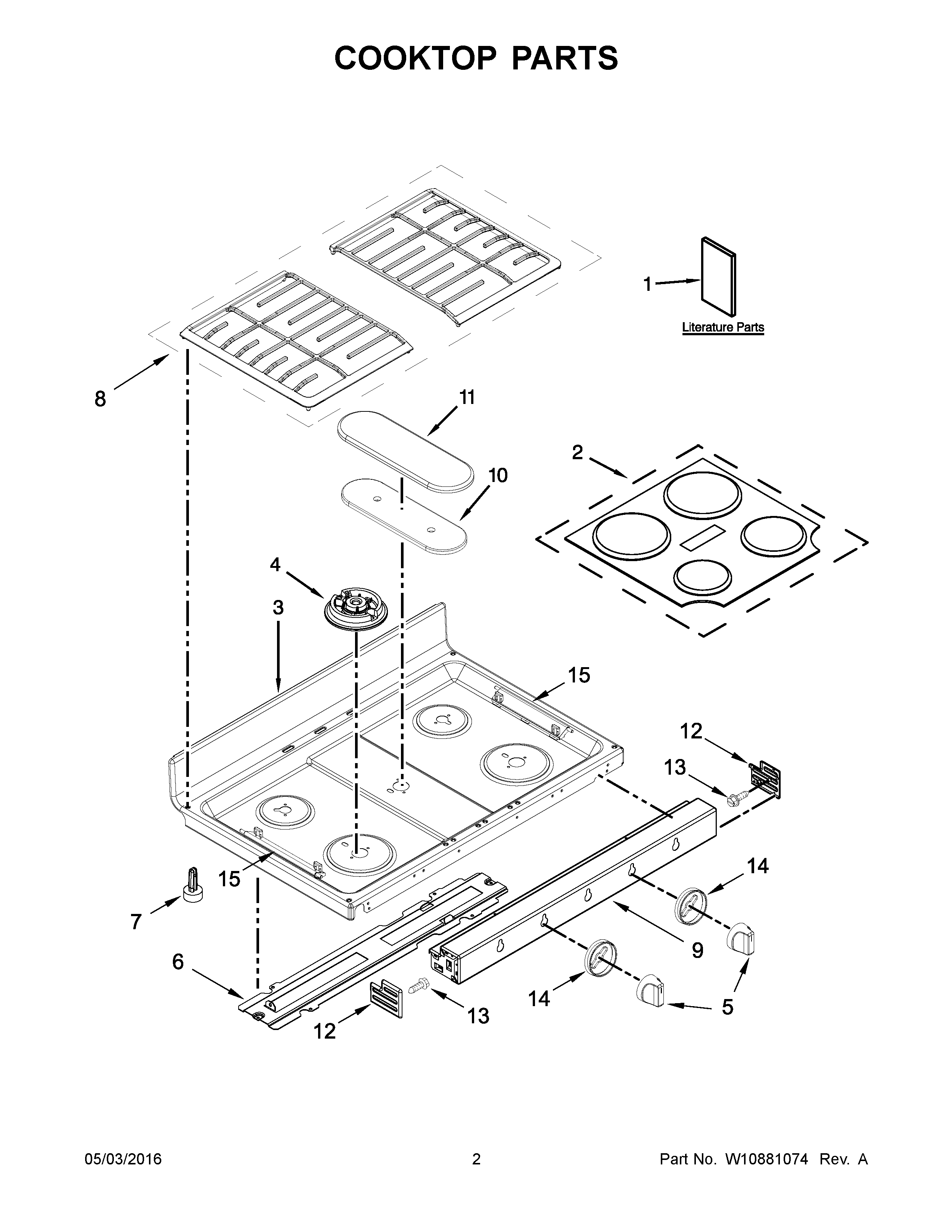

WGG745S0FE01 02 – COOKTOP PARTS

Products

PositionProduct
NIW11157775 Whirlpool Wire Harness
NIWIRING HARNESS PARTS, CLIP, WIRE
NIW11172531 Whirlpool Wire Harness
NICLAMP, WIRE
NIW10745674 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NIW10408058 Whirlpool Wire Harness
1AINSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE
1BSHEET, TECH
1DSafer Cooking Tips (French)
1CSAFER COOKING TIPS (ENGLISH
1EINSERT, GRILL PAN
2WPW10299236 Whirlpool Burner Cap
3W10878907 Whirlpool Cooktop Assembly
3AW10878908 Whirlpool Cooktop Assembly
4AWPW10406243 Whirlpool Burner Head Auxiliary 6K
4WPW10406878 Whirlpool Burner Base (16K)
4BWPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4CWPW10336094 Whirlpool Burner Assembly Top
5W11188749 Whirlpool Control Knob
6W10518258 Whirlpool Mounting Bracket
7GLIDE, MAIN TOP
8W11449099 Whirlpool Grate Kit
9W10828392 Whirlpool Manifold Panel
9BW10823297 Whirlpool Manifold Panel
9AW10828396 Whirlpool Manifold Panel
10WPW10333445 Whirlpool Burner Base
11WPW10171140 Whirlpool Burner Cap
12EW10823299 Whirlpool Endcap Panel
12DCAP, END (STAINLESS (LEFT))
12CENDCAP, MANIFOLD (WHITE (RIGHT))
12BENDCAP, MANIFOLD (WHITE (LEFT))
12AW10719581 Whirlpool Panel End Cap
12W10719582 Whirlpool Endcap Panel
13W10491985 Whirlpool Screw
14W11188712 Whirlpool Knob Bezel
