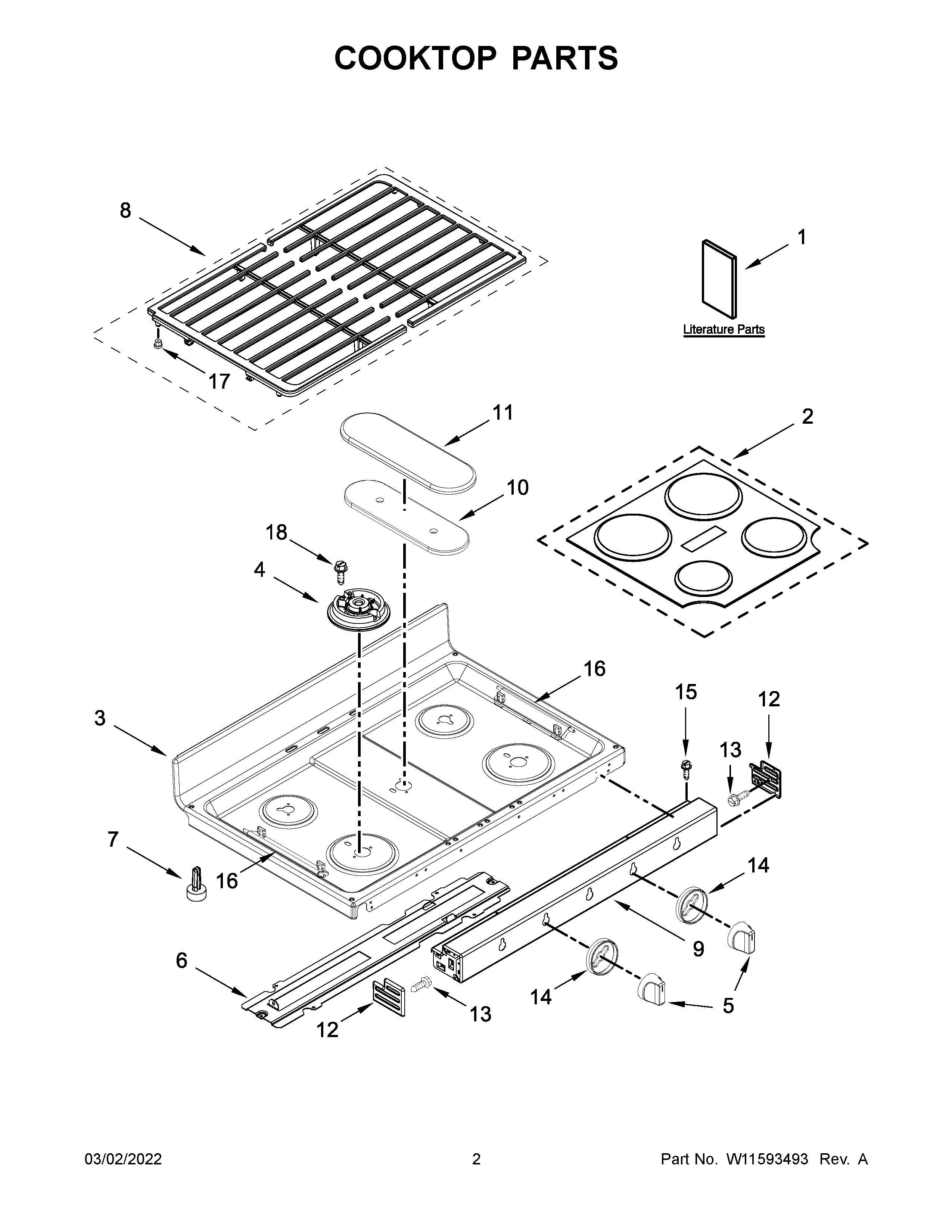

WGG745S0FE05 02 – COOKTOP PARTS

Products

Position	Product
NI	W11172428 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, CLIP, WIRE
NI	W11172531 Whirlpool Wire Harness
NI	W10745674 Whirlpool Wire Harness
NI	WASHER
NI	CLAMP, WIRE
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10408058 Whirlpool Wire Harness
1	OWNER'S MANUAL
1B	TECH SHEET
1A	QUICK START GUIDE
2	WPW10299236 Whirlpool Burner Cap
3A	W10878908 Whirlpool Cooktop Assembly
3	W10878907 Whirlpool Cooktop Assembly
4	WPW10406878 Whirlpool Burner Base (16K)
4C	WPW10336094 Whirlpool Burner Assembly Top
4B	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4A	WPW10406243 Whirlpool Burner Head Auxiliary 6K
5	W11188749 Whirlpool Control Knob
6	W10518258 Whirlpool Mounting Bracket
7	GLIDE, MAIN TOP
8	W11449099 Whirlpool Grate Kit
9	W10828392 Whirlpool Manifold Panel
9A	W10828396 Whirlpool Manifold Panel
9B	W10823297 Whirlpool Manifold Panel
10	WPW10333445 Whirlpool Burner Base
11	WPW10171140 Whirlpool Burner Cap
12	W10719582 Whirlpool Endcap Panel
12E	W10823299 Whirlpool Endcap Panel
12D	CAP, END (STAINLESS (LEFT))
12C	ENDCAP, MANIFOLD (WHITE (RIGHT))
12B	ENDCAP, MANIFOLD (WHITE (LEFT))
12A	W10719581 Whirlpool Panel End Cap
13	W10491985 Whirlpool Screw
14	W11188712 Whirlpool Knob Bezel
15A	SCREW (WHITE)
15	SCREW (BLACK)
15B	Screw
17	W10919249 Whirlpool Burner Grate Foot
18	WP3368921 Whirlpool Screw
