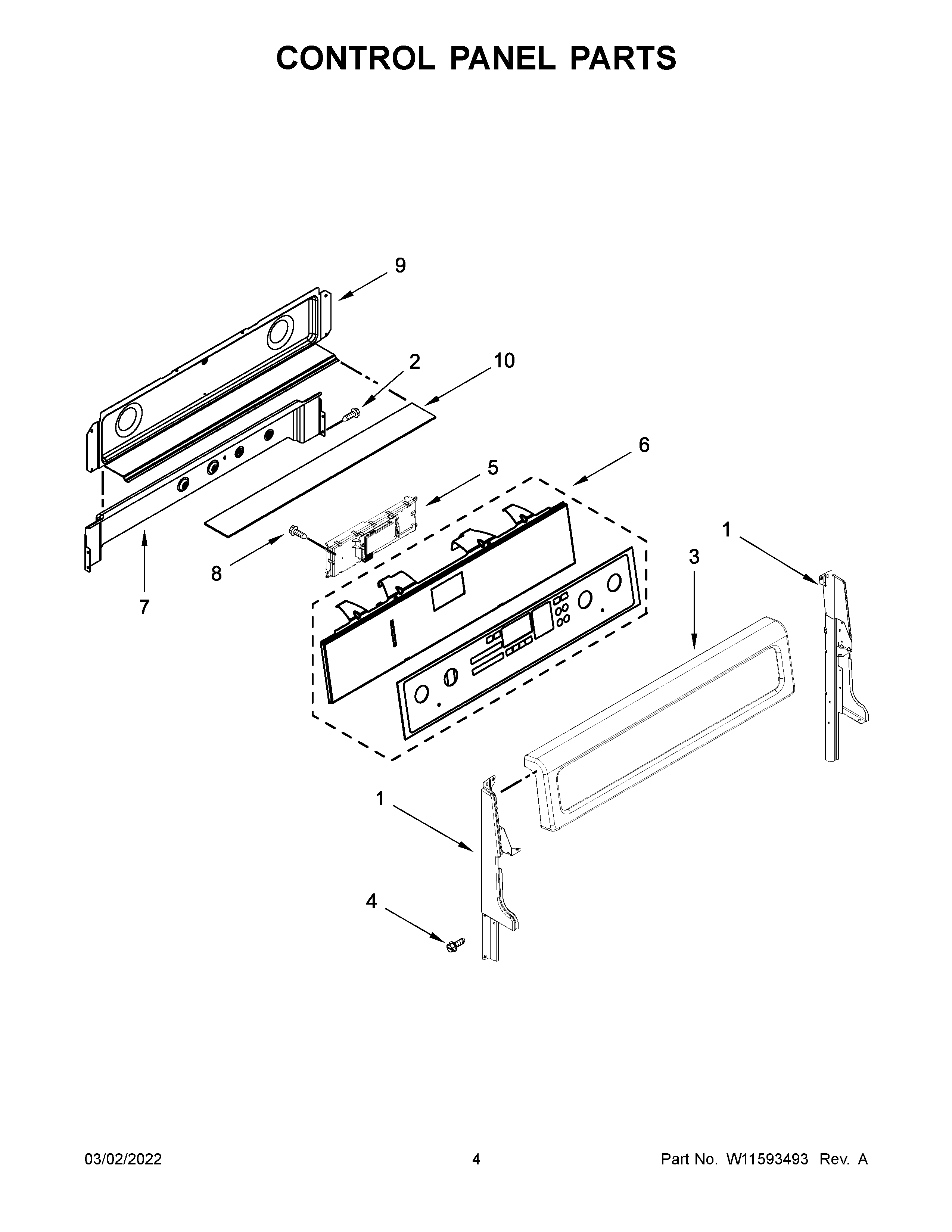

WGG745S0FE05 03 – CONTROL PANEL PARTS

WGG745S0FE05 03 – CONTROL PANEL PARTS

Written by

in

WGG745S0FE05 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CW10319112 Whirlpool Panel Endcap
1W10319109 Whirlpool Endcap Panel
1ASUPPORT, BACK GUARD (RIGHT HAND)
1BW10319110 Whirlpool Endcap Panel
2SCREW
3AWPW10318552 Whirlpool Control Panel
3BWPW10318550 Whirlpool Control Panel
3WPW10318551 Whirlpool Control Panel
4SCREW (BLACK)
4ASCREW (WHITE)
5W10878844 Whirlpool Electronic Control Board
6BW10879587 Whirlpool Dishwasher Membrane Switch
6AW10879584 Whirlpool Membrane Switch
6W10879583 Whirlpool Membrane Switch
7W10278697 Whirlpool Vent Shield Assembly
8SCREW
9W10776098 Whirlpool Rear Cover
10W11684874 Whirlpool Insulation
