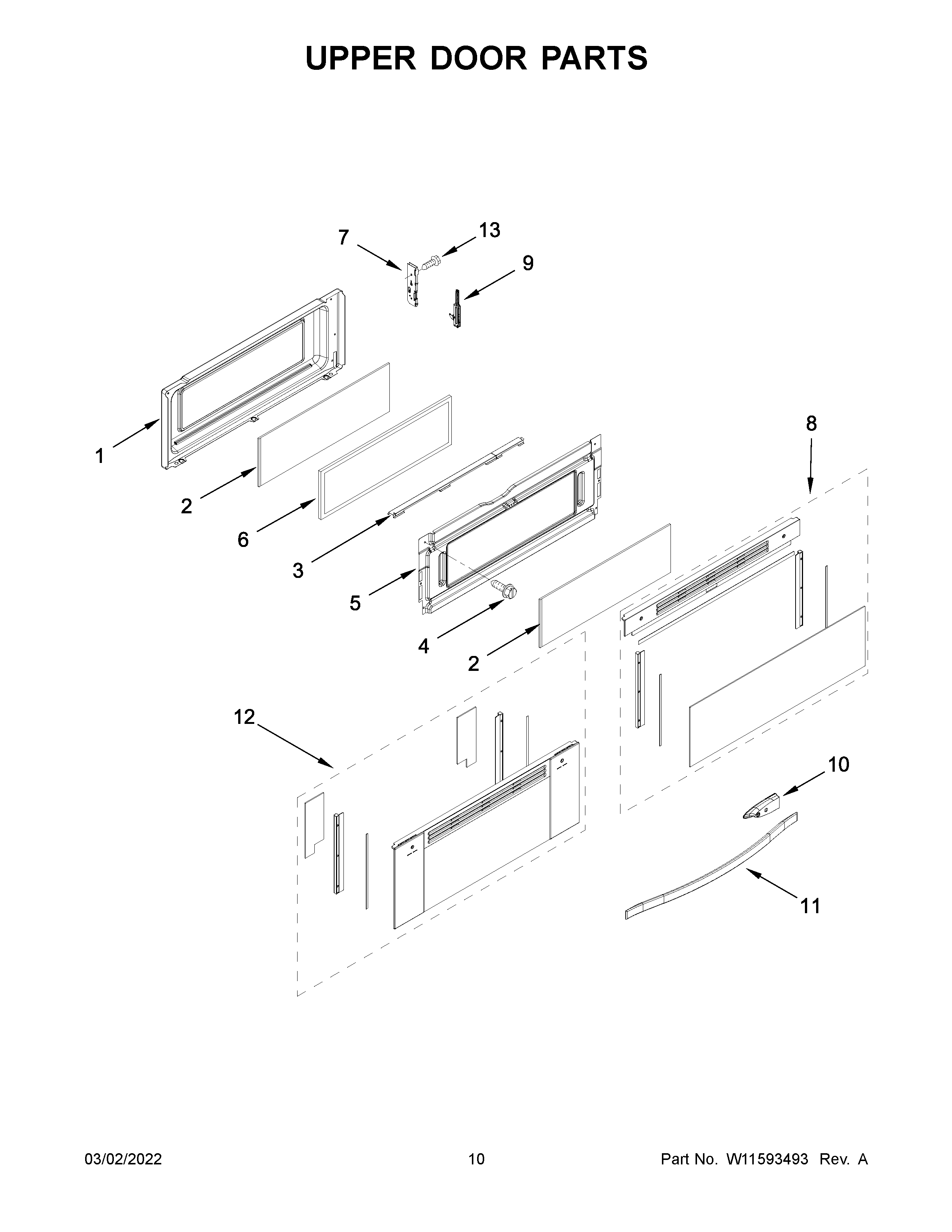

WGG745S0FE05 06 – UPPER DOOR PARTS

WGG745S0FE05 06 – UPPER DOOR PARTS

Written by

in

WGG745S0FE05 06 – UPPER DOOR PARTS

Products

PositionProduct
1W11051040 Whirlpool Door Liner
2W11132120 Whirlpool Glass Door
3WPW10272708 Whirlpool Window Frame
4WPW10292297 Whirlpool Screw
5W10485723 Whirlpool Retainer
6WPW10321271 Whirlpool Insulation Assembly
7W10647259 Whirlpool Hinge Receiver
8AW10677221 Whirlpool Door Glass
8W10677228 Whirlpool Door Glass
9AWPW10485732 Whirlpool Door Hinge
9WPW10485733 Whirlpool Door Hinge
10WPW10410341 Whirlpool Spacer
10AWPW10429492 Whirlpool Spacer
11WPW10618239 Whirlpool Door Handle
12W10878897 Whirlpool Door Glass
13W10777162 Whirlpool Screw
