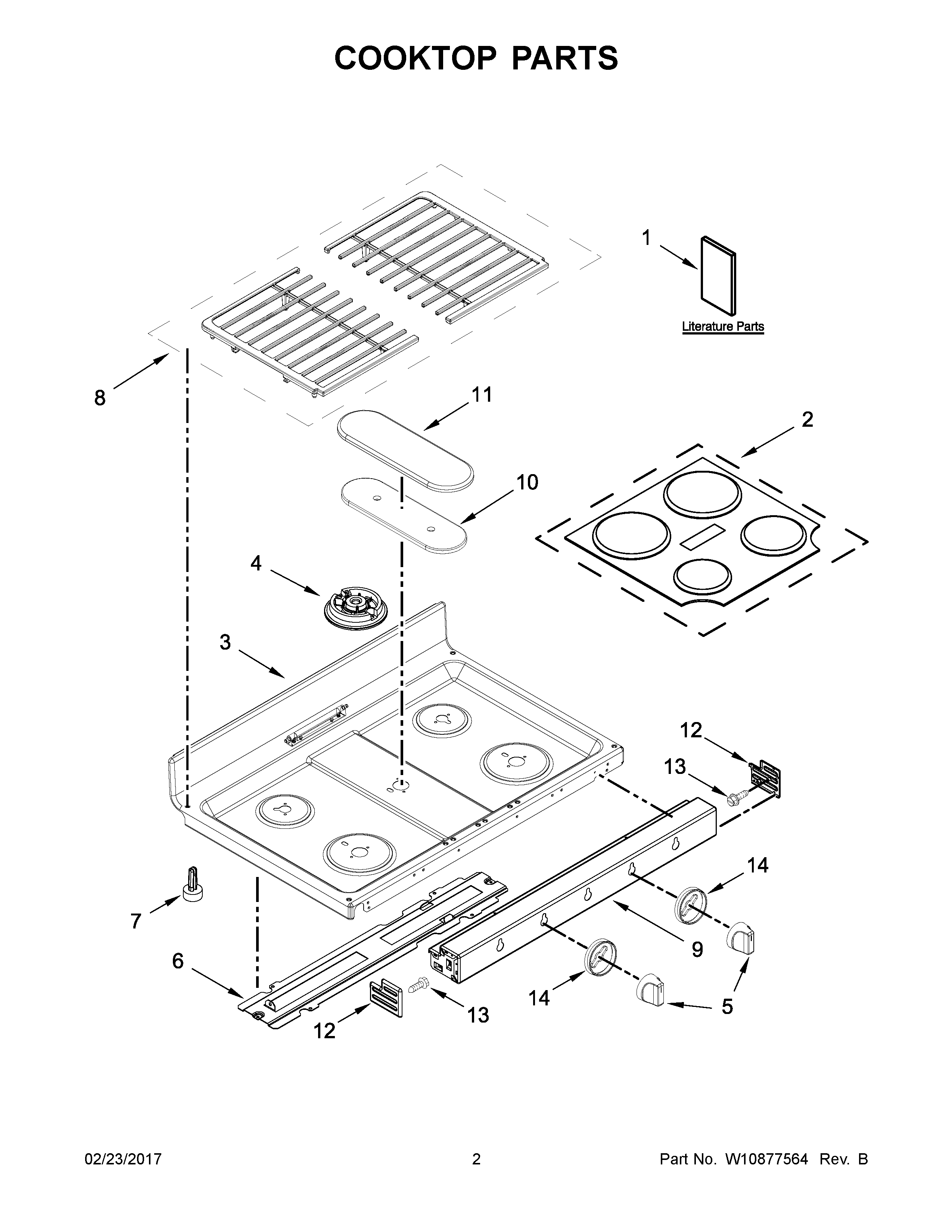

WGG745S0FH00 02 – COOKTOP PARTS

WGG745S0FH00 02 – COOKTOP PARTS

Written by

in

WGG745S0FH00 02 – COOKTOP PARTS

Products

PositionProduct
NIW10745674 Whirlpool Wire Harness
NIW11172428 Whirlpool Wire Harness
NIW11172531 Whirlpool Wire Harness
NIW10408058 Whirlpool Wire Harness
NICLAMP, WIRE
NICABINET (NOT A SERVICEABLE PART)
1CSAFER COOKING TIPS (ENGLISH
1DSafer Cooking Tips (French)
1GUIDE, USE & CARE
1AINSTRUCTIONS, INSTALLATION
1EINSERT, GRILL PAN
1BSHEET, TECH
2WPW10299236 Whirlpool Burner Cap
3W10878907 Whirlpool Cooktop Assembly
3AW10878908 Whirlpool Cooktop Assembly
4AWPW10406243 Whirlpool Burner Head Auxiliary 6K
4BWPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4WPW10406878 Whirlpool Burner Base (16K)
4CWPW10336094 Whirlpool Burner Assembly Top
5W11188749 Whirlpool Control Knob
6W10518258 Whirlpool Mounting Bracket
7GLIDE, MAIN TOP
8W11449099 Whirlpool Grate Kit
9AW10828396 Whirlpool Manifold Panel
9BW10823297 Whirlpool Manifold Panel
9W10828392 Whirlpool Manifold Panel
10WPW10333445 Whirlpool Burner Base
11WPW10171140 Whirlpool Burner Cap
12EW10823299 Whirlpool Endcap Panel
12DCAP, END (STAINLESS (LEFT))
12CENDCAP, MANIFOLD (WHITE (RIGHT))
12BENDCAP, MANIFOLD (WHITE (LEFT))
12AW10719581 Whirlpool Panel End Cap
12W10719582 Whirlpool Endcap Panel
13W10491985 Whirlpool Screw
14W11188712 Whirlpool Knob Bezel
