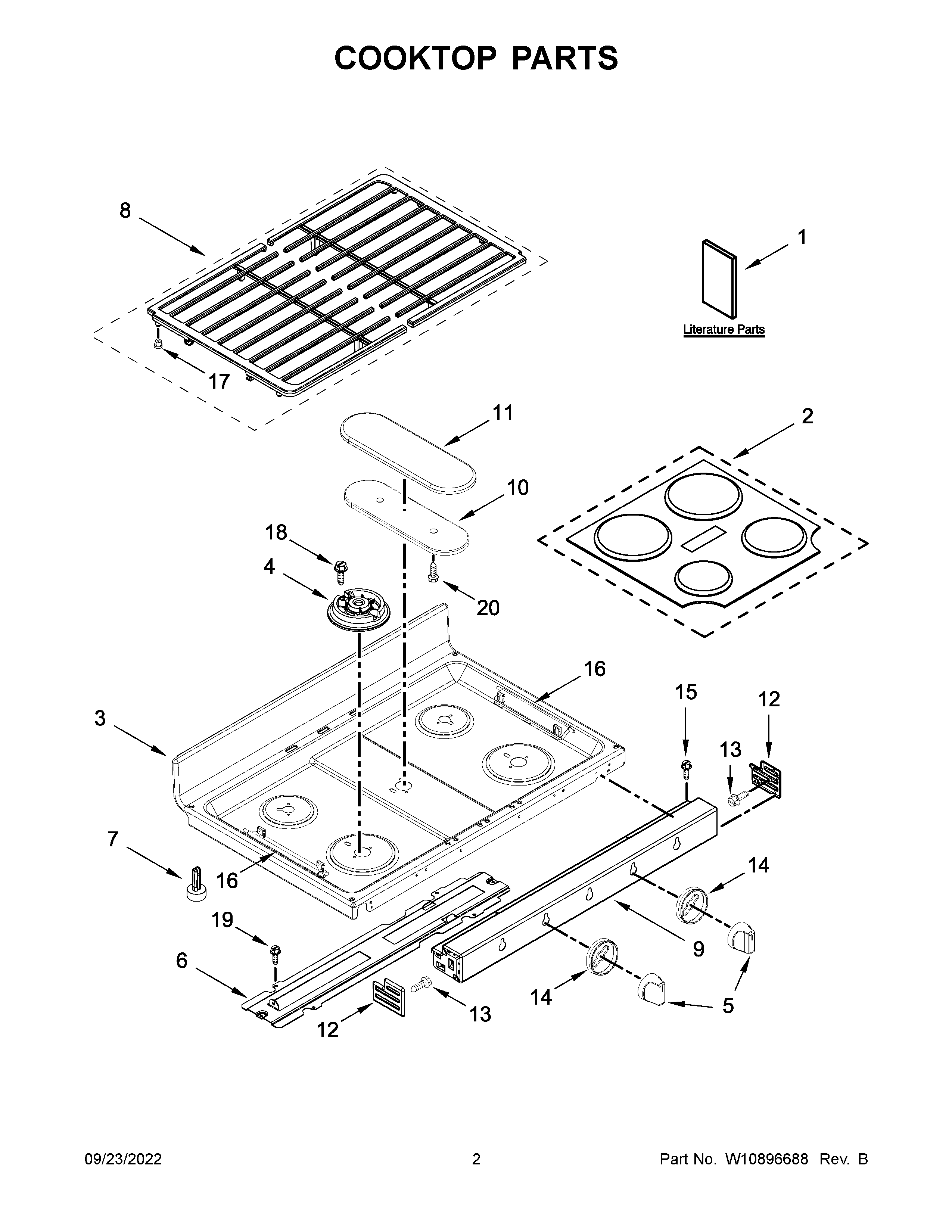

WGG745S0FH02 02 – COOKTOP PARTS

Products

Position	Product
NI	WIRING HARNESS PARTS, CLIP, WIRE
NI	WIRING HARNESS PARTS, SCREW, GROUND
NI	W10408058 Whirlpool Wire Harness
NI	W11172531 Whirlpool Wire Harness
NI	W11674161 Whirlpool Range Orifice Spud
NI	W10745674 Whirlpool Wire Harness
NI	W11172428 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	CLAMP, WIRE
NI	WASHER
1	USE & CARE GUIDE
1A	INSTALLATION INSTRUCTIONS
1B	SHEET, TECH
2	WPW10299236 Whirlpool Burner Cap
3A	W10878908 Whirlpool Cooktop Assembly
3	W10878907 Whirlpool Cooktop Assembly
4A	WPW10406243 Whirlpool Burner Head Auxiliary 6K
4	WPW10406878 Whirlpool Burner Base (16K)
4B	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4C	WPW10336094 Whirlpool Burner Assembly Top
5	W11188749 Whirlpool Control Knob
6	W10518258 Whirlpool Mounting Bracket
7	GLIDE, MAIN TOP
8	W11449099 Whirlpool Grate Kit
9B	W10823297 Whirlpool Manifold Panel
9	W10828392 Whirlpool Manifold Panel
9A	W10828396 Whirlpool Manifold Panel
10	WPW10333445 Whirlpool Burner Base
11	WPW10171140 Whirlpool Burner Cap
12E	W10823299 Whirlpool Endcap Panel
12D	CAP, END (STAINLESS (LEFT))
12C	ENDCAP, MANIFOLD (WHITE (RIGHT))
12B	ENDCAP, MANIFOLD (WHITE (LEFT))
12	W10719582 Whirlpool Endcap Panel
12A	W10719581 Whirlpool Panel End Cap
13	W10491985 Whirlpool Screw
14	W11188712 Whirlpool Knob Bezel
15B	Screw
15A	SCREW (WHITE)
15	SCREW (BLACK)
17	W10919249 Whirlpool Burner Grate Foot
18	WP3368921 Whirlpool Screw
19	Screw
20	WP4449154 Whirlpool Screw
