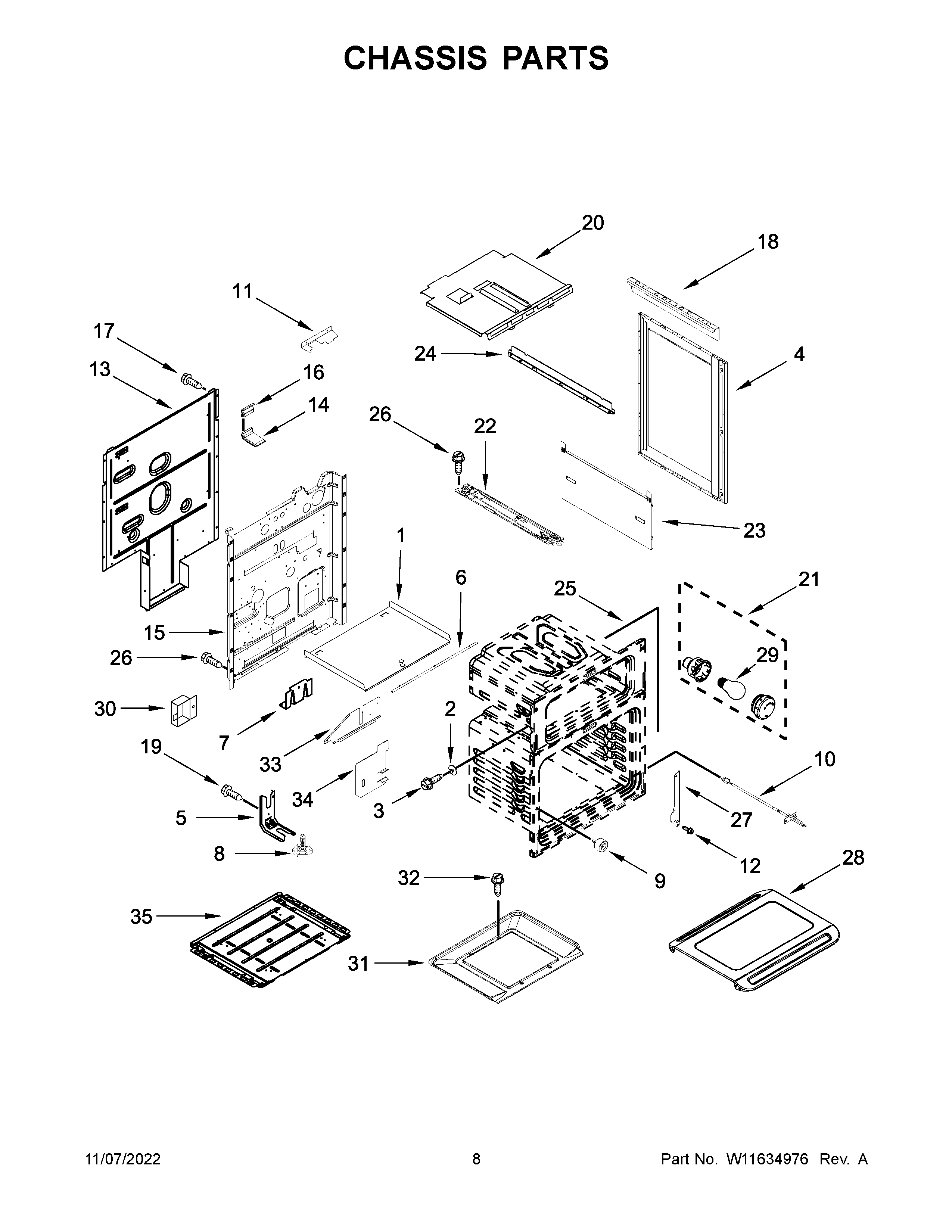

WGG745S0FH10 05 – CHASSIS PARTSadmin2025-04-26T11:07:26+00:00WGG745S0FH10 05 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | W11685611 Whirlpool Insulation |
| NI | W11688385 Whirlpool Insulation |
| NI | W11684769 Whirlpool Insulation |
| NI | W11688777 Whirlpool Insulation |
| NI | W11684919 Whirlpool Insulation |
| 1 | W10319038 Whirlpool Heat Shield |
| 2 | W11594028 Whirlpool Spacer Panel |
| 3 | WPW10267456 Whirlpool Screw |
| 4 | W11595910 Whirlpool Side Panel |
| 4A | PANEL, SIDE (WHITE) |
| 5 | BRACKET, ANTI TIP |
| 6 | W10319000 Whirlpool Oven Gasket Assembly |
| 7 | SUPPORT, LOWER OVEN |
| 8 | FOOT, LEVELER |
| 9 | W10105790 Whirlpool Bumper |
| 10 | SENSOR, OVEN |
| 11 | COVER, LOWER WIRE |
| 12 | WP4449743 Whirlpool Screw |
| 13 | WPW10261387 Whirlpool Wire Cover |
| 14A | W10272519 Whirlpool Oven Flue |
| 14 | W11243157 Whirlpool Oven Flue |
| 15 | W10668728 Whirlpool Rear Cover Assembly |
| 16A | W10321445 Whirlpool Oven Flue Assembly |
| 16 | W10321446 Whirlpool Oven Flue |
| 17 | Screw |
| 18 | W10319087 Whirlpool Support Bracket |
| 19 | SCREW, ANTI-TIP KIT |
| 20 | W10324643 Whirlpool Support |
| 21 | W11594027 Whirlpool Range Oven Light Socket |
| 22 | W11166856 Whirlpool Door Latch |
| 23 | SHIELD-SIDE INSULATION |
| 24 | W10357697 Whirlpool Spacer Panel |
| 25A | W11594140 Whirlpool Door Gasket |
| 25 | GASKET, OVEN DOOR (UPPER) |
| 26 | SCREW |
| 27 | W10410463 Whirlpool Cover Assembly |
| 27A | W10410461 Whirlpool Cover |
| 28 | WPW10272546 Whirlpool Broiler Pan |
| 29 | RANGE ONLY 40W 120V APPL BULB |
| 30 | 8285593 Whirlpool Oven Wire Cover |
| 31 | W10777398 Whirlpool Oven Bottom |
| 32 | WP12992902 Whirlpool Refrigerator Screw |
| 33 | COVER, INNER MAIN BACK |
| 34 | COVER, OUTER MAIN BACK |
| 35 | BASE, CHASSIS |
