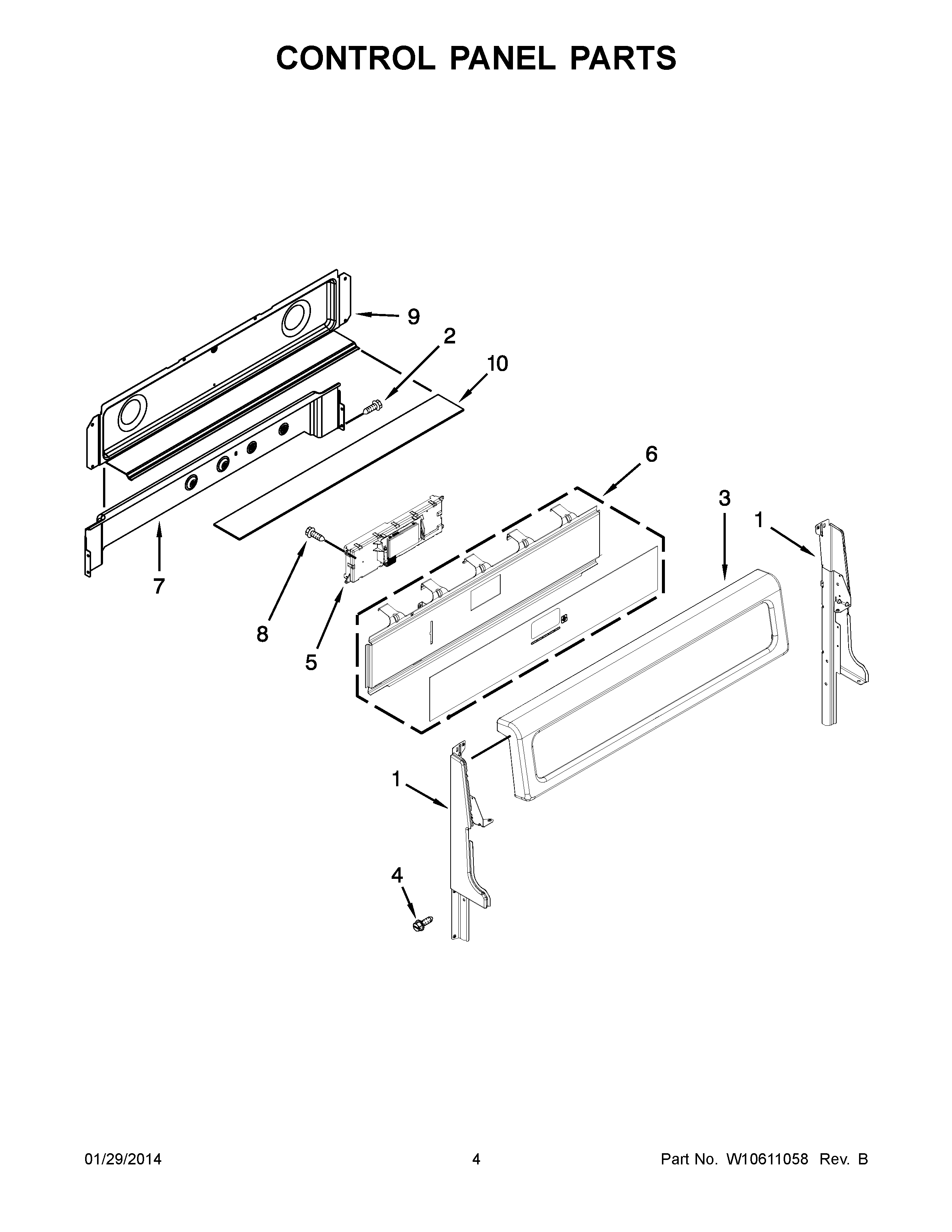

WGG755S0BE00 03 – CONTROL PANEL PARTS

WGG755S0BE00 03 – CONTROL PANEL PARTS

Written by

in

WGG755S0BE00 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W10319112 Whirlpool Panel Endcap
1W10319109 Whirlpool Endcap Panel
1SUPPORT, BACK GUARD (RIGHT HAND)
1W10319110 Whirlpool Endcap Panel
2SCREW
3WPW10318552 Whirlpool Control Panel
3WPW10318551 Whirlpool Control Panel
3WPW10318550 Whirlpool Control Panel
4SCREW (BLACK)
5WPW10539964-includeCORE Whirlpool WPW10539964 Washer Electronic Control Board + Core
6W10528787 Whirlpool Membrane Switch
6W10528788 Whirlpool Dishwasher Membrane Switch
7W10278697 Whirlpool Vent Shield Assembly
8SCREW
9W10296773 Whirlpool Rear Cover
10W11684874 Whirlpool Insulation
