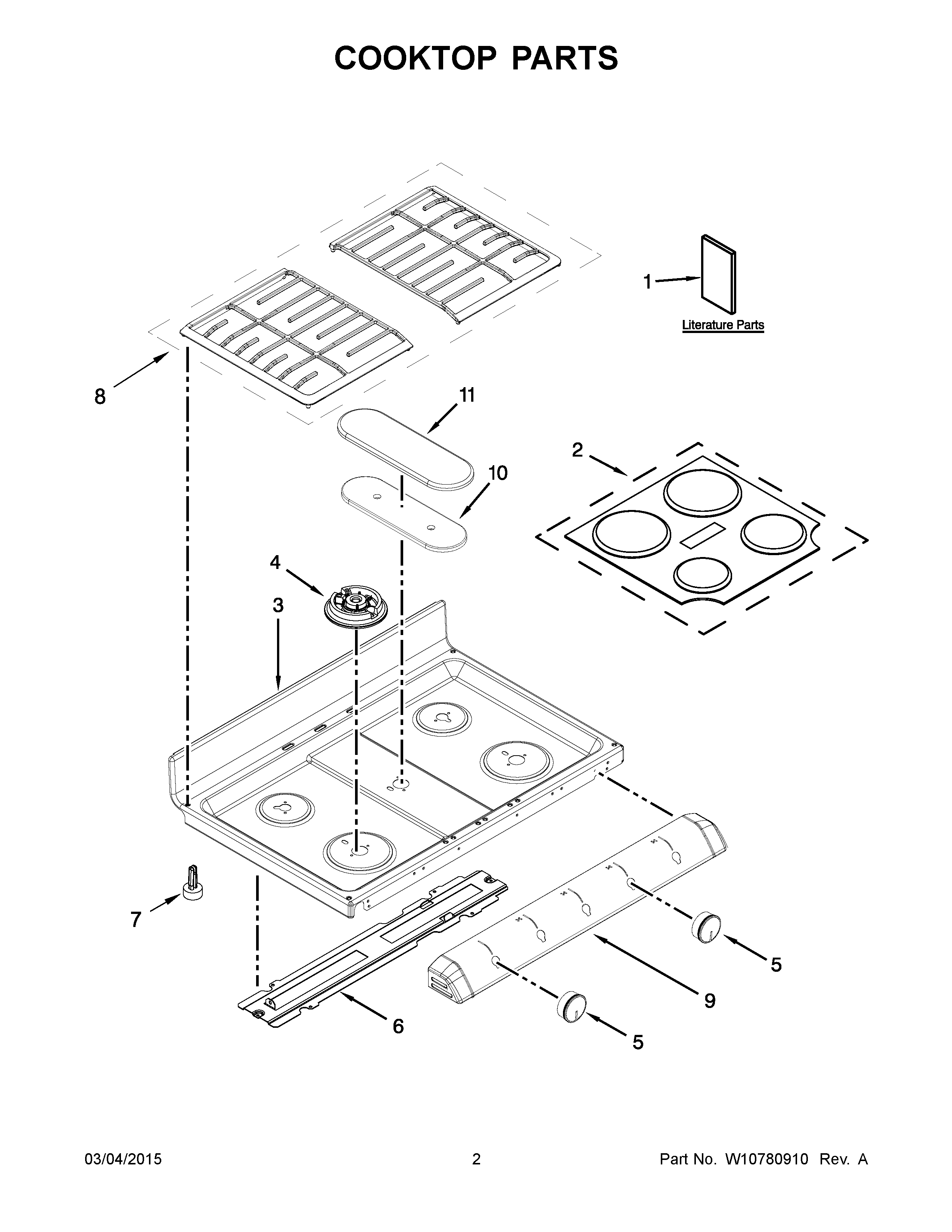

WGG755S0BE03 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11157775 Whirlpool Wire Harness
NI	W10408058 Whirlpool Wire Harness
NI	W10225701 Whirlpool Sensor Wire Harness
NI	W10683007 Whirlpool Wire Harness
NI	CLAMP, WIRE
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
1C	SAFER COOKING TIPS (ENGLISH
1B	SHEET, TECH
1D	Safer Cooking Tips (French)
2A	W10299239 Whirlpool Mounting Kit 4V Stamp Westone
2	WPW10299233 Whirlpool Burner Cap
3A	W10336331 Whirlpool Cooktop
3	W10336330 Whirlpool Cooktop
4A	WPW10406243 Whirlpool Burner Head Auxiliary 6K
4C	WPW10336094 Whirlpool Burner Assembly Top
4	WPW10406878 Whirlpool Burner Base (16K)
4B	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
5	WPW10506367 Whirlpool Knob
6	W10518258 Whirlpool Mounting Bracket
7	GLIDE, MAIN TOP
8A	W10338215 Whirlpool Grate Kit
8	WPW10338214 Whirlpool Grate Kit
9	W10554311 Whirlpool Manifold Panel
9A	W10554310 Whirlpool Panel Manifold
9B	PANEL, MANIFOLD (STAINLESS)
10	WPW10333445 Whirlpool Burner Base
11A	W10171137 Whirlpool Burner Cap
11	WPW10171140 Whirlpool Burner Cap
