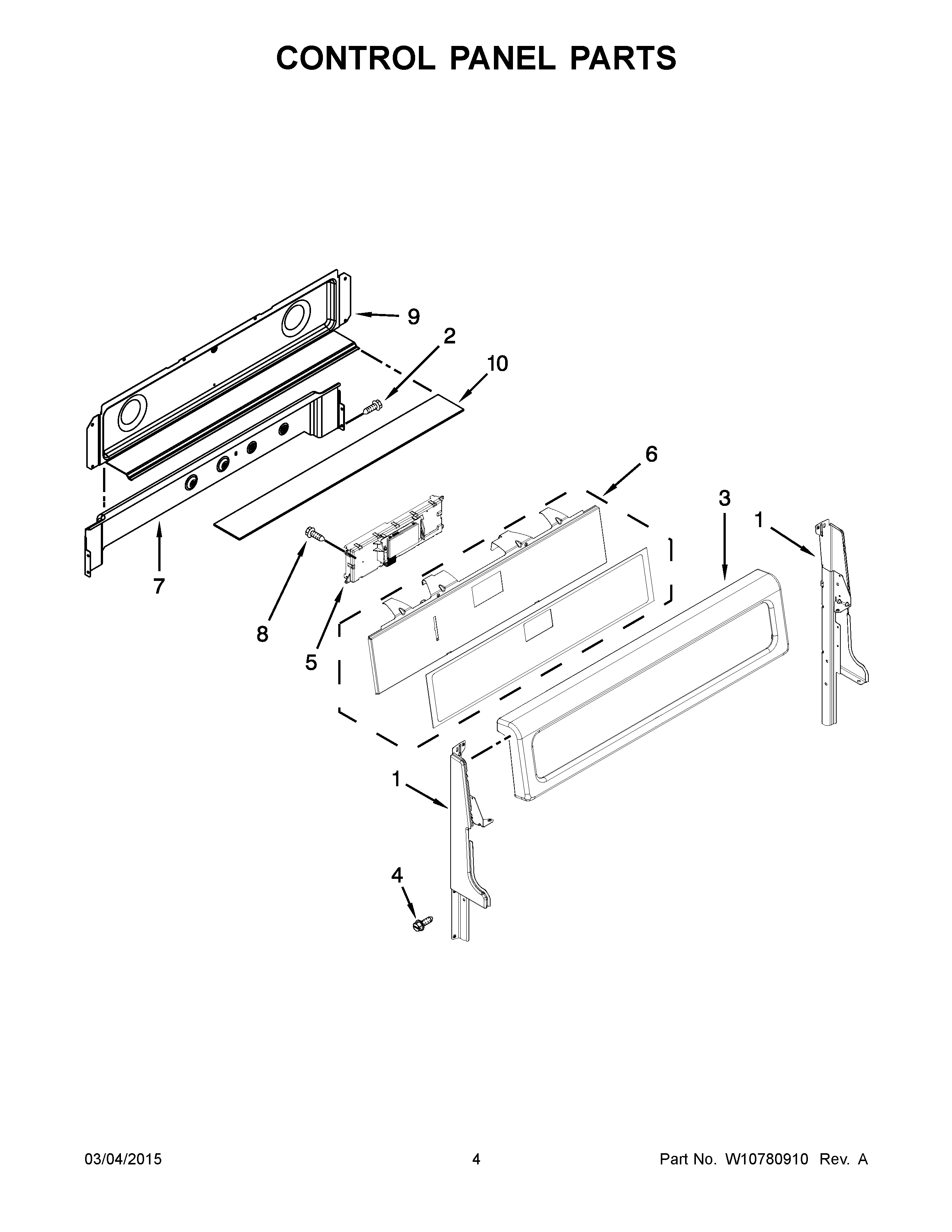

WGG755S0BE03 03 – CONTROL PANEL PARTS

WGG755S0BE03 03 – CONTROL PANEL PARTS

Written by

in

WGG755S0BE03 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W10319109 Whirlpool Endcap Panel
1BSUPPORT, BACK GUARD (RIGHT HAND)
1CW10319112 Whirlpool Panel Endcap
1AW10319110 Whirlpool Endcap Panel
2SCREW
3BWPW10318550 Whirlpool Control Panel
3WPW10318551 Whirlpool Control Panel
3AWPW10318552 Whirlpool Control Panel
4SCREW (BLACK)
5W10877017 Whirlpool Electronic Control Board
6W10528787 Whirlpool Membrane Switch
6AW10528788 Whirlpool Dishwasher Membrane Switch
7W10278697 Whirlpool Vent Shield Assembly
8SCREW
9W10776098 Whirlpool Rear Cover
10W11684874 Whirlpool Insulation
