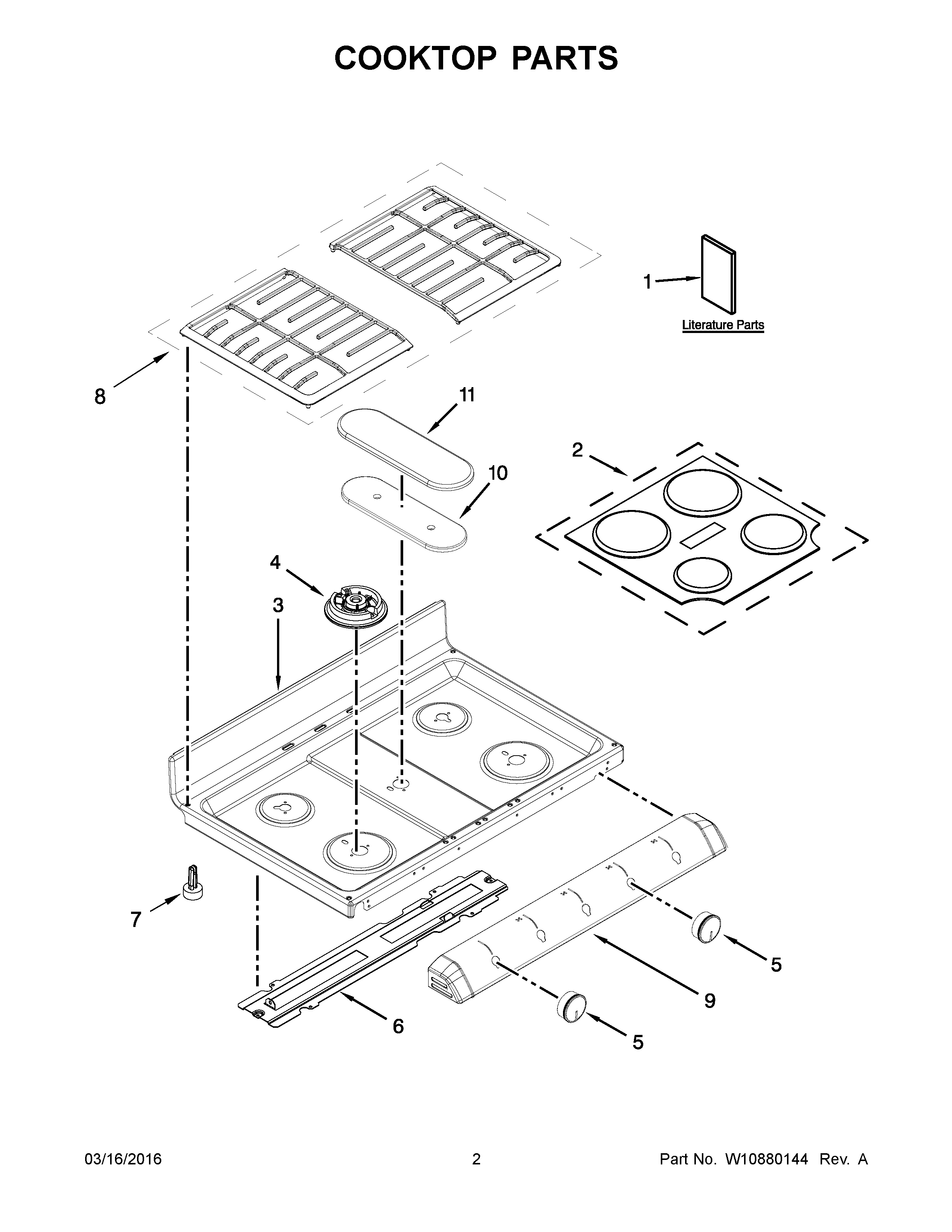

WGG755S0BE06 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10745687 Whirlpool Wire Harness Assembly
NI	W11172531 Whirlpool Wire Harness
NI	W11157775 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, CLIP, WIRE
NI	W10408058 Whirlpool Wire Harness
NI	CLAMP, WIRE
1	GUIDE, USE & CARE
1B	SHEET, TECH
1A	INSTRUCTIONS, INSTALLATION
1C	SAFER COOKING TIPS (ENGLISH
1D	Safer Cooking Tips (French)
2	WPW10299233 Whirlpool Burner Cap
2A	W10299239 Whirlpool Mounting Kit 4V Stamp Westone
3	W10336330 Whirlpool Cooktop
3A	W10336331 Whirlpool Cooktop
4	WPW10406878 Whirlpool Burner Base (16K)
4A	WPW10406243 Whirlpool Burner Head Auxiliary 6K
4C	WPW10336094 Whirlpool Burner Assembly Top
4B	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
5	WPW10506367 Whirlpool Knob
6	W10518258 Whirlpool Mounting Bracket
7	GLIDE, MAIN TOP
8A	W10338215 Whirlpool Grate Kit
8	WPW10338214 Whirlpool Grate Kit
9	W10554311 Whirlpool Manifold Panel
9A	W10554310 Whirlpool Panel Manifold
9B	PANEL, MANIFOLD (STAINLESS)
10	WPW10333445 Whirlpool Burner Base
11	WPW10171140 Whirlpool Burner Cap
11A	W10171137 Whirlpool Burner Cap
