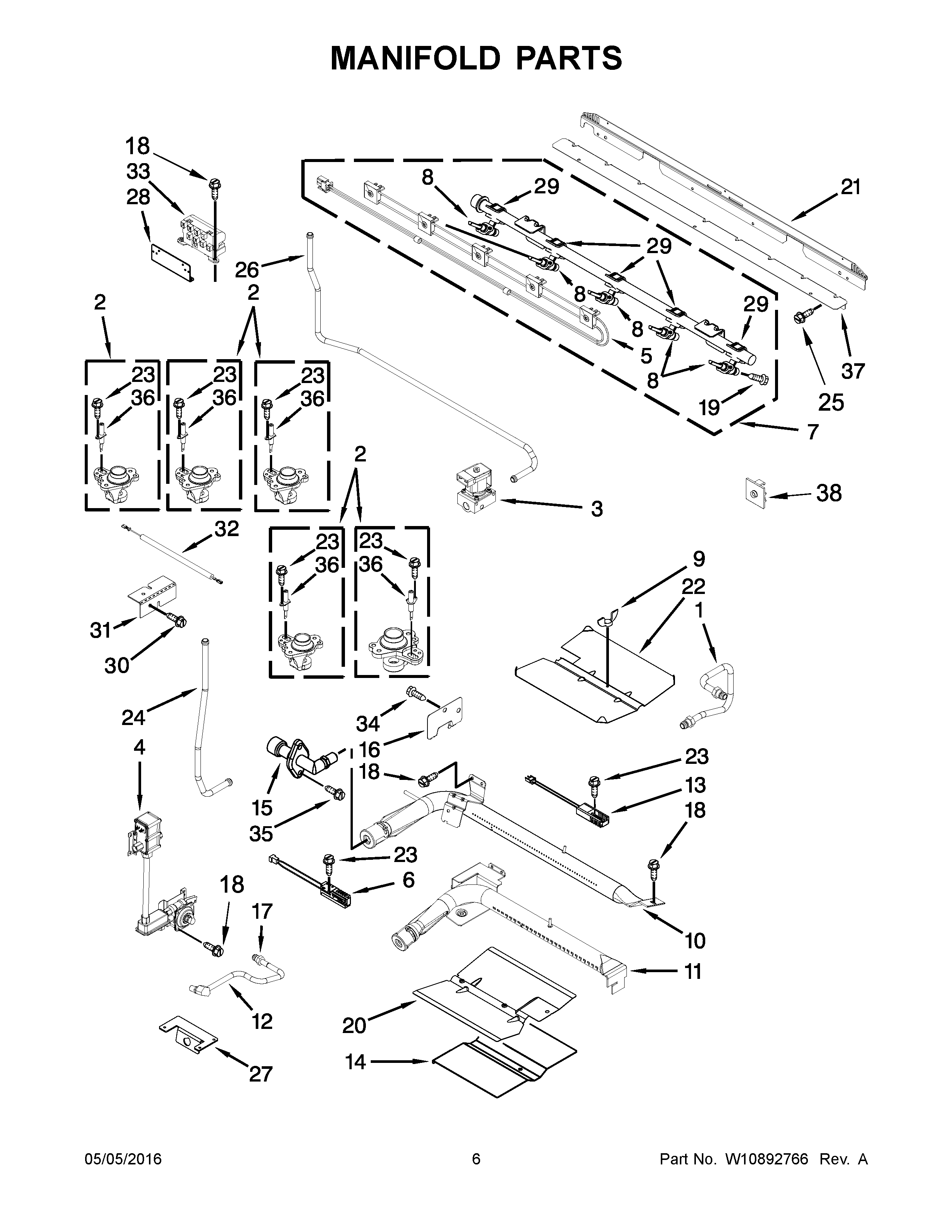

WGG755S0BS07 04 – MANIFOLD PARTS

Products

Position	Product
NI	W10324646 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11674161 Whirlpool Range Orifice Spud
1	W10319002 Whirlpool Gas Tubing
2B	W10638866 Whirlpool Orifice Holder
2D	W10638859 Whirlpool Orifice Holder
2A	W10638851 Whirlpool Orifice Holder
2C	W10638853 Whirlpool Orifice Holder
2	W10638882 Whirlpool Orifice Holder
3	W10911971 Whirlpool Solenoid Valve
4	WPW10546238 Whirlpool Gas Valve
5	WPW10204718 Whirlpool Wire Harness
6	WPW10324738 Whirlpool Oven Igniter
7	WPW10204705 Whirlpool Manifold Assembly
8B	WPW10298678 Whirlpool Burner Valve
8A	VALVE-BRNR
8	WPW10206288 Whirlpool Valve Burner
9	NUT, WING
10	W11245221 Whirlpool Broiler Burner
11	W11174122 Whirlpool Oven Burner
12A	W10342661 Whirlpool Gas Tubing
12	W10342662 Whirlpool Gas Tubing
13	IGNITOR, BAKE
14	W10298865 Whirlpool Heat Shield Assembly
15	W10292293 Whirlpool Fitting
16	COVER, IGNITOR WIRE
17	NUT, MOUNTING
18	SCREW
19	98017517 Whirlpool Oven Screw
20	W10272528 Whirlpool Burner Baffle
21	WPW10276470 Whirlpool Dishwasher Support Bracket
22	BAFFLE, BROIL BURNER
23	WP8273062 Whirlpool Screw
24	W10524331 Whirlpool Gas Tubing
25	SCREW
26	W10295055 Whirlpool Gas Tubing
27	BRACKET, ORIFICE
28	W10319059 Whirlpool Support Bracket
29	98017516 Whirlpool Mounting Bracket
30	W10217535 Whirlpool Screw
31	W10324366 Whirlpool Shield
32	W10636384 Whirlpool Extension
33	MODULE, SPARK
34	SCREW
35	SCREW
36A	W10637673 Whirlpool Surface Igniter
36	W11208293 Whirlpool Surface Igniter
37	WPW10276466 Whirlpool Support Bracket
38	W10631502 Whirlpool Grommet
