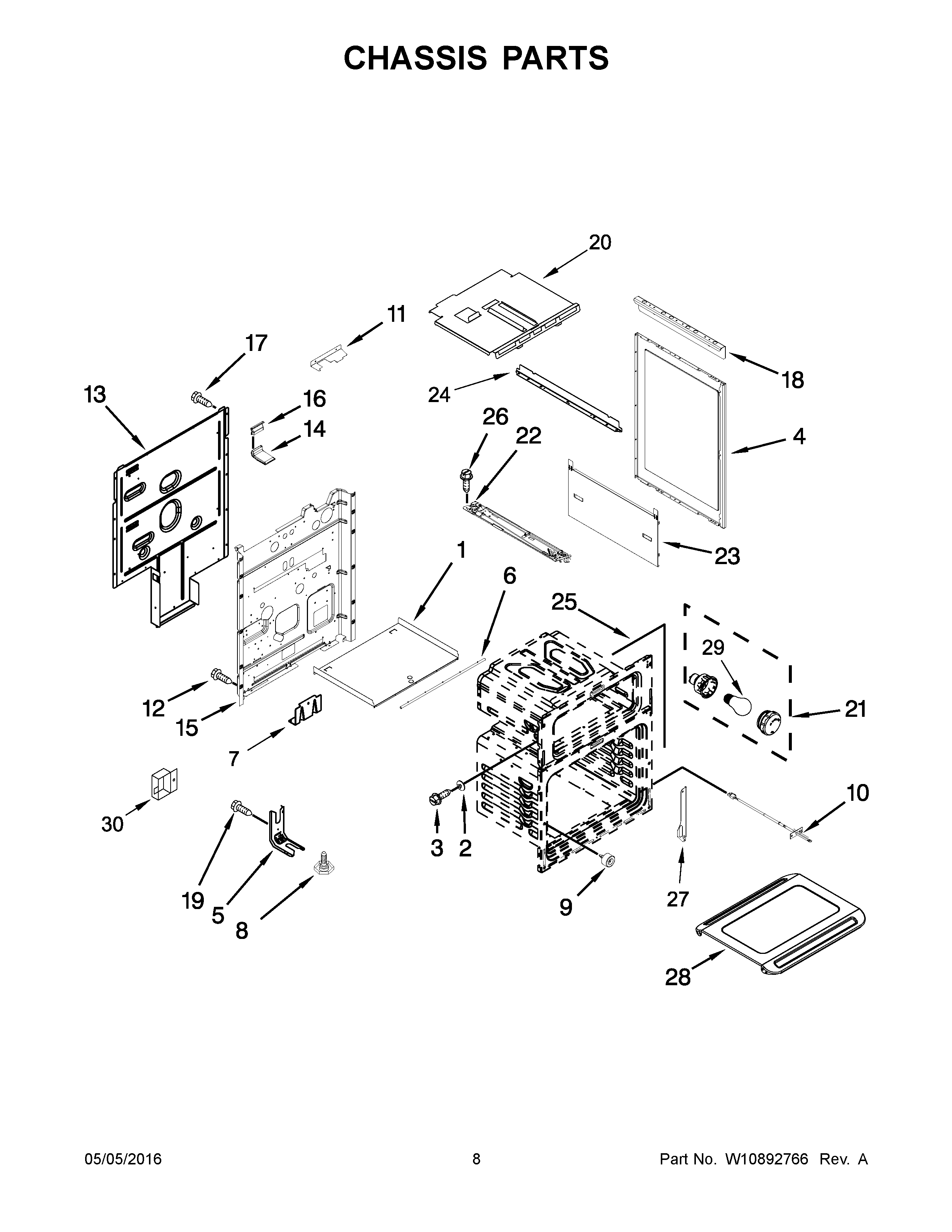

WGG755S0BS07 05 – CHASSIS PARTS

Products

Position	Product
NI	W11688777 Whirlpool Insulation
NI	W11688385 Whirlpool Insulation
NI	W11685611 Whirlpool Insulation
NI	W11684919 Whirlpool Insulation
NI	W11684769 Whirlpool Insulation
1	W10319038 Whirlpool Heat Shield
2	WPW10237689 Whirlpool Spacer Panel
3	WPW10267456 Whirlpool Screw
4A	WPW10330376 Whirlpool Side Panel
4	ASSEMBLY, SIDE PANEL (BLACK)
5	BRACKET, ANTI TIP
6	W10319000 Whirlpool Oven Gasket Assembly
7	W10260703 Whirlpool Support
8	FOOT, LEVELER
9	W10105790 Whirlpool Bumper
10	SENSOR, OVEN
11	COVER, LOWER WIRE
12	SCREW (BLACK)
13	WPW10261387 Whirlpool Wire Cover
14A	W10272519 Whirlpool Oven Flue
14	W11243157 Whirlpool Oven Flue
15	W10668728 Whirlpool Rear Cover Assembly
16A	W10321445 Whirlpool Oven Flue Assembly
16	W10321446 Whirlpool Oven Flue
17	Screw
18	W10319087 Whirlpool Support Bracket
19	SCREW, ANTI-TIP KIT
20	W10324643 Whirlpool Support
21	W11594027 Whirlpool Range Oven Light Socket
22	W11166856 Whirlpool Door Latch
23	SHIELD-SIDE INSULATION
24	W10357697 Whirlpool Spacer Panel
25	W10318928 Whirlpool Door Gasket
25A	WPW10269069 Whirlpool Door Gasket
26	SCREW
27A	W10410461 Whirlpool Cover
27	W10410463 Whirlpool Cover Assembly
28	WPW10272546 Whirlpool Broiler Pan
29	RANGE ONLY 40W 120V APPL BULB
30	8285593 Whirlpool Oven Wire Cover
