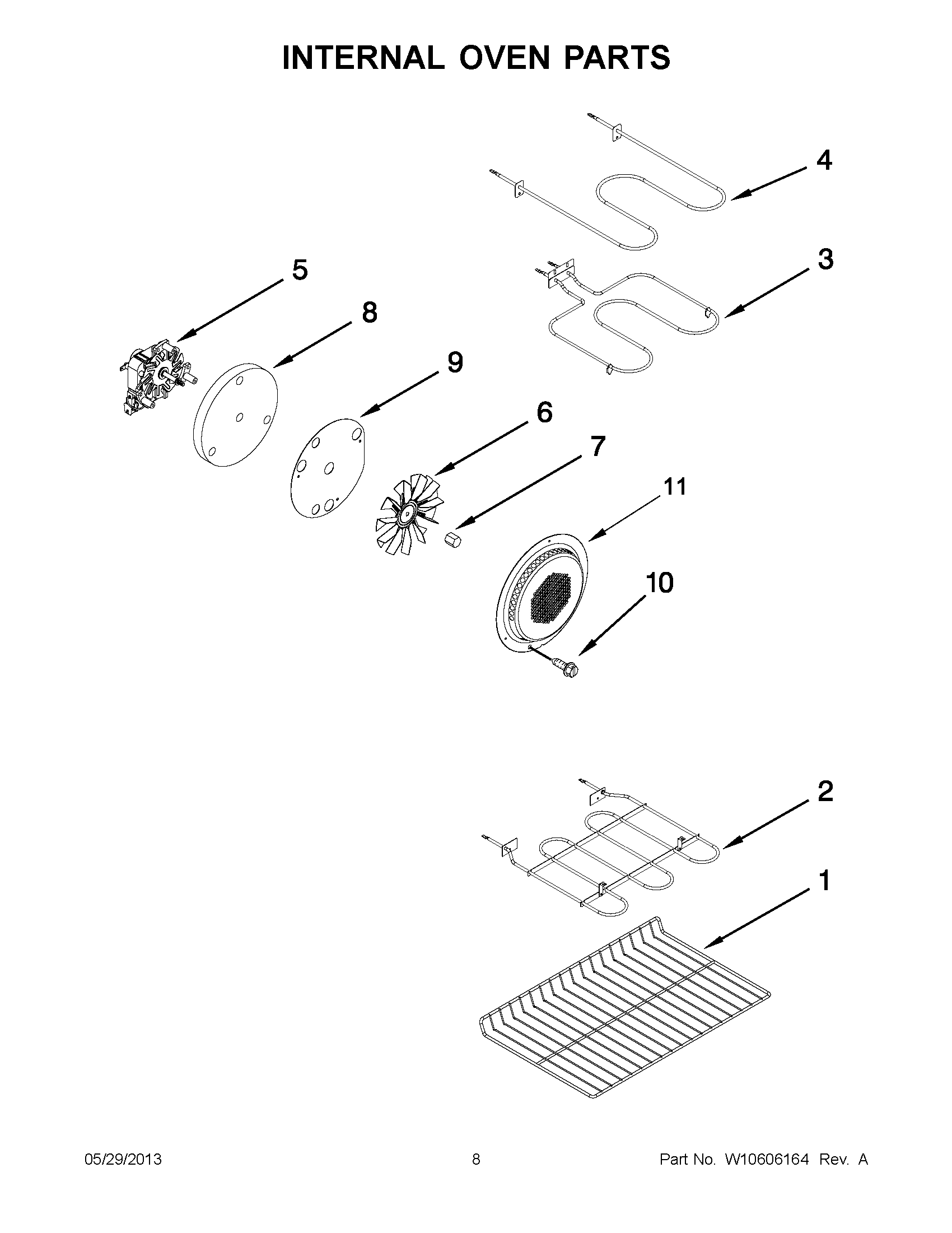

WGI925C0BS00 04 – INTERNAL OVEN PARTS

Products

PositionProduct
1WPW10179152 Whirlpool Rack Oven
2W11101534 Whirlpool Range Broil Element
3W11662148 Whirlpool Bake Element
4W11716849 Whirlpool Broil Element
5W11235883 Whirlpool Fan Motor
6W10758272 Whirlpool Convection Fan
7WPW10116349 Whirlpool Nut
8W10274268 Whirlpool Insulation
9W10339476 Whirlpool Bracket Mounting
10WP4449154 Whirlpool Screw
11WPW10160821 Whirlpool Fan Cover
