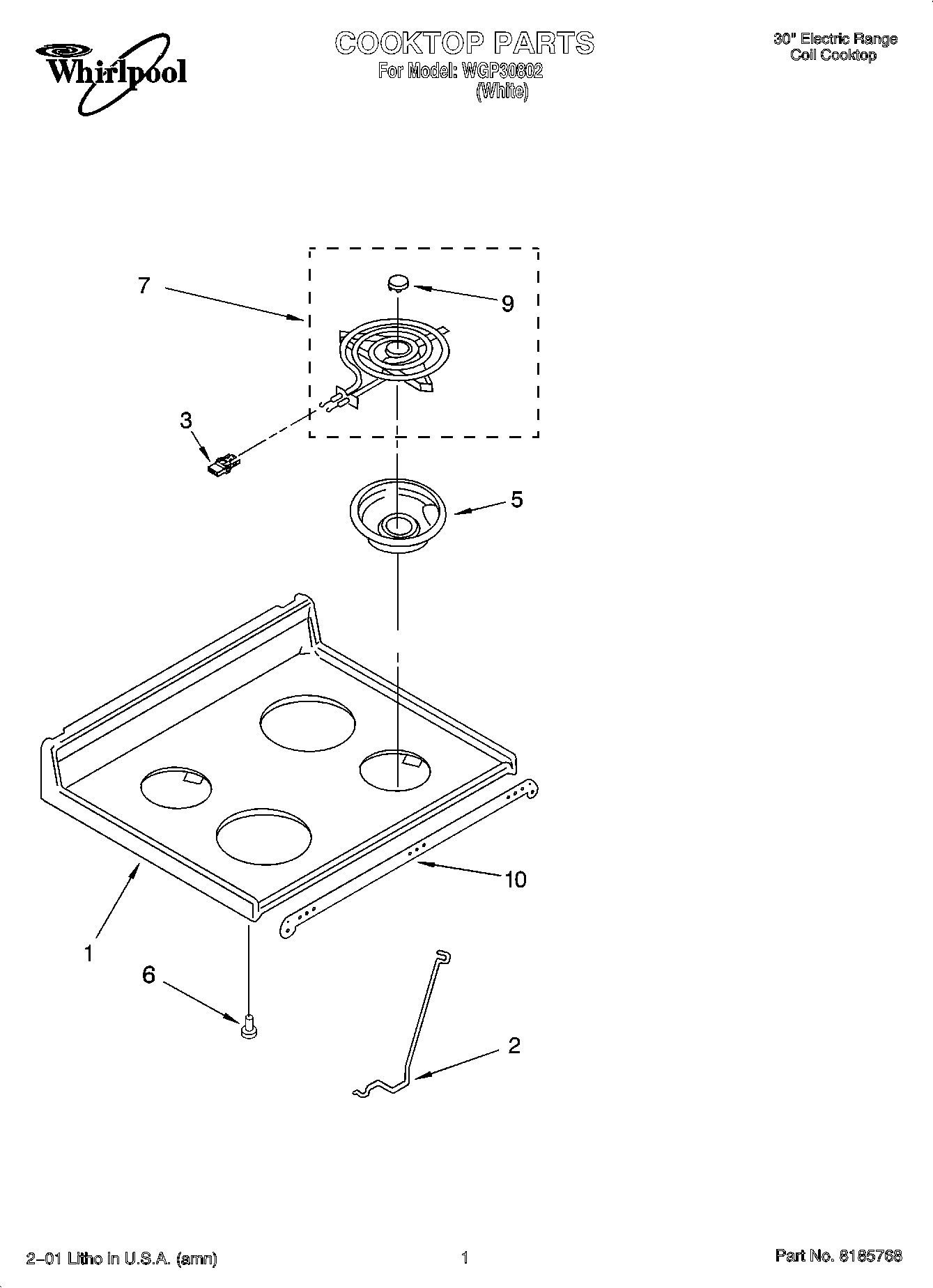

WGP30802 01 – COOKTOP PARTS

Written by

Products

Position	Product
1	Cooktop, Coil
2	Cooktop Rod
3	Receptacle, Clip
3	WP313808 Whirlpool Screw
5	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
5	WPW10290350 Whirlpool Stove Drip Bowl
6	238614 Whirlpool Bumper Hinge
7	Element, Surface (Coil, 8“ LF-RR)
7	Element, Surface (Coil, 6“ RF)
9	Medallion, (4)
10	Guard, Wire
10	Screw (2) 8 x 3/8
