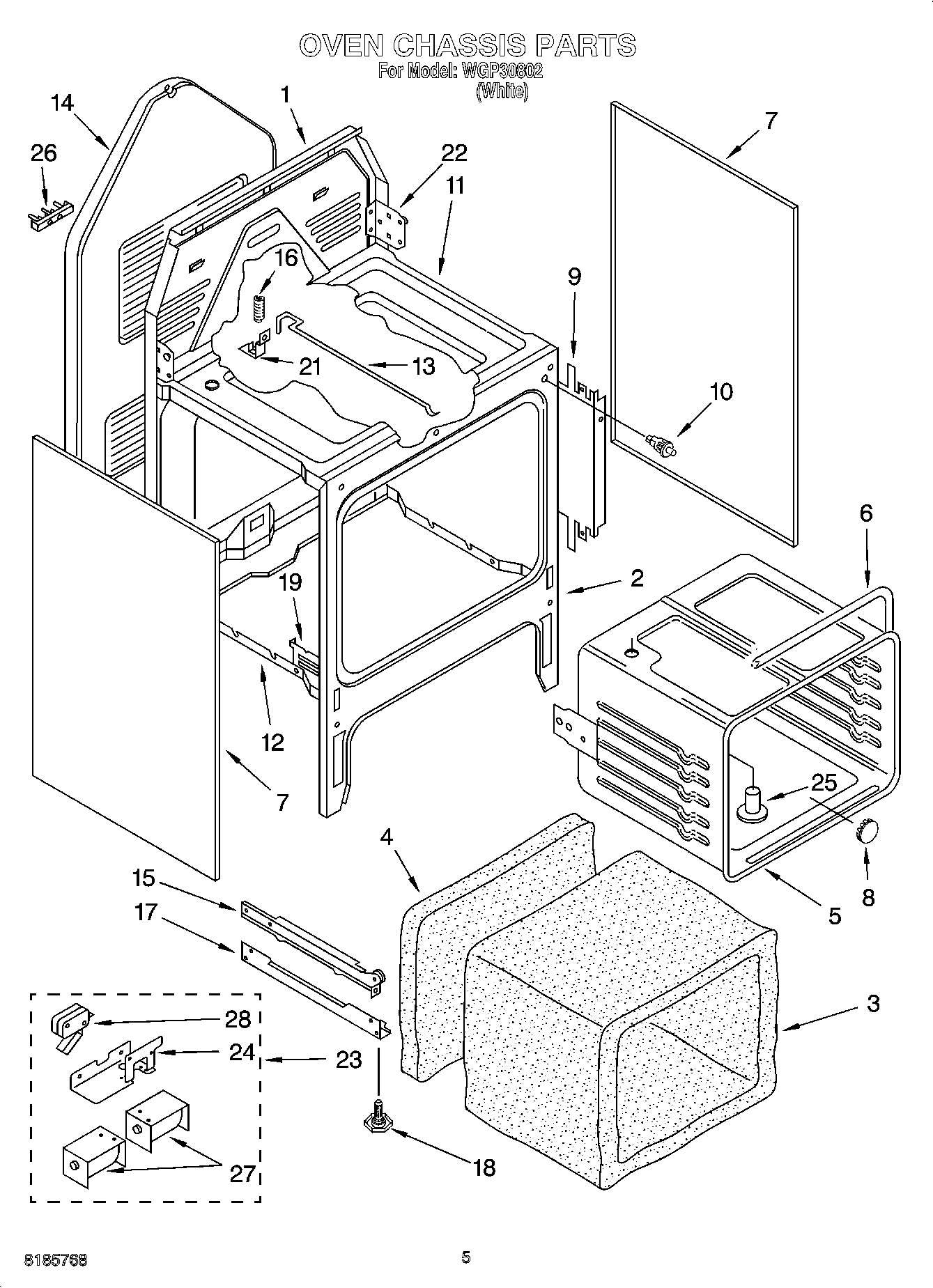

WGP30802 04 – OVEN CHASSIS PARTS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (White)
8	Button, Plug
9	Shield, Insulation
10	Door Switch (Oven Light)
11	Washer (3)
11	Burner Box
11	Screw, (2)
12	Oven Bottom
13	Rod, Lock
14	Panel, Rear
15	Rail, Drawer (Right)
15	Drawer Rail, Left
16	Spring, Door Lock
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Screw (4) 10 x 1/2
19	Hinge, Base L or R
21	Bracket, Spring
22	Hinge, Cktp.-Right
22	Hinge, Cktp.-Left
23	Oven Lock Assembly
24	WP4159387 Whirlpool Compactor Screw
24	Bracket, Lock
25	Vent Tube
26	Screw, (2) 10-16 x 1
26	WP8203546 Whirlpool Terminal Block
26	WP112432 Whirlpool Nut Assembly
27	Solenoid
27	Washer (2)
27	Screw (2) 10-32 x 5/16
28	Switch, Interlock
28	Nut (2)
28	Screw, (2)
