WGP30802 05 – OVEN PARTS, MISCELLANEOUS PARTS

WGP30802 05 – OVEN PARTS, MISCELLANEOUS PARTS

Written by

in

WGP30802 05 – OVEN PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI135785A
PT400 Whirlpool Range Power Cord
WPL 9781445
WPL 9751014
WPL 9751003
8212471 Whirlpool Oven Paint
WPL 9752771
WPL 9750744
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
WPL 9752848
WPL 9781291
WPL ARI135784A
WPL ARI135783A
WPL ARI135782A
WPL ARI135781A
WPL ARI135780A
WPL ARI135779A
WPL ARI135778A
WPL ARI135777A
Literature Parts (Guide, Use & Care)
WPL 9753254
WPL 9753253
Literature Parts (Wiring Diagram)
Literature Parts (Installation Instructions)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WA906B Whirlpool Cooktop Glass Scraper
FOIL, ALUMINUM OVEN (18“ X 25 )
WPL 799832
511873 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
SCREW
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPW10339879 Whirlpool Wire Tie
285006 Whirlpool Spray
242831 Whirlpool Oven Wire
Grease
Hanger, Cable
WPL LIT9752776

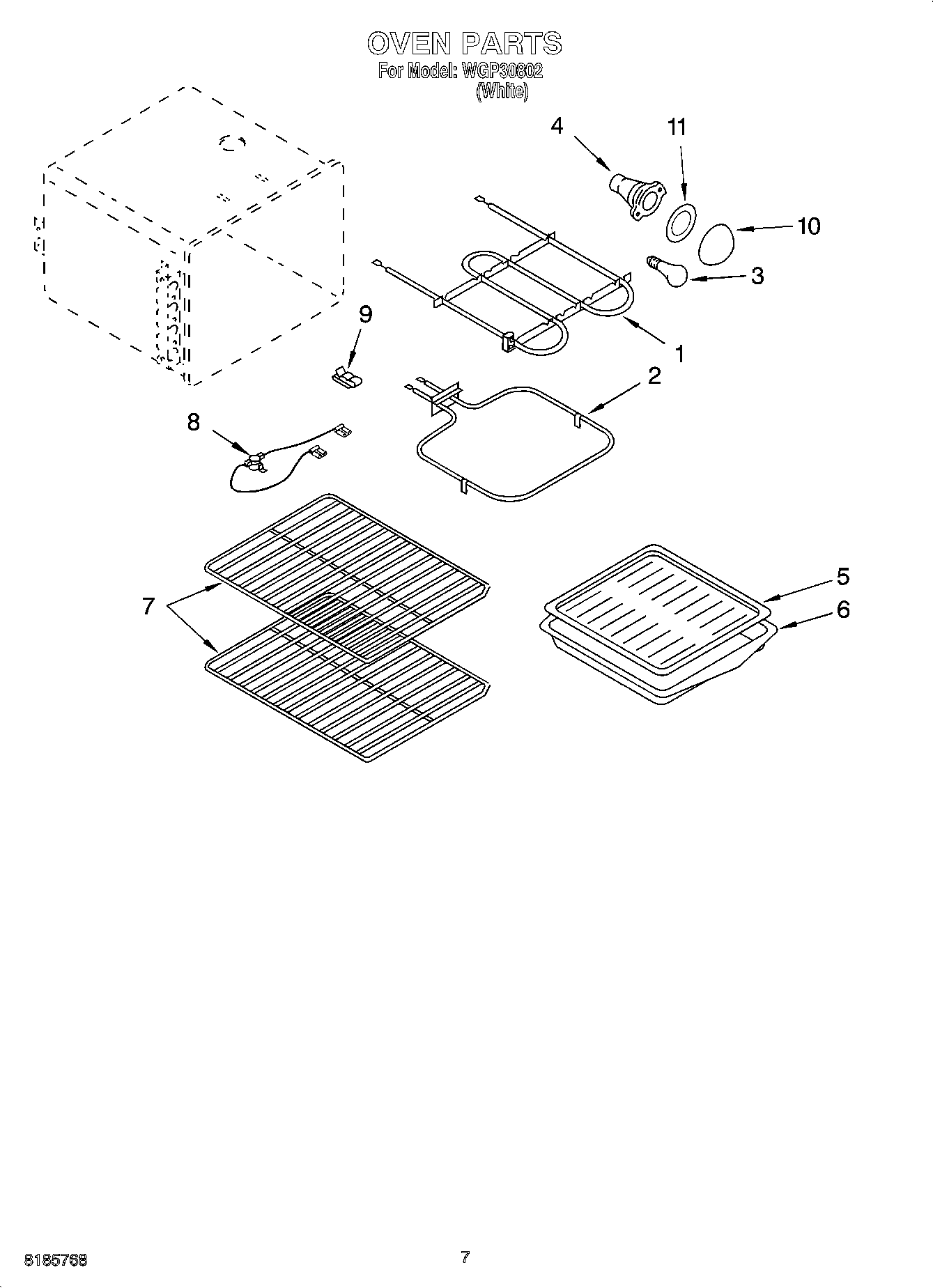

1Element, Broil
2Screw
2ELMNT-BAKE
2340184 Whirlpool Screw
3RANGE ONLY 40W 120V APPL BULB
4W11594027 Whirlpool Range Oven Light Socket
64396923 Whirlpool Broil Pan Set Gray Porcelain
7Rack, Standard
8Limit Switch, Saftey
998005642 Whirlpool Clip
10WP9781049 Whirlpool Light Lens
11WP3184533 Whirlpool Range Light Lens Gasket
