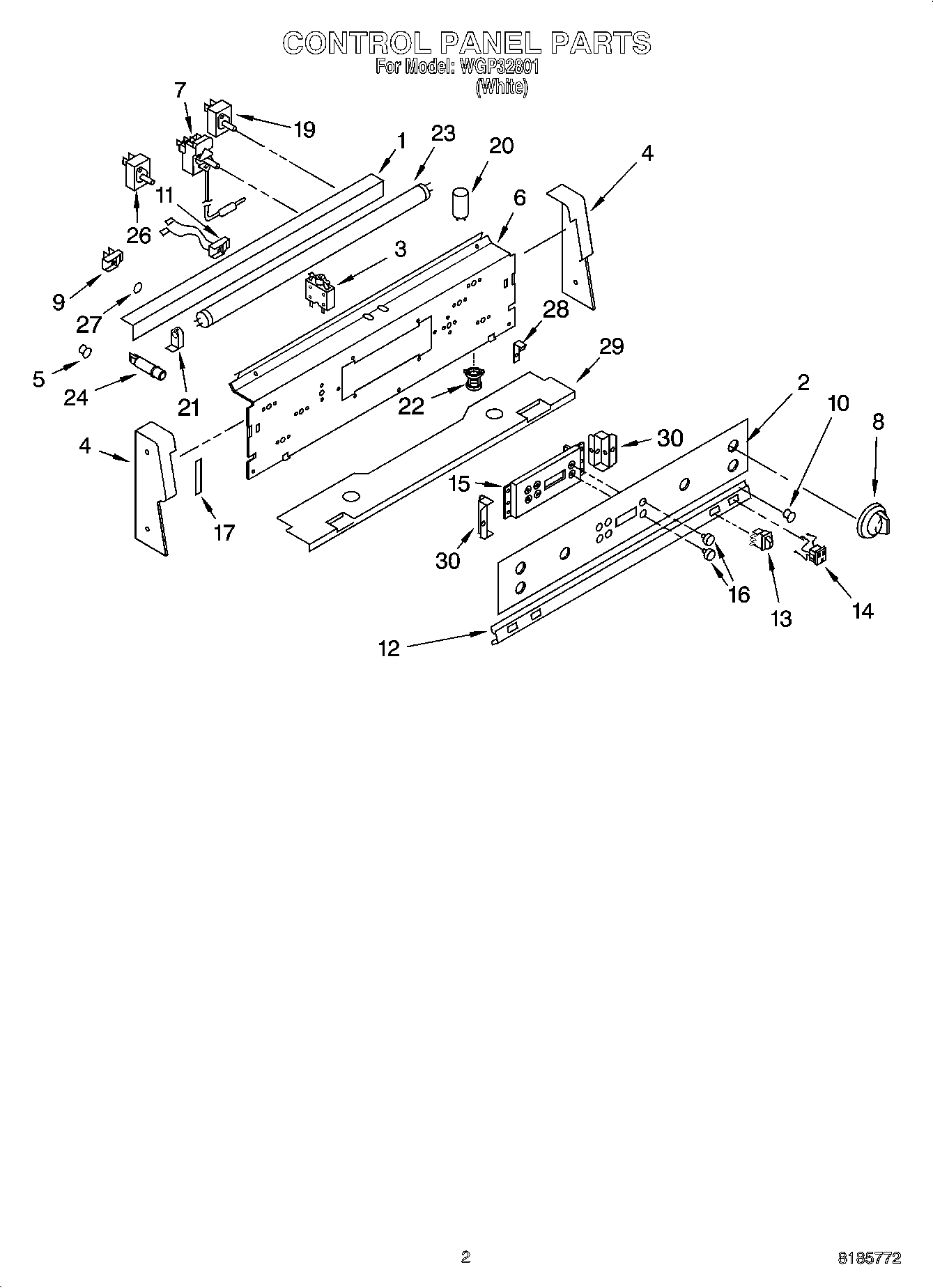

WGP32801 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Lamp Cover
2	Console-Glass (White)
3	Breaker, 15 Amp
4	End Cap (Right)
4	End Cap (Left)
5	Button Plug (8 mm (2))
6	Panel, Control
6	Panel, Control (Screw, (2) 8 x 3/8)
7	Thermostat
8	WP9752405FW Whirlpool Knob
9	Light, Indicator (Surface Unit (2))
10	Len`s Indicator (4)
11	Light Module (2)
12	Trim Strip
13	Switch, Oven Light (White)
14	Outlet, Untimed
15	Timer
15	Spacer, Timer
16	Knob, Timer (17) (White)
17	Insert (2) (White)
19	WP3400882 Whirlpool Screw
19	WP9750646 Whirlpool Infinite Switch
19	WP9750643 Whirlpool Infinite Switch
20	Starter, Light
21	Receptacle, Light
22	Starter, Holder
23	WP95292 Whirlpool Fluorescent Light Bulb
24	Light, Pilot
24	Seal, Pilot
26	W11245710 Whirlpool Refrigerator Screw
26	Switch, Selector
27	WP9750343 Whirlpool Light Lens
28	WPL 9753017
29	Base, Console
29	WP3400832 Whirlpool Screw
30	WPL 9753304
30	WP4159387 Whirlpool Compactor Screw
